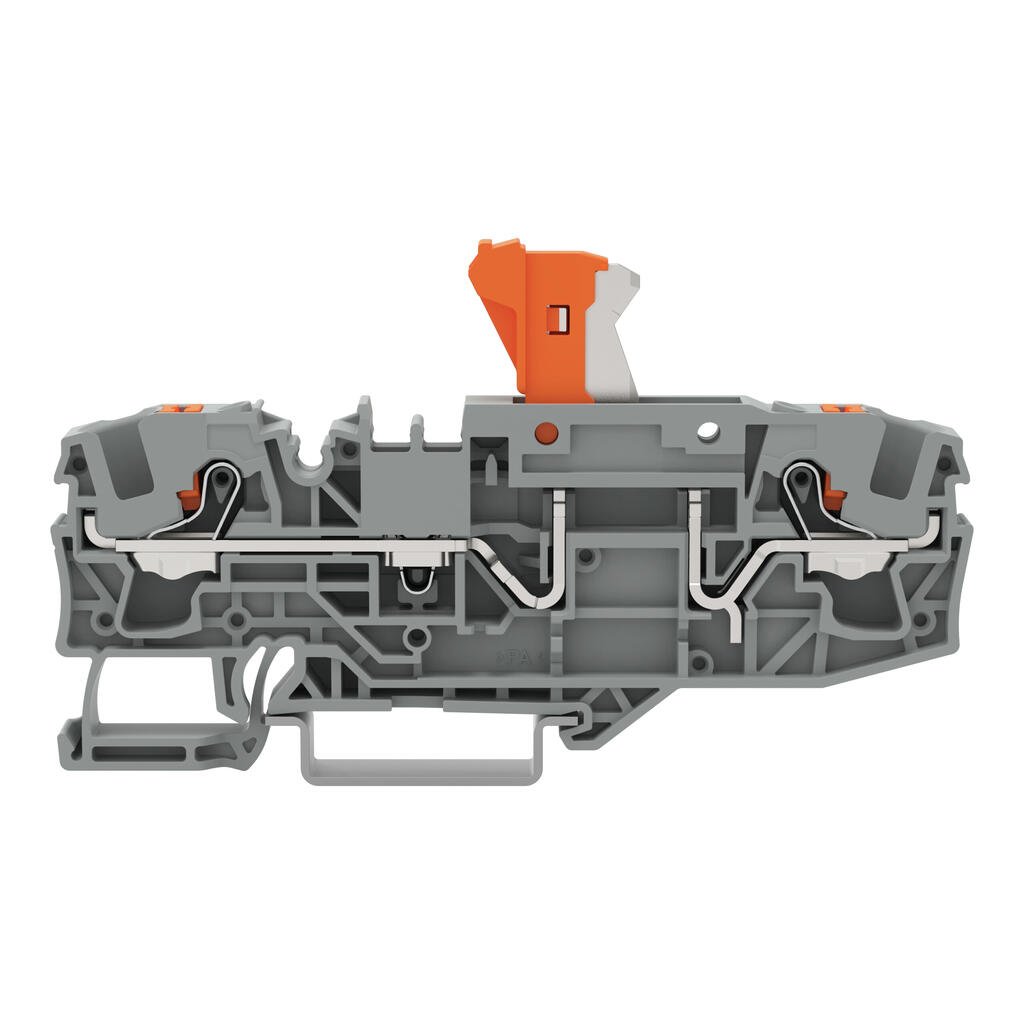

wago 2206-1675

Mounting type

DIN-35 rail

质量

19.6g

Safety information

The 2?mm test slot is only approved for high impedance measurement up to max. 100?mA.

Clamping units

2

Total number of potentials

1

Depth from upper-edge of DIN-rail

36.8?mm?/ 1.449?inches

Marking level

Center/side marking

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Fire load

0.396MJ

ActuatorColor

orange

Processing temperature

-35 … +85?°C

Continuous operating temperature

-60 … +105?°C

ETIM 9.0

EC000902

ETIM 8.0

EC000902

ECCN

NO US CLASSIFICATION

PU (SPU)

25?pcs

Packaging type

Box

Country of origin

PL

GTIN

4066966308280

Customs tariff number

85365080900

RoHS Compliance Status

Compliant,No Exemption

Ratings per

IEC/EN 60947-7-1

Rated voltage (III / 3)

500V

Rated impulse voltage (III / 3)

8kV

Legend (ratings)

(III / 3) ? Overvoltage category III / Pollution degree 3

Rated current I_N for specified power loss

30A

Resistance value for specified, current-dependent power loss

0.001Ω

Connection technology

Push-in CAGE CLAMP?

Actuation type

Push-button

Connectable conductor materials

Copper

Nominal cross-section

6 mm2

Solid conductor

0.5 … 10?mm2?/ 20 … 8?AWG

Solid conductor; push-in termination

2.5 … 10?mm2?/ 14 … 8?AWG

Fine-stranded conductor

0.5 … 10?mm2?/ 20 … 8?AWG

Fine-stranded conductor; with insulated ferrule

0.5 … 6?mm2?/ 20 … 10?AWG

Fine-stranded conductor; with ferrule; push-in termination

2.5 … 6?mm2?/ 16 … 10?AWG

Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

Strip length

13 … 15?mm?/ 0.51 … 0.59?inches

Wiring direction

Front-entry wiring

颜色

black

Number of levels

1

Rated current

30A

宽度

7.5?mm?/ 0.295?inches

高度

96.3?mm?/ 3.791?inches
