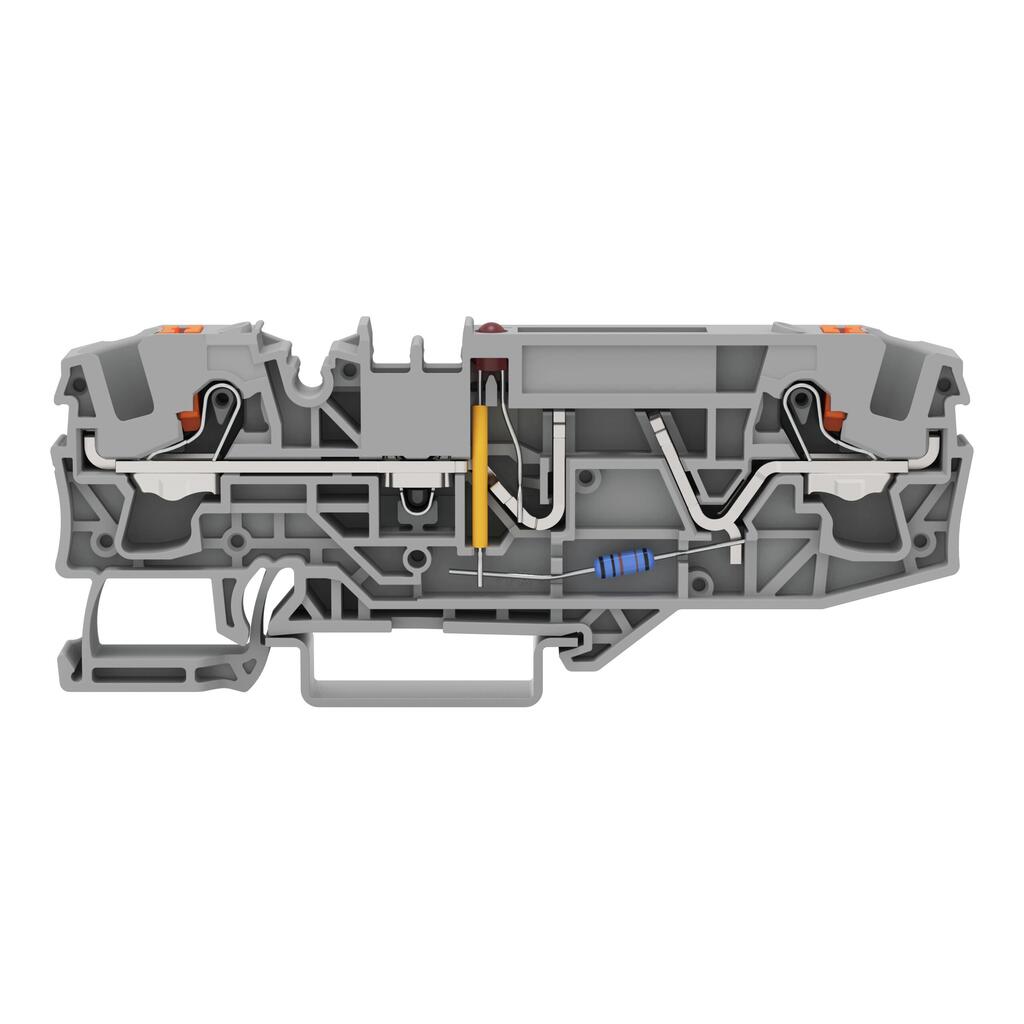

wago 2206-1681/1000-434

Name: 2206-1681/1000-434
Brand: wago
SKU: 2685-2206-1681/1000-434
Availability: InStock
Rating: 5 (1 reviews)

收藏
对比

型号

2206-1681/1000-434

品牌

wago

utmel 编号

2685-2206-1681/1000-434

商品类别

无类别的

封装

交货地

大陆

交期（工作日）

立即发货

ROHS

ECAD

简介

2-conductor fuse terminal block; for automotive blade-style fuses; with test option; with push-button; with blown fuse indication by LED; 24 V; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm2; Push-in CAGE CLAMP?; 6,00 mm2; gray

起订量

1最小包装量--

添加到询价列表

2206-1681/1000-434 wago 2-conductor fuse terminal block; for automotive blade-style fuses; with test option; with push-button; with blown fuse indication by LED; 24 V; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm2; Push-in CAGE CLAMP?; 6,00 mm2; gray

请发送询价，我们将立即回复。

库存:

请发送询价，我们将立即回复。

* 联系人姓名

* 电话

* 邮箱

* 公司名称

* 数量

在线咨询

2206-1681/1000-434详情

技术参数

PDF文档

wago 2206-1681/1000-434重要参数规格及、参数值，及相似型号如下：

参数名

参数值

全选
参数名

参数值

全选
Mounting type

DIN-35 rail
质量

118.1g
ActuatorColor

orange
Processing temperature

-35 … +85?°C
Continuous operating temperature

-60 … +105?°C
ETIM 9.0

EC000899
ETIM 8.0

EC000899
ECCN

NO US CLASSIFICATION
PU (SPU)

25?pcs
Packaging type

Box
Country of origin

DE
GTIN

4066966371260
Customs tariff number

85369095000
RoHS Compliance Status

Compliant,No Exemption
Ratings per

IEC/EN 60947-7-3
Rated voltage (III / 3)

500V
Rated impulse voltage (III / 3)

8kV
Blown fuse indication

24 V
Legend (ratings)

(III / 3) ? Overvoltage category III / Pollution degree 3
Ratings (note)

Electrical ratings are given by the fuse and blown fuse indication.
Ratings (note) 2

Blade-style fuses: Observe touch-proof protection for 42?V and higher voltages!
Fuse receptacle

pluggable
Connection technology

Push-in CAGE CLAMP?
Actuation type

Push-button
Connectable conductor materials

Copper
Nominal cross-section

6 mm2
Solid conductor

0.5 … 10?mm2?/ 20 … 8?AWG
Solid conductor; push-in termination

2.5 … 10?mm2?/ 14 … 8?AWG
Fine-stranded conductor

0.5 … 10?mm2?/ 20 … 8?AWG
Fine-stranded conductor; with insulated ferrule

0.5 … 6?mm2?/ 20 … 10?AWG
Fire load

0.343MJ
Flammability class per UL94

V0
Insulation material (main housing)

Polyamide (PA66)
Material group

I
Note (material data)

Information on material specifications can be found here
Type of fuse

Standard flat plug-in fuse 19.1 x 5.1 x 18.5 mm
Marking level

Center/side marking
Depth from upper-edge of DIN-rail

32.9?mm?/ 1.295?inches
Number of jumper slots

2
Total number of potentials

2
Clamping units

2
Wiring direction

Front-entry wiring
Strip length

13 … 15?mm?/ 0.51 … 0.59?inches
Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Fine-stranded conductor; with ferrule; push-in termination

2.5 … 6?mm2?/ 16 … 10?AWG
颜色

gray
Number of levels

1
Fuse type

Standard flat plug-in fuse; 19.1 x 5.1 x 18.5 mm
Rated current

25A
高度

96.3?mm?/ 3.791?inches
宽度

7.5?mm?/ 0.295?inches
