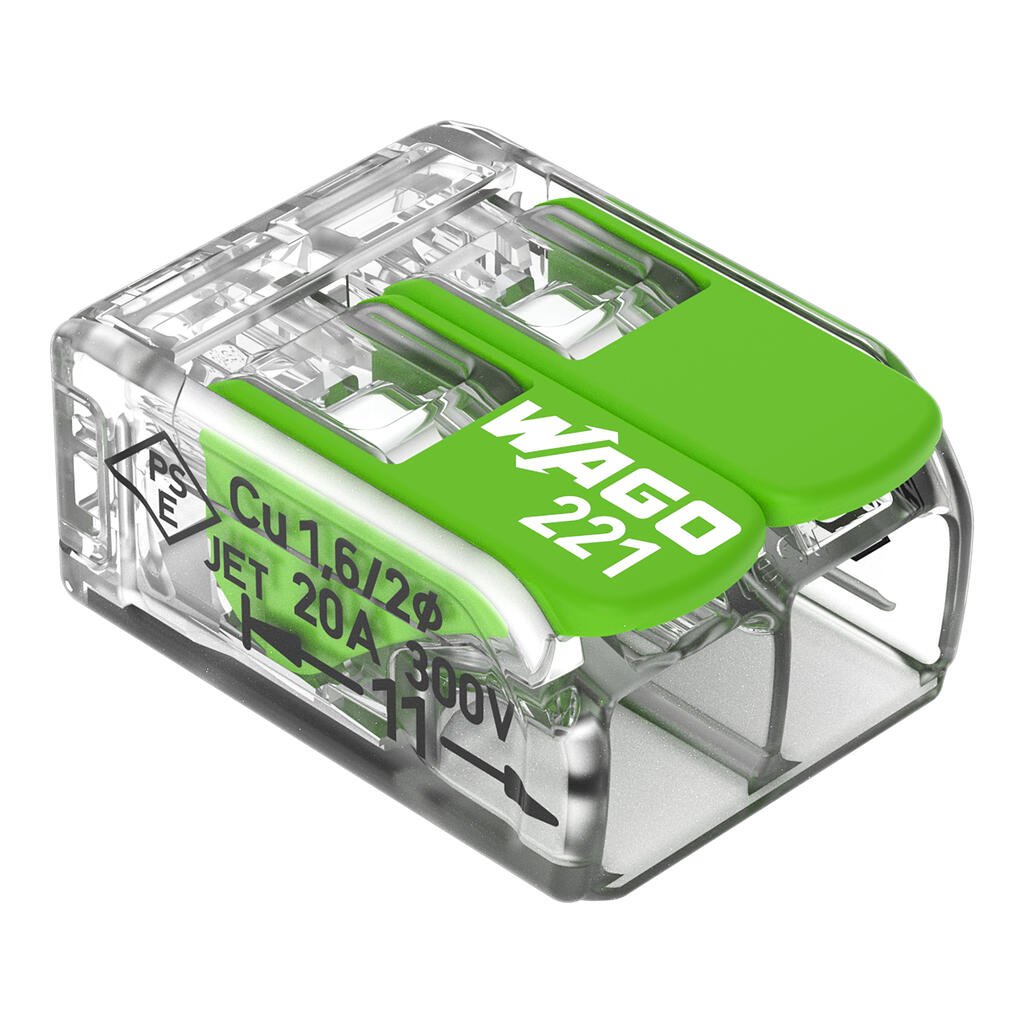

wago 221-422

Name: 221-422
Brand: wago
SKU: 2685-221-422
Availability: InStock
Rating: 5 (1 reviews)

收藏
对比

型号

221-422

品牌

wago

utmel 编号

2685-221-422

商品类别

无类别的

封装

交货地

大陆

交期（工作日）

立即发货

ROHS

ECAD

简介

COMPACT splicing connector; 2-conductor; with operating levers; 12 AWG; transparent housing; Green Range

起订量

1最小包装量--

添加到询价列表

221-422 wago COMPACT splicing connector; 2-conductor; with operating levers; 12 AWG; transparent housing; Green Range

请发送询价，我们将立即回复。

库存:

请发送询价，我们将立即回复。

* 联系人姓名

* 电话

* 邮箱

* 公司名称

* 数量

在线咨询

221-422详情

技术参数

wago 221-422重要参数规格及、参数值，及相似型号如下：

参数名

参数值

全选
参数名

参数值

全选
Housing material

bio-circular PC
质量

1.8g
Safety management note

NOTICE: Observe installation and safety instructions!Only to be used by electricians!Do not work under voltage/load!Use only for proper use!Observe national regulations/standards/guidelines!Observe technical specifications for the products!Observe the number of permissible potentials!Do not use damaged/dirty components!Observe conductor types, cross-sections and strip lengths!Insert conductor until it hits the product‘s backstop!Use original accessories!To be sold only with installation instructions!
Safety information

in grounded power lines
Clamping units

2
Total number of potentials

1
Note (material data)

Information on material specifications can be found here
Material group

IIIa
Insulation material (main housing)

Polycarbonate (PC)
Insulation material (actuator)

PBT from post-consumer recycled material
Flammability class per UL94

V2
Fire load

0.056MJ
ActuatorColor

green
Ambient temperature (operation)

+85 °C
Continuous operating temperature

105?°C
Temperature marking per EN 60998

T85
ETIM 9.0

EC000446
ETIM 8.0

EC000446
ECCN

NO US CLASSIFICATION
PU (SPU)

1000?(100)?pcs
Packaging type

Box
Country of origin

DE
GTIN

4066966345384
Customs tariff number

85369010000
RoHS Compliance Status

Compliant,No Exemption
Ratings per

EN 60664
Nominal voltage (II/2)

450V
Rated surge voltage (II/2)

4kV
Legend (ratings)

(II / 2) ? Overvoltage category II / Pollution degree 2
Approvals per

UL 486C
Rated voltage UL (Use Group C)

600V
Rated current UL (Use Group C)

20A
Connection technology

CAGE CLAMP?
Actuation type

Lever
Connectable conductor materials

Copper
Nominal cross-section

4 mm2 / 12 AWG
Solid conductor

0.2 … 4?mm2?/ 24 … 12?AWG
Stranded conductor

0.2 … 4?mm2?/ 24 … 12?AWG
Fine-stranded conductor

0.14 … 4?mm2?/ 24 … 12?AWG
Strip length

11?mm?/ 0.43?inches
Wiring direction

Side-entry wiring
颜色

transparent
深度

18.6 mm / 0.732 inches
Rated current

32A
宽度

13.2?mm?/ 0.52?inches
高度

8.4 mm / 0.327 inches
