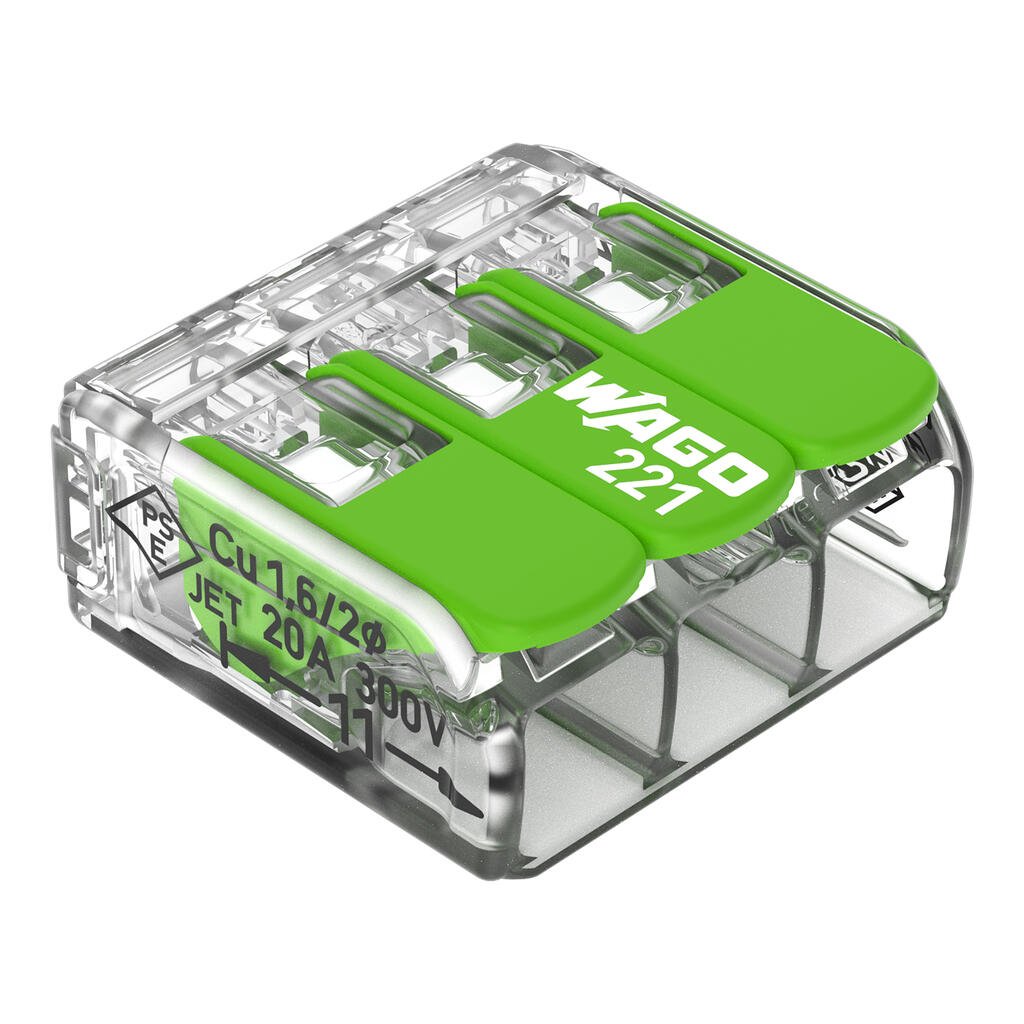

wago 221-423

Name: 221-423
Brand: wago
SKU: 2685-221-423
Availability: InStock
Rating: 5 (1 reviews)

收藏
对比

型号

221-423

品牌

wago

utmel 编号

2685-221-423

商品类别

无类别的

封装

交货地

大陆

交期（工作日）

立即发货

ROHS

ECAD

简介

COMPACT splicing connector; 3-conductor; with operating levers; 12 AWG; transparent housing; Green Range

起订量

1最小包装量--

添加到询价列表

221-423 wago COMPACT splicing connector; 3-conductor; with operating levers; 12 AWG; transparent housing; Green Range

请发送询价，我们将立即回复。

库存:

请发送询价，我们将立即回复。

* 联系人姓名

* 电话

* 邮箱

* 公司名称

* 数量

在线咨询

221-423详情

技术参数

wago 221-423重要参数规格及、参数值，及相似型号如下：

参数名

参数值

全选
参数名

参数值

全选
Housing material

bio-circular PC
质量

2.5g
Wiring direction

Side-entry wiring
Strip length

11?mm?/ 0.43?inches
Fine-stranded conductor

0.14 … 4?mm2?/ 24 … 12?AWG
Stranded conductor

0.2 … 4?mm2?/ 24 … 12?AWG
Solid conductor

0.2 … 4?mm2?/ 24 … 12?AWG
Nominal cross-section

4 mm2 / 12 AWG
Connectable conductor materials

Copper
Actuation type

Lever
Connection technology

CAGE CLAMP?
Rated current UL (Use Group C)

20A
Rated voltage UL (Use Group C)

600V
Approvals per

UL 486C
Legend (ratings)

(II / 2) ? Overvoltage category II / Pollution degree 2
Rated surge voltage (II/2)

4kV
Nominal voltage (II/2)

450V
Ratings per

EN 60664
RoHS Compliance Status

Compliant,No Exemption
Customs tariff number

85369010000
GTIN

4066966345438
Country of origin

DE
Packaging type

Box
PU (SPU)

500?(50)?pcs
ECCN

NO US CLASSIFICATION
ETIM 8.0

EC000446
ETIM 9.0

EC000446
Temperature marking per EN 60998

T85
Continuous operating temperature

105?°C
Ambient temperature (operation)

+85 °C
ActuatorColor

green
Fire load

0.075MJ
Flammability class per UL94

V2
Insulation material (actuator)

PBT from post-consumer recycled material
Insulation material (main housing)

Polycarbonate (PC)
Material group

IIIa
Note (material data)

Information on material specifications can be found here
Total number of potentials

1
Clamping units

3
Safety information

in grounded power lines
Safety management note

NOTICE: Observe installation and safety instructions!Only to be used by electricians!Do not work under voltage/load!Use only for proper use!Observe national regulations/standards/guidelines!Observe technical specifications for the products!Observe the number of permissible potentials!Do not use damaged/dirty components!Observe conductor types, cross-sections and strip lengths!Insert conductor until it hits the product‘s backstop!Use original accessories!To be sold only with installation instructions!
颜色

transparent
深度

18.6 mm / 0.732 inches
Rated current

32A
高度

8.4 mm / 0.327 inches
宽度

18.8?mm?/ 0.74?inches
