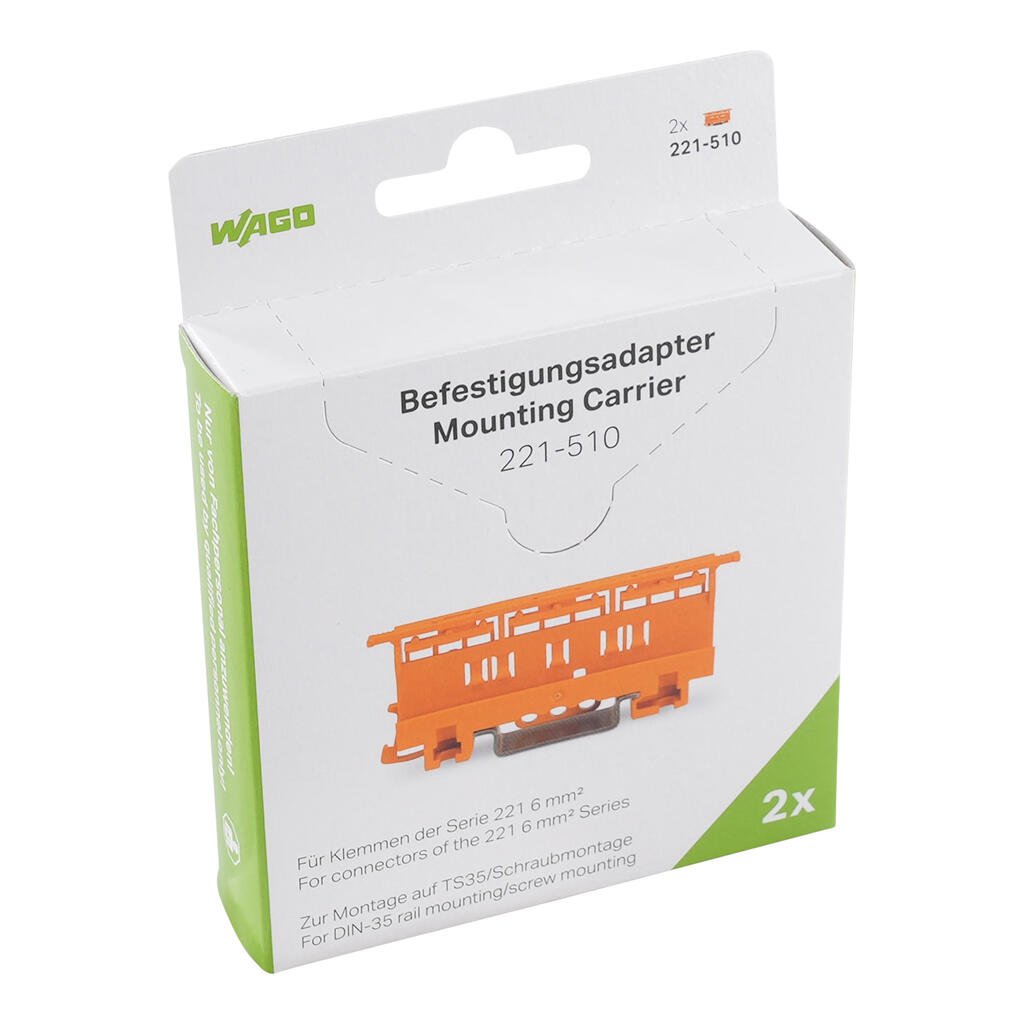

wago 221-510/995-002

Mounting type

DIN-35 rail

质量

12.2g

Safety management note

NOTICE: Observe installation and safety instructions!Only to be used by electricians!Do not work under voltage/load!Use only for proper use!Observe national regulations/standards/guidelines!Observe technical specifications for the products!Observe the number of permissible potentials!Do not use damaged/dirty components!Observe conductor types, cross-sections and strip lengths!Insert conductor until it hits the product‘s backstop!Use original accessories!To be sold only with installation instructions!

Depth from upper-edge of DIN-rail

28.3 mm / 1.114 inches

Suitable

for 2-, 3- and 5-conductor 221 Series Splicing Connectors (6 mm2)

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Fire load

0.357MJ

ETIM 9.0

EC002848

ETIM 8.0

EC002848

ECCN

NO US CLASSIFICATION

PU (SPU)

24 (2) pcs

Packaging type

Blister foil

Country of origin

DE

GTIN

4066966002225

Customs tariff number

39269097900

RoHS Compliance Status

Compliant,No Exemption

颜色

orange

宽度

19.3 mm / 0.76 inches

高度

94.2 mm / 3.709 inches
