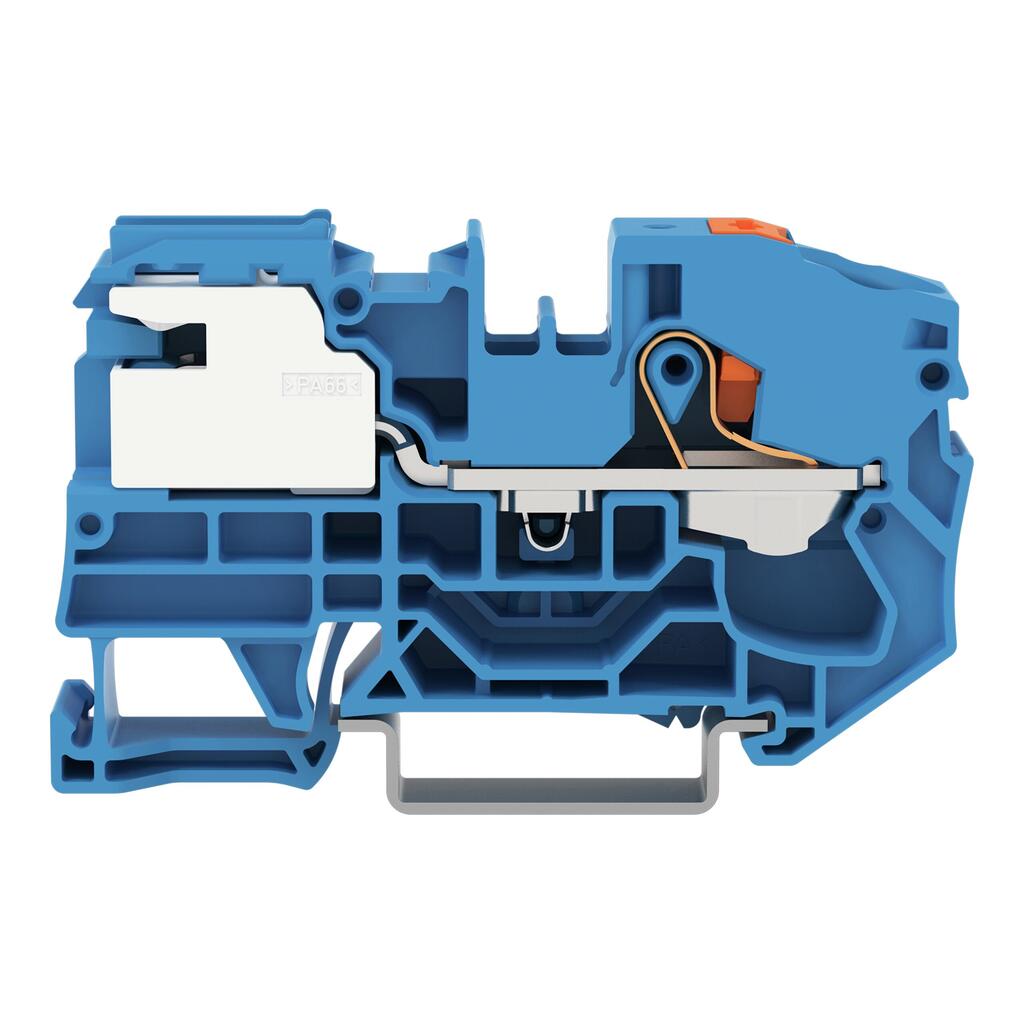

wago 2216-7114

Mounting type

DIN-35 rail

质量

25.5g

Clamping units

1

Total number of potentials

1

Number of jumper slots

2

Depth from upper-edge of DIN-rail

38.1?mm?/ 1.5?inches

Marking level

Center/side marking

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Fire load

0.411MJ

Processing temperature

-35 … +85 °C

Continuous operating temperature

-60 … +105 °C

ETIM 9.0

EC001257

ETIM 8.0

EC001257

ECCN

NO US CLASSIFICATION

PU (SPU)

25?pcs

Packaging type

Box

Country of origin

PL

GTIN

4066966309652

Customs tariff number

85369010000

RoHS Compliance Status

Compliant,No Exemption

Ratings per

IEC/EN 60947-7-1

Rated voltage (III / 3)

250V

Rated impulse voltage (III / 3)

4kV

Current at conductor cross-section (max.) mm2

75A

Legend (ratings)

(III / 3) ? Overvoltage category III / Pollution degree 3

Power loss, per pole (potential)

2.426W

Rated current I_N for specified power loss

69A

Connection technology

Push-in CAGE CLAMP?

Actuation type

Push-button

Connectable conductor materials

Copper

Nominal cross-section

16 mm2

Solid conductor

0.5 … 16?mm2?/ 20 … 6?AWG

Solid conductor; push-in termination

6 … 16?mm2?/ 14 … 6?AWG

Fine-stranded conductor

0.5 … 25?mm2?/ 20 … 4?AWG

Fine-stranded conductor; with insulated ferrule

0.5 … 16?mm2?/ 20 … 6?AWG

Fine-stranded conductor; with ferrule; push-in termination

6 … 16?mm2?/ 10 … 6?AWG

Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.AWG specifications were converted according to IEC.

Strip length

18 … 20?mm?/ 0.71 … 0.79?inches

Wiring direction

Front-entry wiring

Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment

DIN EN 50155 (VDE 0115-200):2022-06

Spectrum/Installation location

Service life test, Category?1, Class?A/B

Function test with noise-like vibration

Test passed according to Section 8 of the standard

Acceleration

5g (highest test level used for all axes)

Test duration per axis

5 h

Test directions

X, Y and Z axes

Monitoring for contact faults/interruptions

Passed

Voltage drop measurement before and after each axis

Passed

Simulated service life test through increased levels of noise-like vibration

Test passed according to Section 9 of the standard

Extended test scope: Monitoring for contact faults/interruptions

Passed

Extended test scope: Voltage drop measurement before and after each axis

Passed

Shock test

Test passed according to Section 10 of the standard

Shock form

Half sine

Shock duration

30 ms

Number of shocks per axis

3 pos. und 3 neg.

Vibration and shock stress for rolling stock equipment

Passed

颜色

blue

频率

f1= 5 Hz to f2= 150 Hz

Number of levels

1

Rated current

69A

宽度

12?mm?/ 0.472?inches

高度

69.4?mm?/ 2.732?inches
