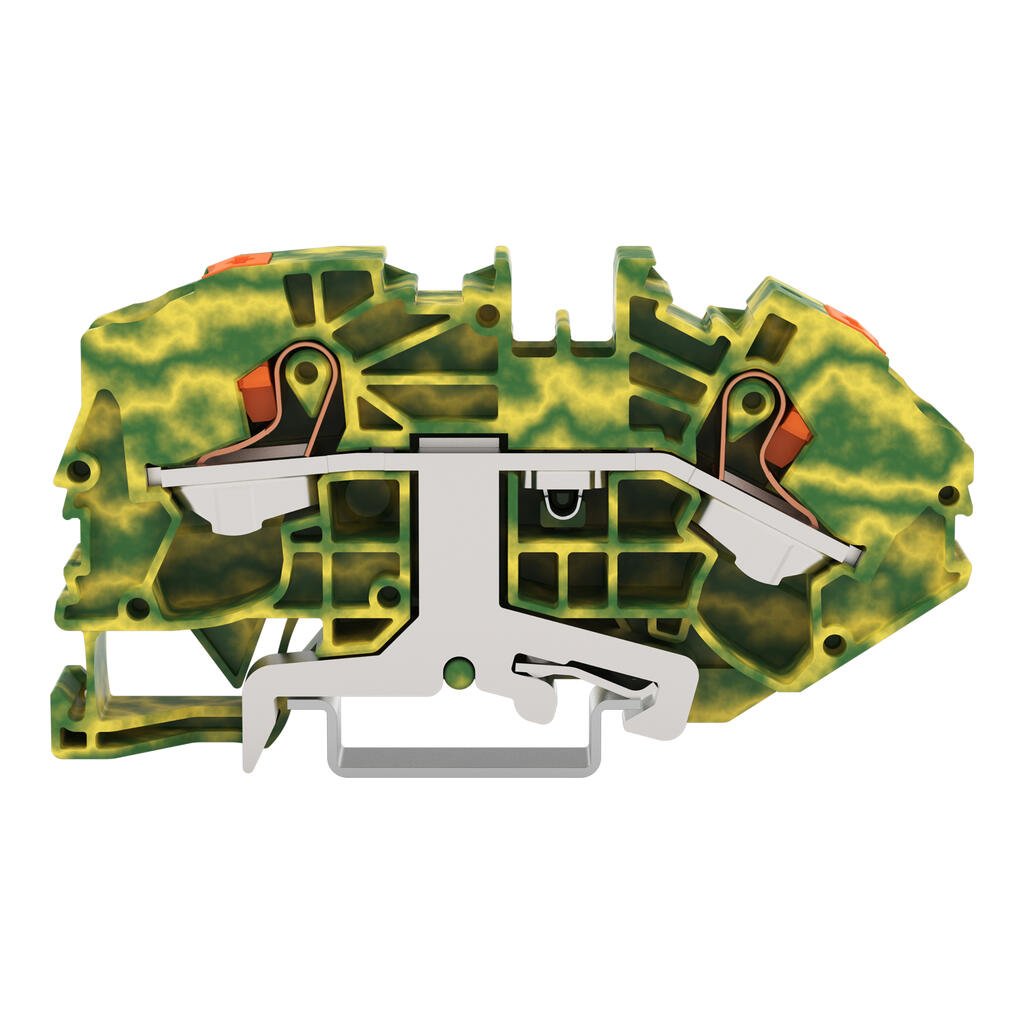

wago 2216-7607

Mounting type

DIN-35 rail

质量

42.3g

Clamping units

2

Total number of potentials

1

Number of jumper slots

2

Depth from upper-edge of DIN-rail

40.8 mm / 1.606 inches

Marking level

Center/side marking

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Fire load

0.474MJ

Processing temperature

-35 … +85 °C

Continuous operating temperature

-60 … +105 °C

ETIM 9.0

EC000897

ETIM 8.0

EC000897

ECCN

NO US CLASSIFICATION

PU (SPU)

20 pcs

Packaging type

Box

Country of origin

PL

GTIN

4066966487220

Customs tariff number

85369010000

CAS-No.

7439-92-1

REACH Candidate List Substance

Lead

RoHS Compliance Status

Compliant,No Exemption

SCIP notification number (Austria)

44f6cb6a-4f80-4fb9-b136-c583b4b5f61f

SCIP notification number (Belgium)

9ed3163e-c366-4947-8627-bfa57f096e20

SCIP notification number (Bulgaria)

ab840c48-f140-4246-977e-8a33195bc3ff

SCIP notification number (Czech Republic)

007819e0-251f-4778-89aa-5cbda8184461

SCIP notification number (Denmark)

d3459e29-02ee-48bc-8e1f-15fff420e321

SCIP notification number (Finland)

a656a1a4-68c9-4251-a262-d679fbda8d0a

SCIP notification number (France)

4f906bce-751c-48bb-ad7e-e4158d4c0ba6

SCIP notification number (Germany)

effe7840-66f0-498b-9fd7-559c993dd46b

SCIP notification number (Hungary)

f5dc1f43-ea90-45a3-9596-e77e4e79cf1e

SCIP notification number (Italy)

6927de61-7355-4a27-b6ef-13e301a346a6

SCIP notification number (Netherlands)

bc7f748f-7344-4899-aaeb-d3355f295db5

SCIP notification number (Poland)

dbbc75f9-8b6b-4e95-ad07-3ee15bb0fbf3

SCIP notification number (Romania)

7c858e9b-0786-4bbe-b97e-97f7c8de37cd

SCIP notification number (Sweden)

db7570b0-8ac5-4f37-aef8-b9cc5d833b67

Connection technology

Push-in CAGE CLAMP?

Actuation type

Push-button

Connectable conductor materials

Copper

Nominal cross-section

16 mm2

Solid conductor

0.5 … 16 mm2 / 20 … 6 AWG

Solid conductor; push-in termination

6 … 16 mm2 / 14 … 6 AWG

Fine-stranded conductor

0.5 … 25 mm2 / 20 … 4 AWG

Fine-stranded conductor; with insulated ferrule

0.5 … 16 mm2 / 20 … 6 AWG

Fine-stranded conductor; with ferrule; push-in termination

6 … 16 mm2 / 10 … 6 AWG

Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.AWG specifications were converted according to IEC.

Strip length

18 … 20 mm / 0.71 … 0.79 inches

Wiring direction

Front-entry wiring

颜色

green-yellow

Number of levels

1

宽度

12 mm / 0.472 inches

高度

85.7 mm / 3.374 inches
