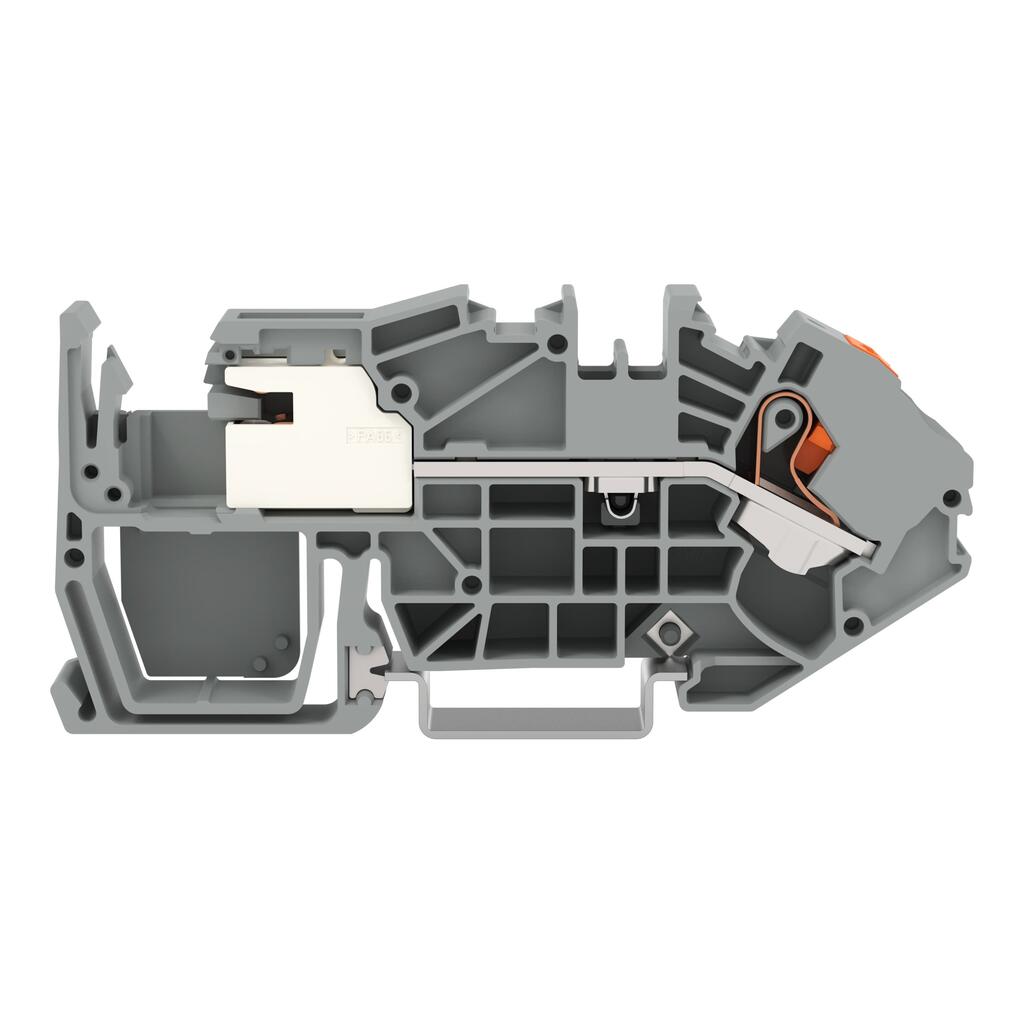

wago 2216-7711

Mounting type

DIN-35 rail

质量

33.6g

Clamping units

1

Total number of potentials

1

Number of jumper slots

2

Depth from upper-edge of DIN-rail

40.8 mm / 1.606 inches

Marking level

Center/side marking

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Fire load

0.585MJ

Processing temperature

-35 … +85 °C

Continuous operating temperature

-60 … +105 °C

ECCN

NO US CLASSIFICATION

PU (SPU)

20 pcs

Packaging type

Box

Country of origin

PL

GTIN

4066966531565

Customs tariff number

85369010000

RoHS Compliance Status

Compliant,No Exemption

Ratings per

IEC/EN 60947-7-1

Rated voltage (III / 3)

250V

Rated impulse voltage (III / 3)

4kV

Legend (ratings)

(III / 3) ? Overvoltage category III / Pollution degree 3

Power loss, per pole (potential)

2.426W

Rated current I_N for specified power loss

74A

Resistance value for specified, current-dependent power loss

0Ω

Connection technology

Push-in CAGE CLAMP?

Actuation type

Push-button

Connectable conductor materials

Copper

Nominal cross-section

16 mm2

Solid conductor

0.5 … 16 mm2 / 20 … 6 AWG

Solid conductor; push-in termination

6 … 16 mm2 / 14 … 6 AWG

Fine-stranded conductor

0.5 … 25 mm2 / 20 … 4 AWG

Fine-stranded conductor; with insulated ferrule

0.5 … 16 mm2 / 20 … 6 AWG

Fine-stranded conductor; with ferrule; push-in termination

6 … 16 mm2 / 10 … 6 AWG

Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.AWG specifications were converted according to IEC.

Strip length

18 … 20 mm / 0.71 … 0.79 inches

Wiring direction

Front-entry wiring

颜色

gray

Number of levels

1

Rated current

73A

宽度

12 mm / 0.472 inches

高度

99.7 mm / 3.925 inches
