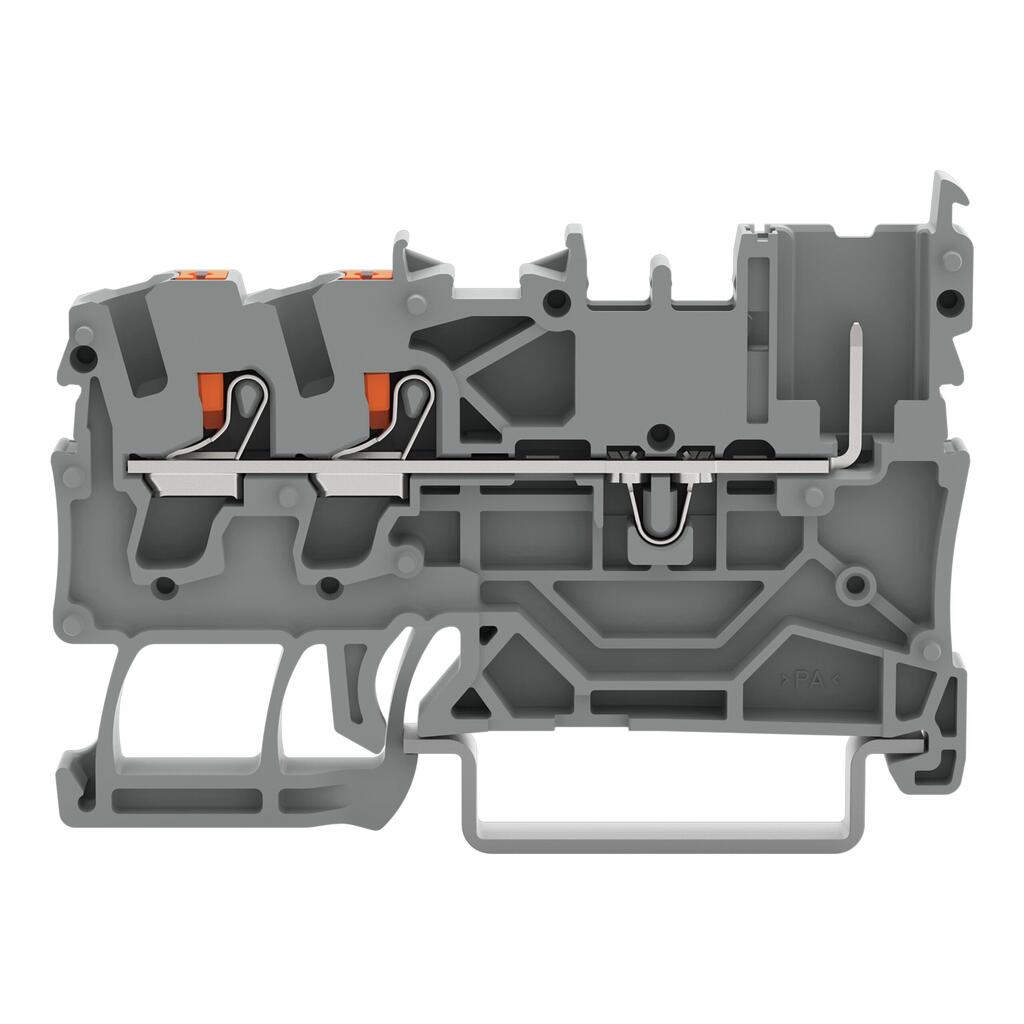

wago 2222-1301/999-953

Name: 2222-1301/999-953
Brand: wago
SKU: 2685-2222-1301/999-953
Availability: InStock
Rating: 5 (1 reviews)

收藏
对比

型号

2222-1301/999-953

品牌

wago

utmel 编号

2685-2222-1301/999-953

商品类别

无类别的

封装

交货地

大陆

交期（工作日）

立即发货

ROHS

ECAD

简介

2-conductor/1-pin carrier terminal block; with push-button; 2.5 mm2; suitable for Ex nA applications; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP?; 2,50 mm2; gray

起订量

1最小包装量--

添加到询价列表

2222-1301/999-953 wago 2-conductor/1-pin carrier terminal block; with push-button; 2.5 mm2; suitable for Ex nA applications; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP?; 2,50 mm2; gray

请发送询价，我们将立即回复。

库存:

请发送询价，我们将立即回复。

* 联系人姓名

* 电话

* 邮箱

* 公司名称

* 数量

在线咨询

2222-1301/999-953详情

技术参数

wago 2222-1301/999-953重要参数规格及、参数值，及相似型号如下：

参数名

参数值

全选
参数名

参数值

全选
Mounting type

DIN-35 rail
质量

6.7g
ETIM 9.0

EC000897
ETIM 8.0

EC000897
ECCN

NO US CLASSIFICATION
PU (SPU)

100?pcs
Packaging type

Box
Country of origin

PL
GTIN

4066966204179
Customs tariff number

85366990990
RoHS Compliance Status

Compliant,No Exemption
Ratings per

IEC/EN 60947-7-1
Approvals per

CSA 22.2 No 158
Rated voltage UL (Use Group B)

600V
Rated current UL (Use Group B)

20A
Rated voltage UL (Use Group C)

600V
Rated current UL (Use Group C)

20A
Rated voltage CSA (Use Group C)

600V
Rated current CSA (Use Group C)

20A
Rated voltage EN (Ex e II)

630V
Continuous operating temperature

-60 … +105?°C
Processing temperature

-35 … +85?°C
Fire load

0.16MJ
Flammability class per UL94

V0
Insulation material (main housing)

Polyamide (PA66)
Material group

I
Note (material data)

Information on material specifications can be found here
Marking level

Center/side marking
Depth from upper-edge of DIN-rail

36.4?mm?/ 1.433?inches
Total number of potentials

1
Female plug slots

1
Clamping units

2
Wiring direction

Front-entry wiring
Strip length

10 … 12?mm?/ 0.39 … 0.47?inches
Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Fine-stranded conductor; with ferrule; push-in termination

1 … 2.5?mm2?/ 18 … 14?AWG
Fine-stranded conductor; with insulated ferrule

0.25 … 2.5?mm2?/ 22 … 14?AWG
Fine-stranded conductor

0.25 … 4?mm2?/ 22 … 12?AWG
Solid conductor; push-in termination

0.75 … 4?mm2?/ 18 … 12?AWG
Solid conductor

0.25 … 4?mm2?/ 22 … 12?AWG
Nominal cross-section

2.5 mm2
Connectable conductor materials

Copper
Actuation type

Push-button
Connection technology

Push-in CAGE CLAMP?
Resistance value for specified, current-dependent power loss

0.001Ω
Rated current I<sub>N</sub> for specified power loss

20A
Power loss, per pole (potential)

0.532W
颜色

gray
Number of levels

1
Rated current

20A
高度

59.2?mm?/ 2.331?inches
宽度

5.2?mm?/ 0.205?inches
