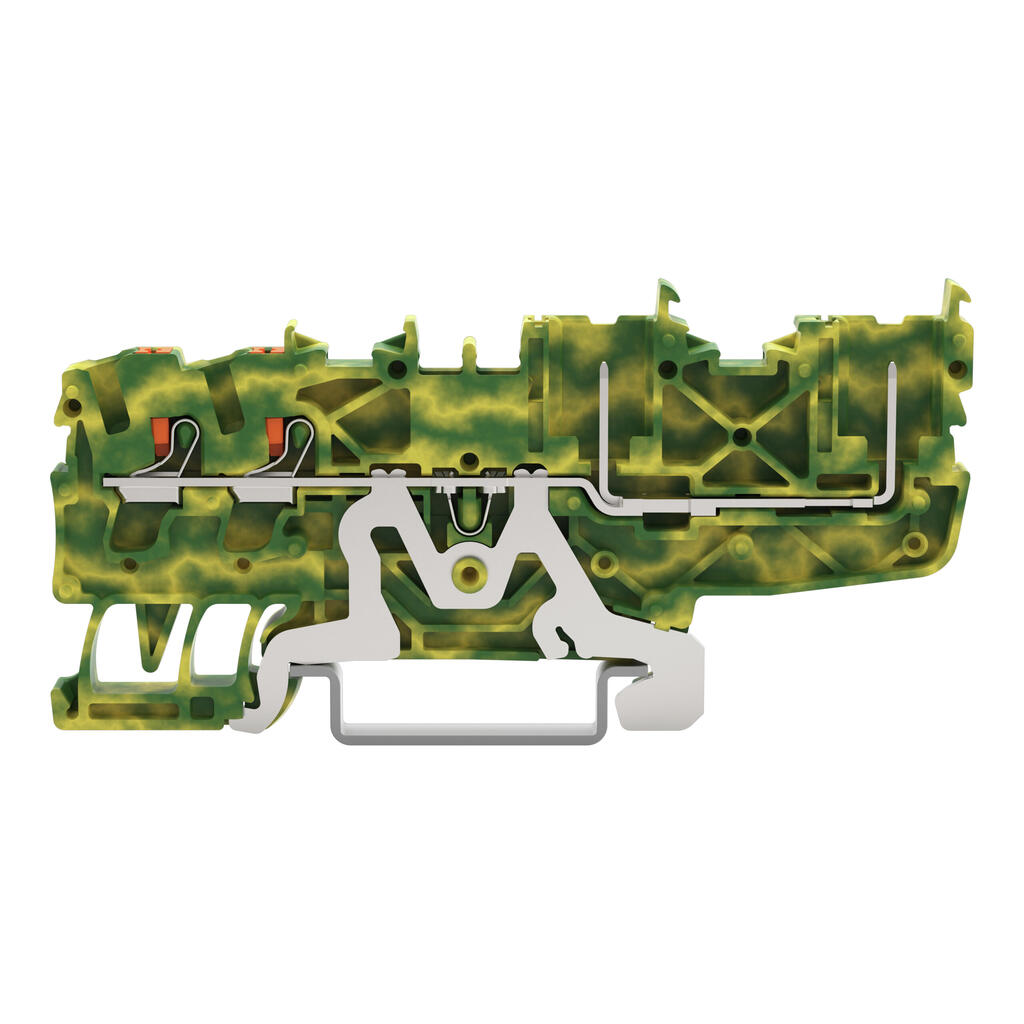

wago 2222-1407

Mounting type

DIN-35 rail

质量

12.3g

Clamping units

2

Female plug slots

2

Total number of potentials

1

Depth from upper-edge of DIN-rail

36.4?mm?/ 1.433?inches

Marking level

Center/side marking

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Fire load

0.206MJ

Processing temperature

-35 … +85?°C

Continuous operating temperature

-60 … +105?°C

ETIM 9.0

EC000901

ETIM 8.0

EC000901

ECCN

NO US CLASSIFICATION

PU (SPU)

50?pcs

Packaging type

Box

Country of origin

PL

GTIN

4066966204117

Customs tariff number

85366990990

RoHS Compliance Status

Compliant,No Exemption

Connection technology

Push-in CAGE CLAMP?

Actuation type

Push-button

Connectable conductor materials

Copper

Nominal cross-section

2.5 mm2

Solid conductor

0.25 … 4?mm2?/ 22 … 12?AWG

Solid conductor; push-in termination

0.75 … 4?mm2?/ 18 … 12?AWG

Fine-stranded conductor

0.25 … 4?mm2?/ 22 … 12?AWG

Fine-stranded conductor; with insulated ferrule

0.25 … 2.5?mm2?/ 22 … 14?AWG

Fine-stranded conductor; with ferrule; push-in termination

1 … 2.5?mm2?/ 18 … 14?AWG

Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

Strip length

10 … 12?mm?/ 0.39 … 0.47?inches

Wiring direction

Front-entry wiring

颜色

green-yellow

Number of levels

1

宽度

5.2?mm?/ 0.205?inches

高度

86.6?mm?/ 3.409?inches
