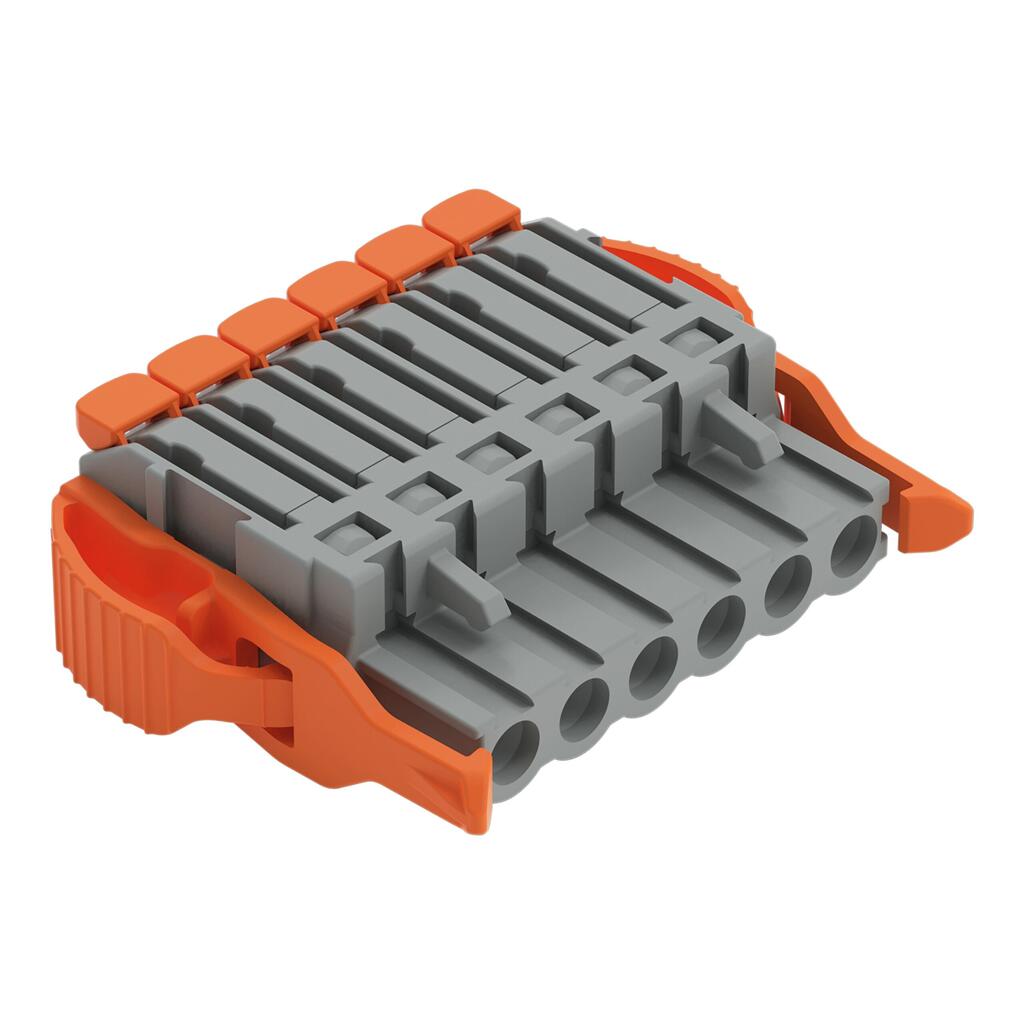

wago 2231-1116/038-000

Contact plating

Tin

质量

27g

Safety information

TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.

Variants

Other pole numbers

Clamping units

16

Total number of potentials

16

Number of connection types

1

Pin spacing

5?mm?/ 0.197?inches

Variable coding

有

Anti-rotation protection

有

Contact type (pluggable connector)

Female connector/socket

Connector (connection type)

for conductor

Mismating protection

无

Plugging without loss of pin spacing

无

Locking of plug-in connection

Locking lever

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Clamping spring material

Chrome-nickel spring steel (CrNi)

Contact Materials

Copper alloy

Fire load

0.538MJ

Weight of insulation material

3.81g

Limit temperature range

-60 … +100?°C

Processing temperature

-35 … +60 °C

ETIM 9.0

EC002638

ETIM 8.0

EC002638

ECCN

NO US CLASSIFICATION

PU (SPU)

25 pcs

Packaging type

Box

Country of origin

PL

GTIN

4066966496253

Customs tariff number

85366990990

RoHS Compliance Status

Compliant,No Exemption

Ratings per

IEC/EN 60664-1

Rated voltage (III / 3)

320V

Rated impulse voltage (III / 3)

4kV

Rated voltage (III/2)

320V

Rated surge voltage (III/2)

4kV

Nominal voltage (II/2)

630V

Rated surge voltage (II/2)

4kV

Legend (ratings)

(III / 2) ? Overvoltage category III / Pollution degree 2

Connection technology

Push-in CAGE CLAMP?

Actuation type

Lever

Solid conductor

0.2 … 2.5?mm2?/ 24 … 12?AWG

Fine-stranded conductor

0.2 … 2.5?mm2?/ 24 … 12?AWG

Fine-stranded conductor; with insulated ferrule

0.25 … 1.5?mm2

Fine-stranded conductor; with uninsulated ferrule

0.25 … 2.5?mm2

Strip length

11 … 12?mm?/ 0.43 … 0.47?inches

Conductor entry direction to mating direction

0°

颜色

gray

深度

33.6?mm?/ 1.323?inches

Number of levels

1

Number of poles

16

Rated current

16A

宽度

94?mm?/ 3.701?inches

高度

11.5?mm?/ 0.453?inches
