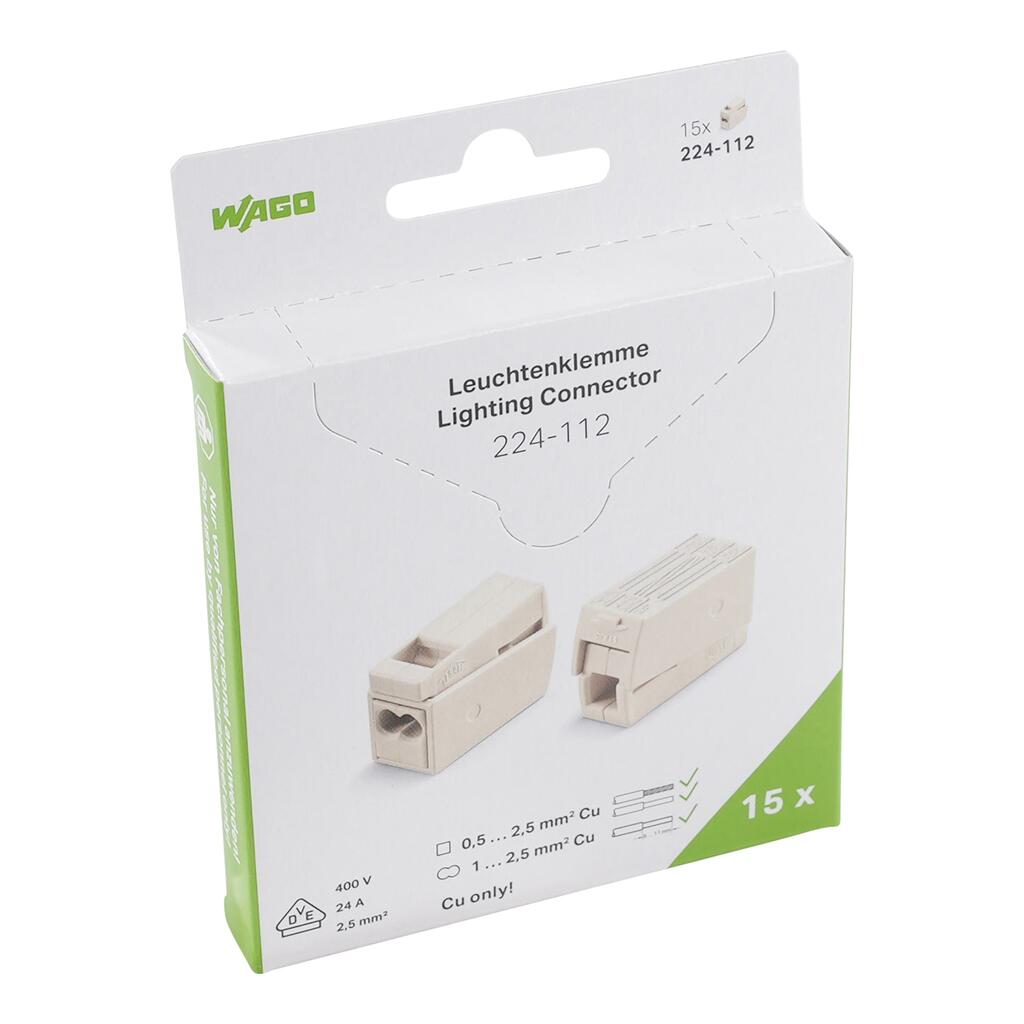

wago 224-112/995-015

质量

2.1g

Safety information

in grounded power lines

Clamping units

3

Total number of potentials

1

Note (material data)

Information on material specifications can be found here

Fire load

0.047MJ

Ambient temperature (operation)

+60 °C

Continuous operating temperature

105 °C

ETIM 9.0

EC000446

ETIM 8.0

EC000447

ECCN

NO US CLASSIFICATION

PU (SPU)

270 (15) pcs

Packaging type

Blister foil

Country of origin

DE

GTIN

4066966001860

Customs tariff number

85369010000

RoHS Compliance Status

Compliant,No Exemption

Ratings per

EN 60664

Nominal voltage (II/2)

400V

Rated surge voltage (II/2)

4kV

Legend (ratings)

(II / 2) ? Overvoltage category II / Pollution degree 2

Connection type 1

Installation side

Connection technology

PUSH WIRE?

Total number of connection points

2

Actuation type

Push-in

Connectable conductor materials

Copper

Solid conductor

1 … 2.5 mm2 / 16 … 14 AWG

Strip length

9 … 11 mm / 0.35 … 0.43 inches

Wiring direction

Side-entry wiring

Connection type 2

Lighting side

Connection technology 2

CAGE CLAMP?

Number of connection points 2

1

Solid conductor 2

0.5 … 2.5 mm2 / 20 … 14 AWG

Fine-stranded conductor 2

0.5 … 2.5 mm2 / 20 … 16 AWG

颜色

white

深度

20.5 mm / 0.807 inches

Rated current

24A

宽度

9.5 mm / 0.374 inches

高度

15.5 mm / 0.61 inches
