wago 2252-321/000-014

Name: 2252-321/000-014
Brand: wago
SKU: 2685-2252-321/000-014
Availability: InStock
Rating: 5 (1 reviews)

收藏
对比

型号

2252-321/000-014

品牌

wago

utmel 编号

2685-2252-321/000-014

商品类别

无类别的

封装

交货地

大陆

交期（工作日）

立即发货

ROHS

ECAD

简介

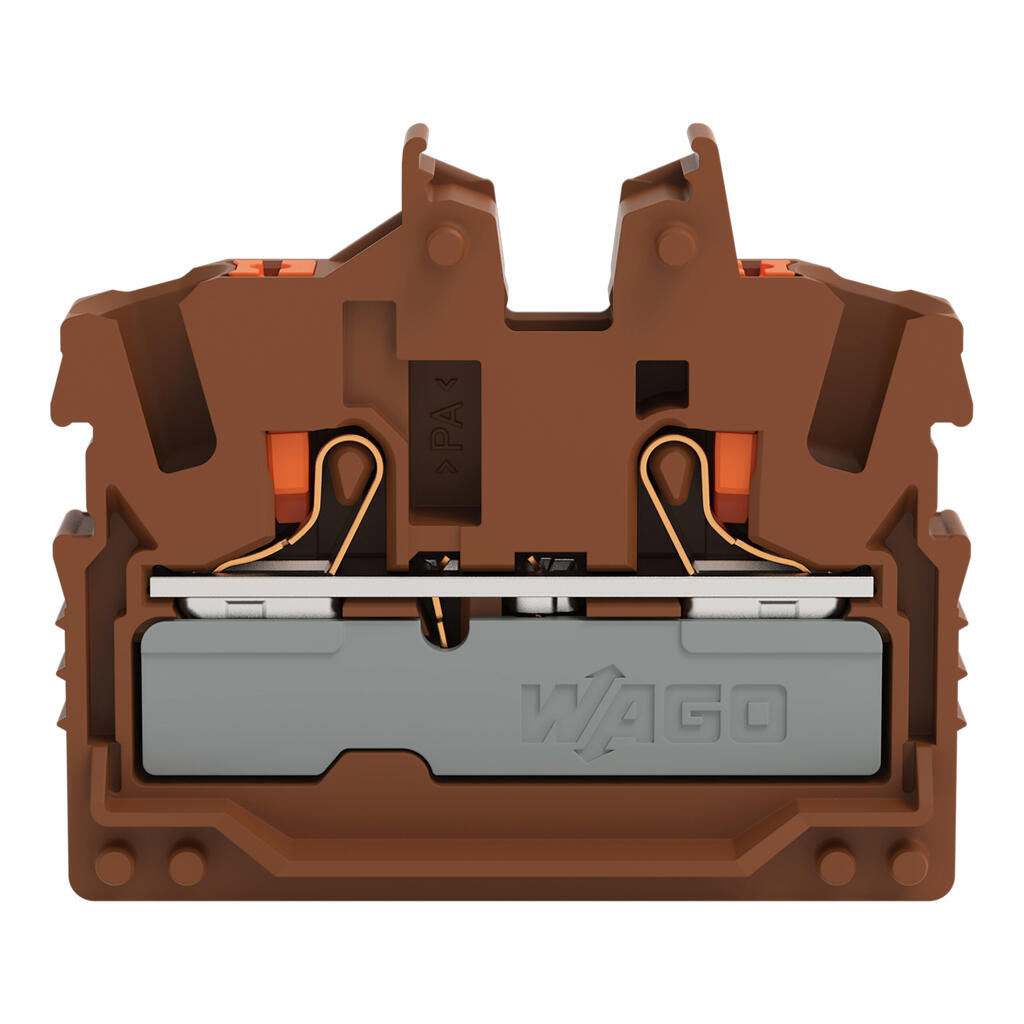

2-conductor miniature through terminal block; with push-button; 2.5 mm2; Center terminal block without snap-in mounting foot, without mounting flange; side and center marking; with test port; Push-in CAGE CLAMP?; 2,50 mm2; brown

起订量

1最小包装量--

添加到询价列表

2252-321/000-014 wago 2-conductor miniature through terminal block; with push-button; 2.5 mm2; Center terminal block without snap-in mounting foot, without mounting flange; side and center marking; with test port; Push-in CAGE CLAMP?; 2,50 mm2; brown

请发送询价，我们将立即回复。

库存:

请发送询价，我们将立即回复。

* 联系人姓名

* 电话

* 邮箱

* 公司名称

* 数量

在线咨询

2252-321/000-014详情

技术参数

wago 2252-321/000-014重要参数规格及、参数值，及相似型号如下：

参数名

参数值

全选
参数名

参数值

全选
Mounting type

none
质量

4.1g
Wiring direction

Front-entry wiring
Strip length

10 … 12?mm?/ 0.39 … 0.47?inches
Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Fine-stranded conductor; with ferrule; push-in termination

1 … 2.5?mm2?/ 18 … 14?AWG
Fine-stranded conductor; with insulated ferrule

0.25 … 2.5?mm2?/ 22 … 14?AWG
Fine-stranded conductor

0.25 … 4?mm2?/ 22 … 12?AWG
Solid conductor; push-in termination

1 … 4?mm2?/ 18 … 12?AWG
Solid conductor

0.25 … 4?mm2?/ 22 … 12?AWG
Nominal cross-section

2.5 mm2
Connectable conductor materials

Copper
Actuation type

Push-button
Connection technology

Push-in CAGE CLAMP?
Resistance value for specified, current-dependent power loss

0.001Ω
Rated current I<sub>N</sub> for specified power loss

24A
Power loss, per pole (potential)

0.766W
Reference hazardous areas

See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
Rated current CSA (Use Group C)

20A
Rated voltage CSA (Use Group C)

600V
Rated current CSA (Use Group B)

20A
Rated voltage CSA (Use Group B)

600V
Rated current UL (Use Group C)

20A
Rated voltage UL (Use Group C)

600V
Rated current UL (Use Group B)

20A
Rated voltage UL (Use Group B)

600V
Approvals per

CSA 22.2 No 158
Legend (ratings)

(III / 3) ? Overvoltage category III / Pollution degree 3
Current at conductor cross-section (max.) mm2

32A
Rated impulse voltage (III / 3)

8kV
Rated voltage (III / 3)

800V
Ratings per

IEC/EN 60998-2-2
RoHS Compliance Status

Compliant,No Exemption
Customs tariff number

85369010000
GTIN

4066966310818
Country of origin

IN
Packaging type

Box
PU (SPU)

100?pcs
ECCN

NO US CLASSIFICATION
ETIM 8.0

EC001284
ETIM 9.0

EC001284
Continuous operating temperature

-60 … +105?°C
Processing temperature

-35 … +85?°C
Fire load

0.099MJ
Flammability class per UL94

V0
Insulation material (main housing)

Polyamide (PA66)
Material group

I
Note (material data)

Information on material specifications can be found here
Marking level

Center/side marking
Height from the surface

30?mm?/ 1.181?inches
Number of jumper slots

1
Total number of potentials

1
Clamping units

2
颜色

brown
深度

35.5?mm?/ 1.398?inches
Number of levels

1
Rated current

24A
宽度

5.2?mm?/ 0.205?inches
