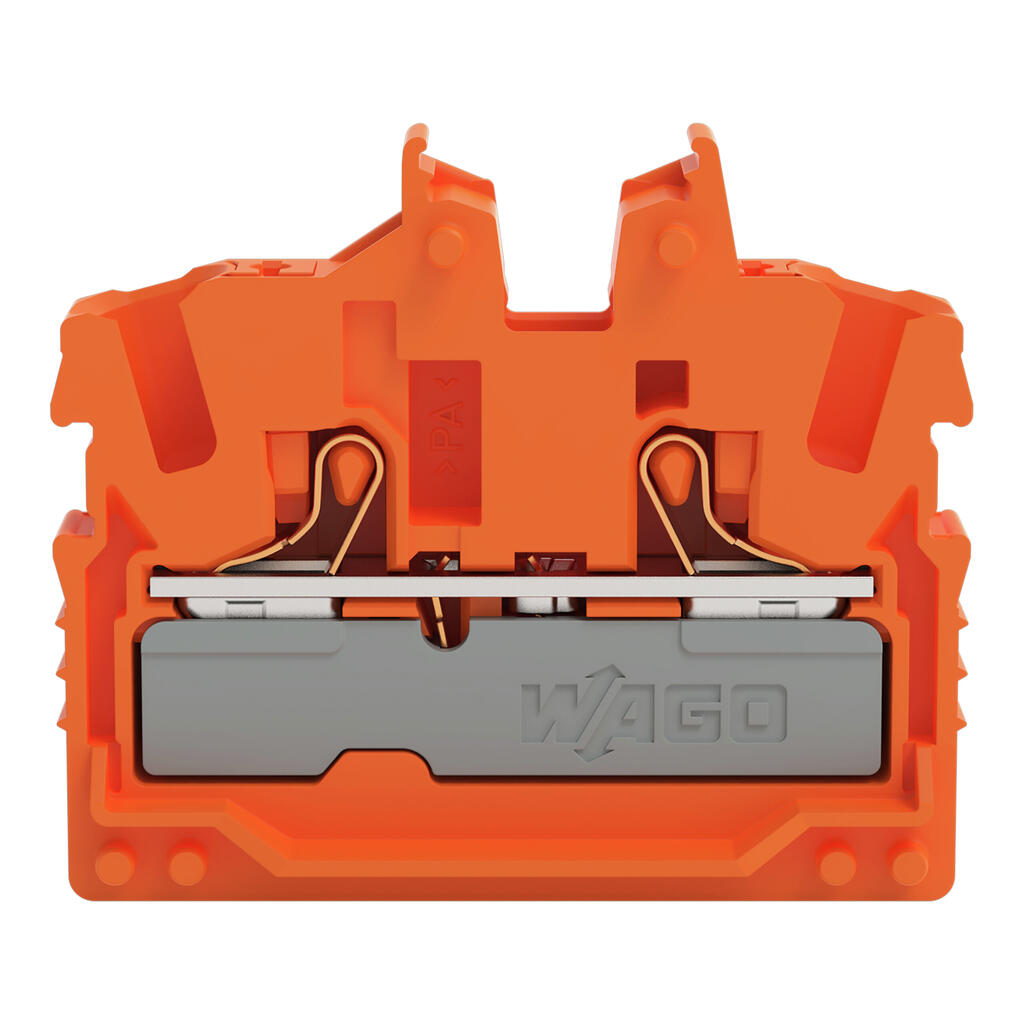

wago 2252-322

Name: 2252-322
Brand: wago
SKU: 2685-2252-322
Availability: InStock
Rating: 5 (1 reviews)

收藏
对比

型号

2252-322

品牌

wago

utmel 编号

2685-2252-322

商品类别

无类别的

封装

交货地

大陆

交期（工作日）

立即发货

ROHS

ECAD

简介

2-conductor miniature through terminal block; with push-button; 2.5 mm2; Center terminal block without snap-in mounting foot, without mounting flange; side and center marking; with test port; Push-in CAGE CLAMP?; 2,50 mm2; orange

起订量

1最小包装量--

添加到询价列表

2252-322 wago 2-conductor miniature through terminal block; with push-button; 2.5 mm2; Center terminal block without snap-in mounting foot, without mounting flange; side and center marking; with test port; Push-in CAGE CLAMP?; 2,50 mm2; orange

请发送询价，我们将立即回复。

库存:

请发送询价，我们将立即回复。

* 联系人姓名

* 电话

* 邮箱

* 公司名称

* 数量

在线咨询

2252-322详情

技术参数

wago 2252-322重要参数规格及、参数值，及相似型号如下：

参数名

参数值

全选
参数名

参数值

全选
Mounting type

none
质量

4.1g
Clamping units

2
Total number of potentials

1
Number of jumper slots

1
Height from the surface

30?mm?/ 1.181?inches
Marking level

Center/side marking
Note (material data)

Information on material specifications can be found here
Material group

I
Insulation material (main housing)

Polyamide (PA66)
Flammability class per UL94

V0
Fire load

0.099MJ
Processing temperature

-35 … +85?°C
Continuous operating temperature

-60 … +105?°C
ETIM 9.0

EC001284
ETIM 8.0

EC001284
ECCN

NO US CLASSIFICATION
PU (SPU)

100?pcs
Packaging type

Box
Country of origin

IN
GTIN

4066966310825
Customs tariff number

85369010000
RoHS Compliance Status

Compliant,No Exemption
Ratings per

IEC/EN 60998-2-2
Rated voltage (III / 3)

800V
Rated impulse voltage (III / 3)

8kV
Current at conductor cross-section (max.) mm2

32A
Legend (ratings)

(III / 3) ? Overvoltage category III / Pollution degree 3
Approvals per

CSA 22.2 No 158
Rated voltage UL (Use Group B)

600V
Rated current UL (Use Group B)

20A
Rated voltage UL (Use Group C)

600V
Rated current UL (Use Group C)

20A
Rated voltage CSA (Use Group B)

600V
Rated current CSA (Use Group B)

20A
Rated voltage CSA (Use Group C)

600V
Rated current CSA (Use Group C)

20A
Reference hazardous areas

See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
Power loss, per pole (potential)

0.766W
Rated current I<sub>N</sub> for specified power loss

24A
Resistance value for specified, current-dependent power loss

0.001Ω
Connection technology

Push-in CAGE CLAMP?
Actuation type

Push-button
Connectable conductor materials

Copper
Nominal cross-section

2.5 mm2
Solid conductor

0.25 … 4?mm2?/ 22 … 12?AWG
Solid conductor; push-in termination

1 … 4?mm2?/ 18 … 12?AWG
Fine-stranded conductor

0.25 … 4?mm2?/ 22 … 12?AWG
Fine-stranded conductor; with insulated ferrule

0.25 … 2.5?mm2?/ 22 … 14?AWG
Fine-stranded conductor; with ferrule; push-in termination

1 … 2.5?mm2?/ 18 … 14?AWG
Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length

10 … 12?mm?/ 0.39 … 0.47?inches
Wiring direction

Front-entry wiring
颜色

orange
深度

35.5?mm?/ 1.398?inches
Number of levels

1
Rated current

24A
宽度

5.2?mm?/ 0.205?inches
