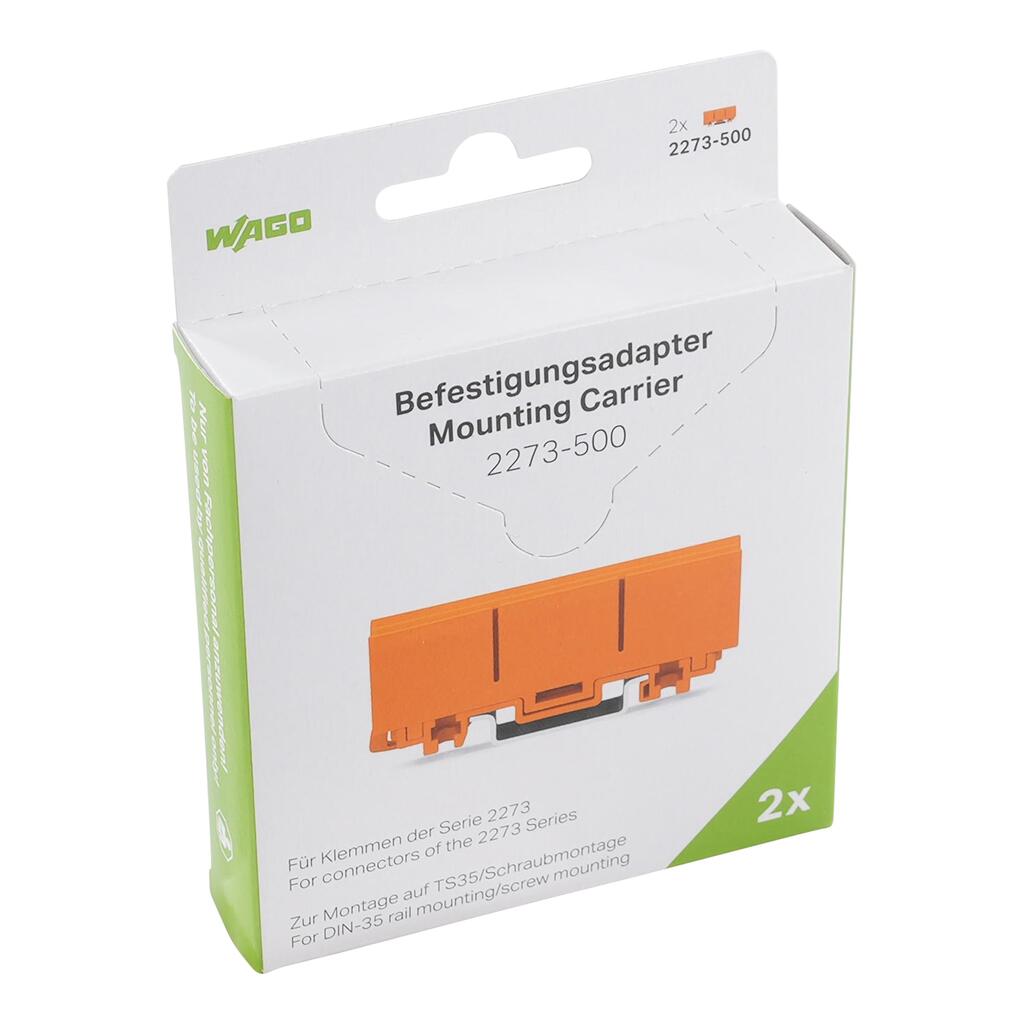

wago 2273-500/995-002

Mounting type

DIN-35 rail

质量

10.3g

Safety management note

NOTICE: Observe installation and safety instructions!Only to be used by electricians!Do not work under voltage/load!Use only for proper use!Observe national regulations/standards/guidelines!Observe technical specifications for the products!Observe the number of permissible potentials!Do not use damaged/dirty components!Observe conductor types, cross-sections and strip lengths!Insert conductor until it hits the product‘s backstop!Use original accessories!To be sold only with installation instructions!

Depth from upper-edge of DIN-rail

21.5 mm / 0.846 inches

Suitable

for single- and double-row connectors (2273 Series)

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Fire load

0.31MJ

ETIM 9.0

EC002848

ETIM 8.0

EC002848

ECCN

NO US CLASSIFICATION

PU (SPU)

24 (2) pcs

Packaging type

Blister foil

Country of origin

DE

GTIN

4066966002058

Customs tariff number

39269097900

RoHS Compliance Status

Compliant,No Exemption

颜色

orange

注意

One single carrier can hold up to 24 clamping units in a very narrow space. Previously, this was only possible using rail-mount terminal blocks.Additional benefits:Mount carrier onto DIN-35 rail or via screws – easily and quicklyAccommodate three 2.5 mm2 (12 AWG) 2273 Series Connectors in a single carrierEasily exchange connectorsLarge marking area for self-adhesive marking strips or for direct marking with permanent felt-tip pen

宽度

18.5 mm / 0.728 inches

高度

72.5 mm / 2.854 inches
