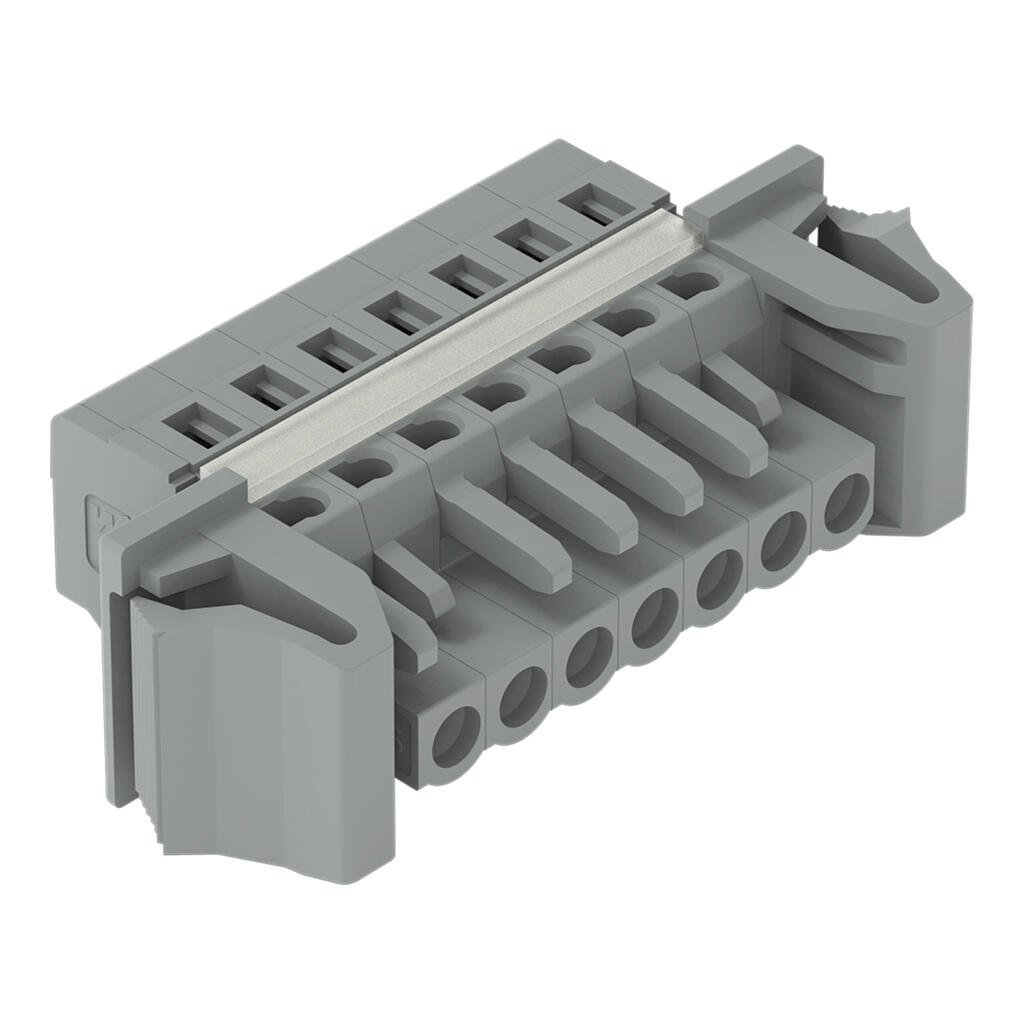

wago 231-102/124-000

Mounting type

Feed-through mounting

Contact plating

Tin

质量

6.4g

Safety information

TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.

Variants

Gold-plated or partially gold-plated contact surfaces

Clamping units

2

Total number of potentials

2

Number of connection types

1

Pin spacing

5?mm?/ 0.197?inches

Variable coding

有

Housing sheet thickness

0.5 … 3?mm?/ 0.02 … 0.118?inches

Anti-rotation protection

有

Contact type (pluggable connector)

Female connector/socket

Connector (connection type)

for conductor

Mismating protection

无

Plugging without loss of pin spacing

无

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Clamping spring material

Chrome-nickel spring steel (CrNi)

Contact Materials

Copper alloy

Fire load

0.183MJ

Limit temperature range

-60 … +85?°C

Processing temperature

-35 … +60?°C

ETIM 9.0

EC002638

ETIM 8.0

EC002638

ECCN

NO US CLASSIFICATION

PU (SPU)

100?pcs

Packaging type

Box

Country of origin

DE

GTIN

4066966277807

Customs tariff number

85366990990

RoHS Compliance Status

Compliant,No Exemption

Ratings per

IEC/EN 60664-1

Rated voltage (III / 3)

320V

Rated impulse voltage (III / 3)

4kV

Rated voltage (III/2)

320V

Rated surge voltage (III/2)

4kV

Nominal voltage (II/2)

630V

Rated surge voltage (II/2)

4kV

Legend (ratings)

(III / 2) ? Overvoltage category III / Pollution degree 2

Approvals per

CSA

Rated voltage UL (Use Group B)

300V

Rated current UL (Use Group B)

15A

Rated voltage UL (Use Group D)

300V

Rated current UL (Use Group D)

10A

Rated voltage (UL 1977)

600V

Rated current UL 1977

15A

Rated voltage CSA (Use Group B)

300V

Rated current CSA (Use Group B)

15A

Rated voltage CSA (Use Group D)

300V

Rated current CSA (Use Group D)

10A

Connection technology

CAGE CLAMP?

Actuation type

Operating tool

Actuation direction 1

Operation parallel to conductor entry

Actuation direction 2

Operation perpendicular to conductor entry

Solid conductor

0.08 … 2.5?mm2?/ 28 … 12?AWG

Fine-stranded conductor

0.08 … 2.5?mm2?/ 28 … 12?AWG

Fine-stranded conductor; with insulated ferrule

0.25 … 1.5?mm2

Fine-stranded conductor; with uninsulated ferrule

0.25 … 2.5?mm2

Strip length

8 … 9?mm?/ 0.31 … 0.35?inches

Conductor entry direction to mating direction

0°

颜色

gray

深度

26.45?mm?/ 1.041?inches

Number of levels

1

Number of poles

2

Rated current

16A

宽度

32?mm?/ 1.26?inches

高度

14.3?mm?/ 0.563?inches
