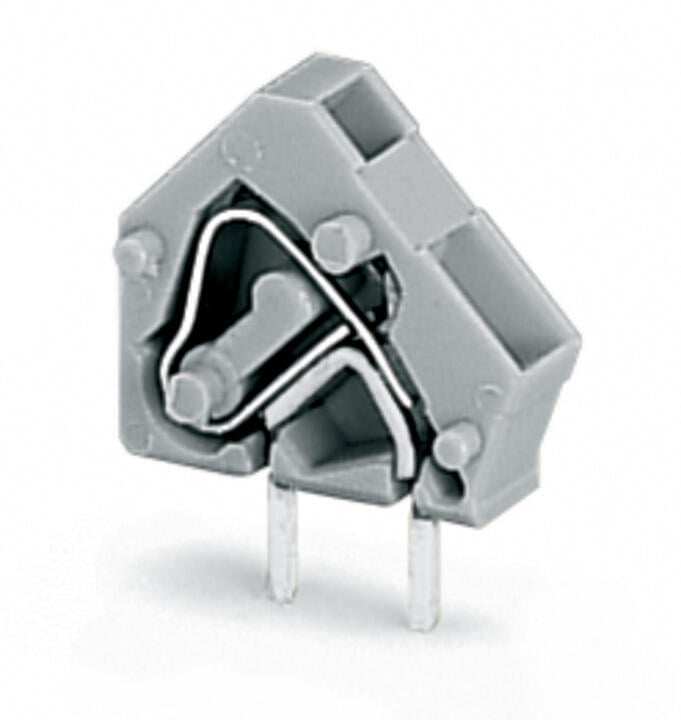

wago 236-1731

Contact plating

Tin

质量

0.9g

Variants

Versions for Ex e II and Ex i

Clamping units

1

Total number of potentials

1

Number of connection types

1

Pin spacing

5/5.08 mm / 0.197/0.2 inches

Height from the surface

13 mm / 0.512 inches

Solder pin length

4mm

Solder pin dimensions

0.7 x 0.7 mm

Drilled hole diameter with tolerance

1.1(+0.1)mm

PCB contact

THT

Solder pin arrangement

within the terminal block (in-line)

Number of solder pins per potential

2

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Clamping spring material

Chrome-nickel spring steel (CrNi)

Contact Materials

Electrolytic copper (ECu)

Conductor connection direction to PCB

45°

Strip length

5 … 6 mm / 0.2 … 0.24 inches

Note (conductor cross-section)

12 AWG: THHN, THWN

Fine-stranded conductor; with uninsulated ferrule

0.25 … 1.5 mm2

Fine-stranded conductor; with insulated ferrule

0.25 … 1.5 mm2

Fine-stranded conductor

0.08 … 2.5 mm2 / 28 … 12 AWG

Solid conductor

0.08 … 2.5 mm2 / 28 … 12 AWG

Actuation type

Operating tool

Connection technology

CAGE CLAMP?

Rated current CSA (Use Group D)

10A

Rated voltage CSA (Use Group D)

300V

Rated current CSA (Use Group B)

15A

Rated voltage CSA (Use Group B)

300V

Rated current UL (Use Group D)

10A

Rated voltage UL (Use Group D)

300V

Rated current UL (Use Group B)

15A

Rated voltage UL (Use Group B)

300V

Approvals per

CSA

Legend (ratings)

(III / 2) ? Overvoltage category III / Pollution degree 2

Rated surge voltage (II/2)

4kV

Nominal voltage (II/2)

630V

Rated surge voltage (III/2)

4kV

Rated voltage (III/2)

320V

Rated impulse voltage (III / 3)

4kV

Rated voltage (III / 3)

250V

Ratings per

IEC/EN 60664-1

RoHS Compliance Status

Compliant,No Exemption

Customs tariff number

85369010000

GTIN

4066966465709

Country of origin

CH

Packaging type

Box

PU (SPU)

600 (100) pcs

ECCN

NO US CLASSIFICATION

ETIM 8.0

EC002643

ETIM 9.0

EC002643

Limit temperature range

-60 … +105 °C

Fire load

0.012MJ

颜色

pink

深度

14 mm / 0.551 inches

Number of levels

1

Number of poles

1

Rated current

24A

宽度

7.2 mm / 0.283 inches

高度

17 mm / 0.669 inches
