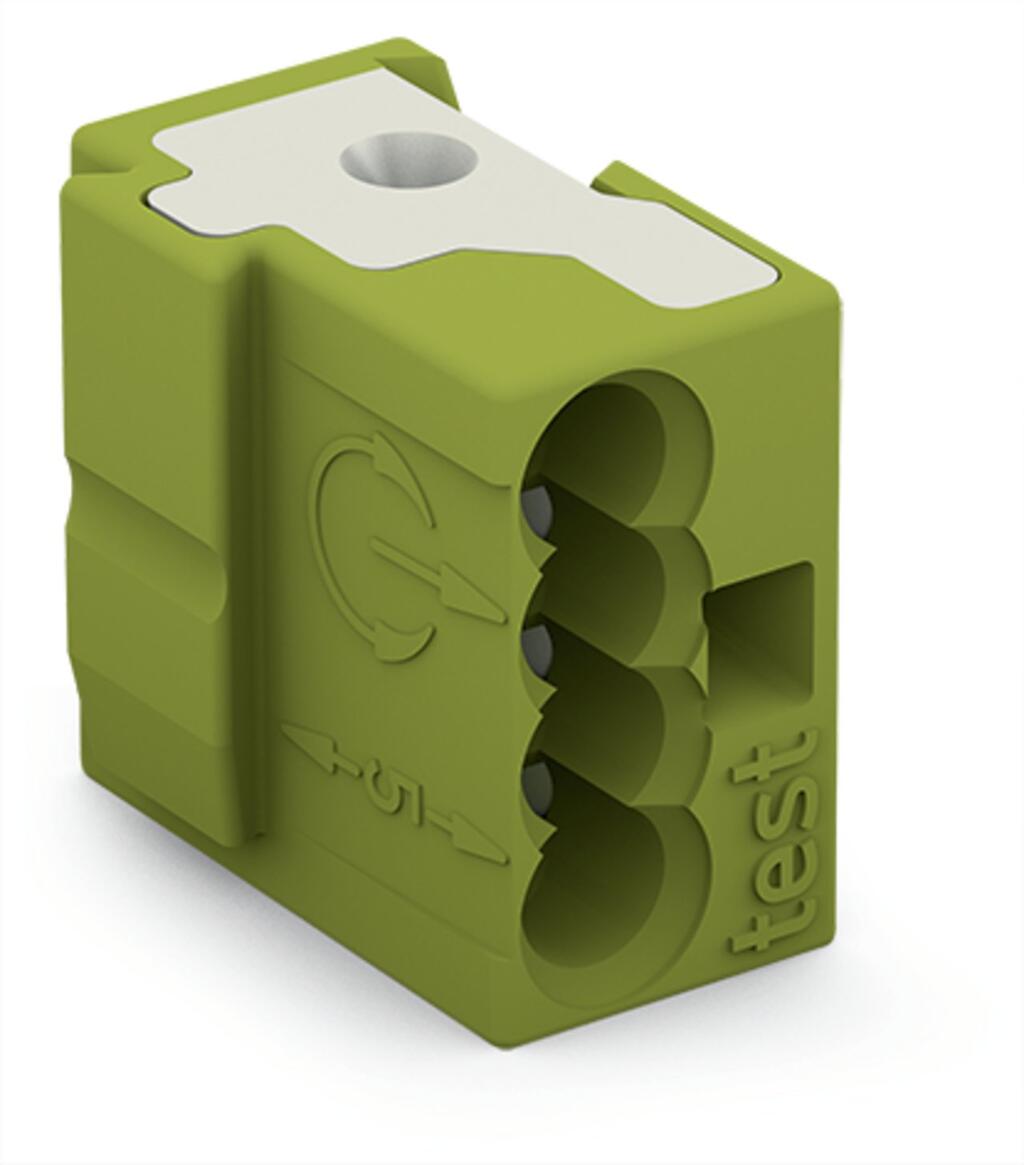

wago 243-726

Name: 243-726
Brand: wago
SKU: 2685-243-726
Availability: InStock
Rating: 5 (1 reviews)

收藏
对比

型号

243-726

品牌

wago

utmel 编号

2685-243-726

商品类别

无类别的

封装

交货地

大陆

交期（工作日）

立即发货

ROHS

ECAD

简介

MICRO PUSH WIRE? PCB connector; 4-conductor; AWG 24 - 18 solid; can be assembled into connector strips via dovetail joints; light gray

起订量

1最小包装量--

添加到询价列表

243-726 wago MICRO PUSH WIRE? PCB connector; 4-conductor; AWG 24 - 18 solid; can be assembled into connector strips via dovetail joints; light gray

请发送询价，我们将立即回复。

库存:

请发送询价，我们将立即回复。

* 联系人姓名

* 电话

* 邮箱

* 公司名称

* 数量

在线咨询

243-726详情

技术参数

PDF文档

wago 243-726重要参数规格及、参数值，及相似型号如下：

参数名

参数值

全选
参数名

参数值

全选
Contact plating

Tin
质量

0.8g
Mating direction to the PCB

90°
Connectable conductor materials

Copper
Solid conductor

0.5 … 1?mm2?/ 24 … 18?AWG
Strip length

5 … 6?mm?/ 0.2 … 0.24?inches
Conductor connection direction to PCB

0°
Connector (connection type)

for PCB
Contact type (pluggable connector)

Female connector/socket
Drilled hole diameter with tolerance

1.2(-0.05 … +0.05)mm
Solder pin diameter

1mm
Solder pin length

4.5mm
Pin spacing

5.75?mm?/ 0.226?inches
Number of connection types

1
Total number of potentials

1
Clamping units

4
Variants

Other pole numbers
Note (material data)

Information on material specifications can be found here
Material group

I
Insulation material (main housing)

Polyamide (PA66)
Flammability class per UL94

V0
Clamping spring material

Copper alloy
Contact Materials

Electrolytic copper (ECu)
Fire load

0.012MJ
Limit temperature range

-60 … +105?°C
Continuous operating temperature

-60?°C
eCl@ss 10.0

27-44-04-01
eCl@ss 9.0

27-44-04-01
ETIM 9.0

EC002643
ETIM 8.0

EC002643
ECCN

NO US CLASSIFICATION
PU (SPU)

400?pcs
Packaging type

box
Country of origin

DE
GTIN

4055143467414
Customs tariff number

85366990990
RoHS Compliance Status

Compliant,No Exemption
Ratings per

IEC/EN 60664-1
Rated voltage (III / 3)

250V
Rated impulse voltage (III / 3)

4kV
Rated voltage (III/2)

320V
Rated surge voltage (III/2)

4kV
Nominal voltage (II/2)

630V
Rated surge voltage (II/2)

4kV
Legend (ratings)

(III / 2) ? Overvoltage category III / Pollution degree 2
Approvals per

CSA
Rated voltage UL (Use Group B)

150V
Rated current UL (Use Group B)

7A
Rated voltage UL (Use Group D)

150V
Rated current UL (Use Group D)

7A
Rated voltage CSA (Use Group B)

150V
Rated current CSA (Use Group B)

7A
Rated voltage CSA (Use Group D)

150V
Rated current CSA (Use Group D)

7A
Connection technology

PUSH WIRE?
颜色

light gray
深度

10.5?mm?/ 0.413?inches
Number of levels

1
Number of poles

1
Rated current

6A
Conductor diameter

0.5 … 1?mm?/ 24 … 18?AWG
高度

10?mm?/ 0.394?inches
宽度

5.75?mm?/ 0.226?inches
