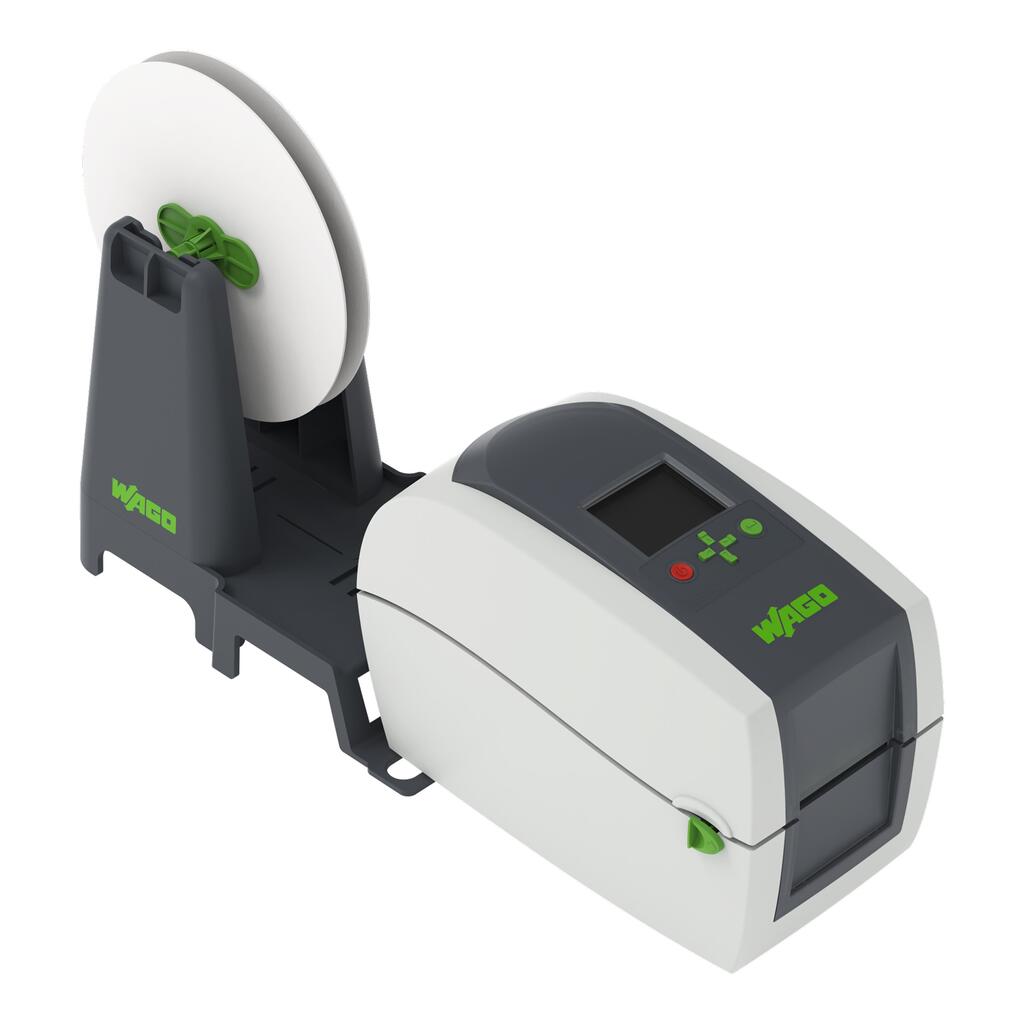

wago 258-5100

质量

3404g

Memory

8,192MB

Supported operating systems

Windows 7

Print head

Glass layer, spring-mounted

Print resolution

300 dpi (12 pixels/mm)

Print speed

Max. 127 mm/s (WAGO recommends 50.8 mm/s)

Print width

47mm

Print length (max.)

762mm

See-through/reflective sensor

Yes, centrally mounted

Safety approvals

CE (EMC)

Operating display

Color TFT LCD with navigation button

Ink ribbon

External roll diameter: 40 mm; Internal core diameter: 12.7 mm (0.5 inch); Max. length: 110 m; Max. width: 58 mm

Ink ribbon length

360.9

Scope of delivery

USB AdapterBluetooth?5.0 Nano (258-5102), tool bag (large) (206-3010), power supply + cable, 2 rollers (258-5006 + 258-5007), 1 reel holder, 1 ink ribbon (258-5005), Smart Script marking software and driver, USB cable, external unwinder, 1 empty cardboard core

Ambient temperature (storage)

-20 … +50 °C

Ambient temperature (operation)

+5 … +40 °C

ETIM 9.0

EC000610

ETIM 8.0

EC000610

ECCN

NO US CLASSIFICATION

PU (SPU)

1 pcs

Packaging type

Box

Country of origin

DE

GTIN

4066966573466

Customs tariff number

84433210000

RoHS Compliance Status

Compliant,No Exemption

深度

245 mm / 9.646 inches

界面

USB type A, (for BT and WiFi connection), USB type B (for PC connection), RS-232, ETHERNET 10/100 Mbps

Operating voltage

100 … 240 VAC, 50 … 60 Hz (automatic adjustment)

高度

175 mm / 6.89 inches

宽度

135 mm / 5.315 inches
