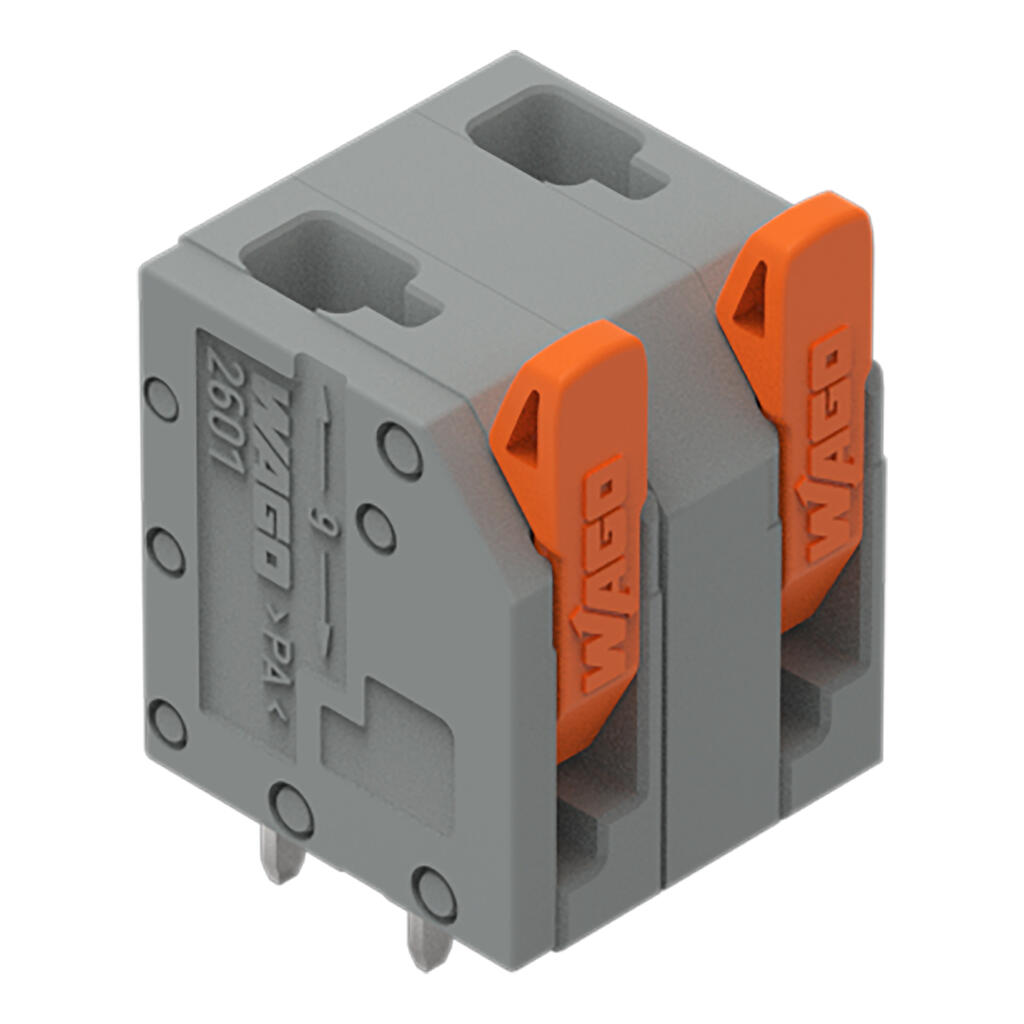

wago 2601-3302

Contact plating

Tin

质量

2.1g

Continuous operating temperature

-60 … +105?°C

ETIM 9.0

EC002643

ETIM 8.0

EC002643

ECCN

NO US CLASSIFICATION

PU (SPU)

150?pcs

Packaging type

Box

Country of origin

PL

GTIN

4066966243222

Rated current CSA (Use Group D)

10A

Connection technology

Push-in CAGE CLAMP?

Actuation type

Lever

Solid conductor

0.14 … 1.5?mm2?/ 26 … 14?AWG

Solid conductor; push-in termination

0.5 … 1.5?mm2?/ 26 … 14?AWG

Fine-stranded conductor

0.2 … 1.5?mm2?/ 26 … 14?AWG

Fine-stranded conductor; with insulated ferrule

0.25 … 0.75?mm2

Fine-stranded conductor; with uninsulated ferrule

0.25 … 1.5?mm2

Note (conductor cross-section)

For conductors (26 AWG) that are not rigid enough, the clamping unit must be opened using a lever.

Strip length

8 … 9?mm?/ 0.31 … 0.35?inches

Conductor connection direction to PCB

90°

Variants

Other pole numbers

Clamping units

2

Total number of potentials

2

Number of connection types

1

Pin spacing

7.5?mm?/ 0.295?inches

Height from the surface

16.6?mm?/ 0.653?inches

Solder pin length

3.6mm

Solder pin dimensions

1 x 0.5?mm

Drilled hole diameter with tolerance

1.2(+0.1)mm

PCB contact

THT

Solder pin arrangement

within the terminal block (in-line)

Number of solder pins per potential

2

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Clamping spring material

Chrome-nickel spring steel (CrNi)

Contact Materials

Electrolytic copper (ECu)

Fire load

0.047MJ

Limit temperature range

-60 … +105?°C

Processing temperature

-35 … +60?°C

Customs tariff number

85369010000

RoHS Compliance Status

Compliant,No Exemption

Ratings per

IEC/EN 60664-1

Rated voltage (III / 3)

500V

Rated impulse voltage (III / 3)

6kV

Rated voltage (III/2)

1000V

Rated surge voltage (III/2)

6kV

Nominal voltage (II/2)

1000V

Rated surge voltage (II/2)

6kV

Legend (ratings)

(III / 2) ? Overvoltage category III / Pollution degree 2

Approvals per

CSA

Rated voltage UL (Use Group B)

300V

Rated current UL (Use Group B)

15A

Rated voltage UL (Use Group C)

150V

Rated current UL (Use Group C)

15A

Rated voltage UL (Use Group D)

300V

Rated current UL (Use Group D)

10A

Rated voltage CSA (Use Group B)

300V

Rated current CSA (Use Group B)

15A

Rated voltage CSA (Use Group C)

150V

Rated current CSA (Use Group C)

15A

Rated voltage CSA (Use Group D)

300V

颜色

gray

深度

12.8?mm?/ 0.502?inches

Number of levels

1

Number of poles

2

Rated current

17.5A

宽度

14.8?mm?/ 0.581?inches

高度

20.2?mm?/ 0.794?inches
