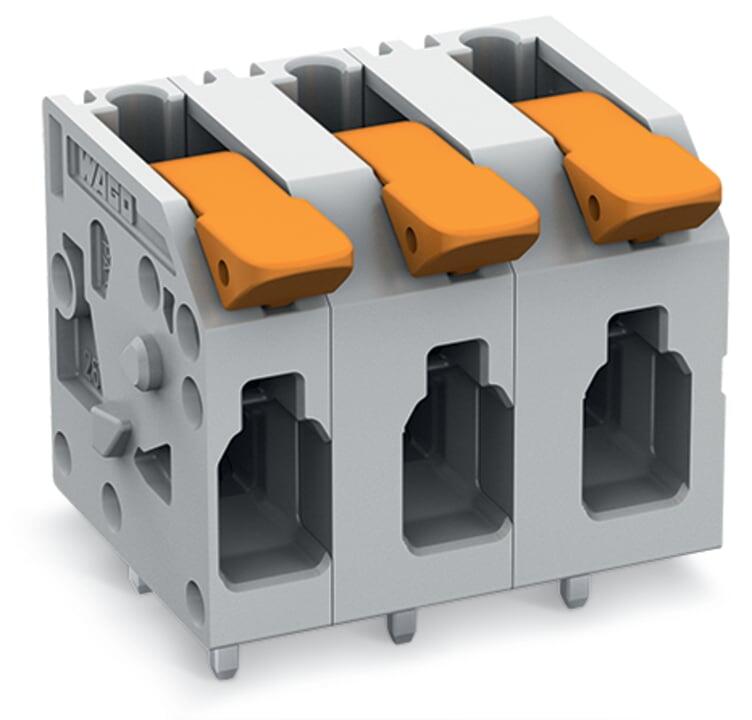

wago 2604-1304/000-004

Contact plating

Tin

质量

7.4g

Variants

Other pole numbers

Clamping units

4

Total number of potentials

4

Number of connection types

1

Pin spacing

7.5 mm / 0.295 inches

Height from the surface

16.7 mm / 0.657 inches

Solder pin length

4mm

Solder pin dimensions

0.8 x 1 mm

Drilled hole diameter with tolerance

1.3(+0.1)mm

PCB contact

THT

Solder pin arrangement

over the entire terminal strip (in-line)

Number of solder pins per potential

2

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Clamping spring material

Chrome-nickel spring steel (CrNi)

Contact Materials

Electrolytic copper (ECu)

Fire load

0.11MJ

ActuatorColor

orange

Limit temperature range

-60 … +105 °C

Processing temperature

-35 … +60 °C

Continuous operating temperature

-60 … +105 °C

ETIM 9.0

EC002643

ETIM 8.0

EC002643

ECCN

NO US CLASSIFICATION

PU (SPU)

70 pcs

Packaging type

Box

Country of origin

CH

GTIN

4066966477313

Customs tariff number

85369010000

RoHS Compliance Status

Compliant,No Exemption

Ratings per

IEC/EN 60664-1

Rated voltage (III / 3)

630V

Rated impulse voltage (III / 3)

6kV

Rated voltage (III/2)

1000V

Rated surge voltage (III/2)

6kV

Nominal voltage (II/2)

1000V

Rated surge voltage (II/2)

6kV

Legend (ratings)

(III / 2) ? Overvoltage category III / Pollution degree 2

Approvals per

CSA

Rated voltage UL (Use Group B)

300V

Rated current UL (Use Group B)

20A

Rated voltage UL (Use Group C)

300V

Rated current UL (Use Group C)

20A

Rated voltage UL (Use Group D)

600V

Rated current UL (Use Group D)

5A

Rated voltage CSA (Use Group B)

300V

Rated current CSA (Use Group B)

20A

Rated voltage CSA (Use Group C)

300V

Rated current CSA (Use Group C)

20A

Rated voltage CSA (Use Group D)

600V

Rated current CSA (Use Group D)

5A

Connection technology

Push-in CAGE CLAMP?

Actuation type

Lever

Solid conductor

0.2 … 4 mm2 / 24 … 12 AWG

Fine-stranded conductor

0.2 … 4 mm2 / 24 … 12 AWG

Fine-stranded conductor; with insulated ferrule

0.25 … 2.5 mm2

Fine-stranded conductor; with uninsulated ferrule

0.25 … 2.5 mm2

Fine-stranded conductor; with twin ferrule

0.25 … 1.5 mm2

Strip length

9 … 11 mm / 0.35 … 0.43 inches

Conductor connection direction to PCB

0°

颜色

black

深度

19.2 mm / 0.756 inches

Number of levels

1

Number of poles

4

Rated current

32A

宽度

29.9 mm / 1.177 inches

高度

20.7 mm / 0.815 inches
