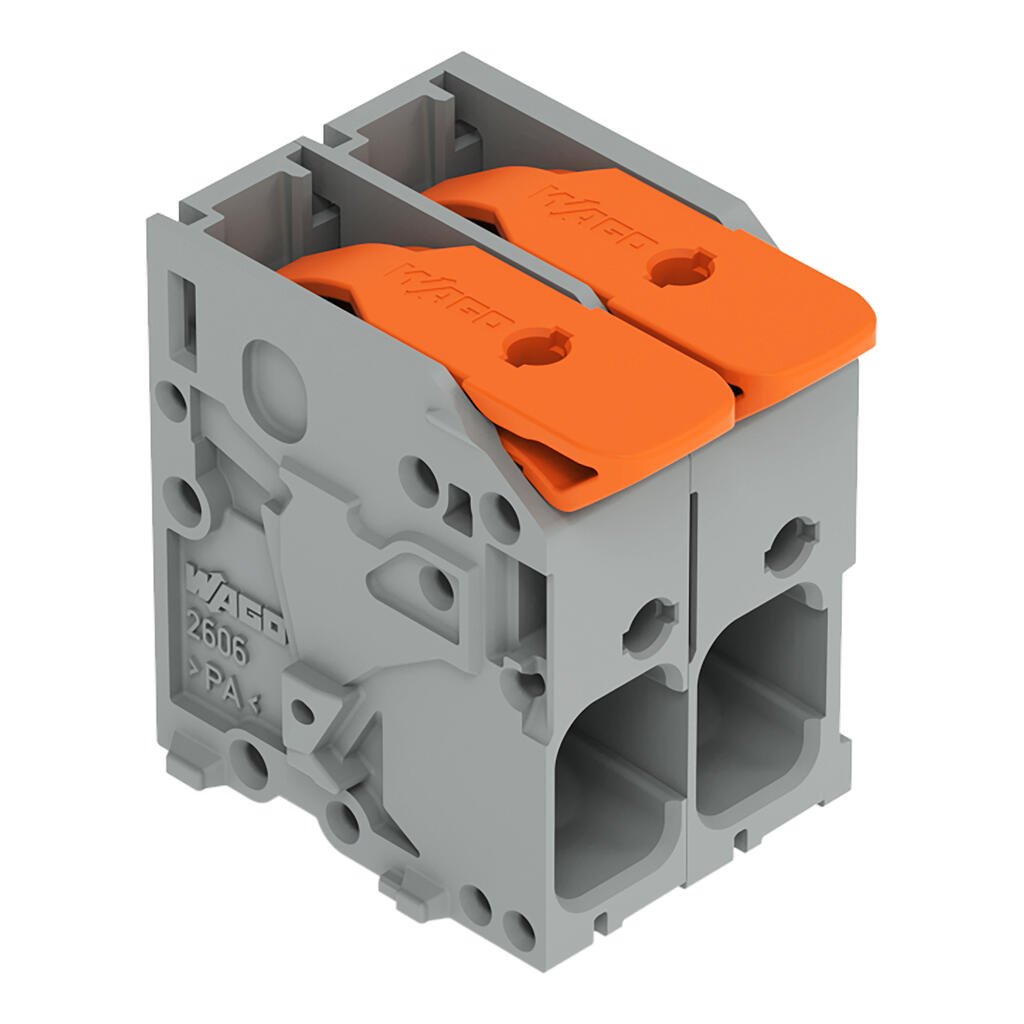

wago 2606-1115/020-000

Contact plating

Tin

质量

57.1g

Variants

Other pole numbers

Clamping units

15

Total number of potentials

15

Number of connection types

1

Pin spacing

7.5 mm / 0.295 inches

Fine-stranded conductor; with insulated ferrule

0.25 … 6 mm2

Fine-stranded conductor

0.2 … 10 mm2 / 24 … 8 AWG

Solid conductor

0.2 … 10 mm2 / 24 … 8 AWG

Actuation type

Lever

Connection technology

Push-in CAGE CLAMP?

Rated current CSA (Use Group C)

31A

Rated voltage CSA (Use Group C)

600V

Rated current CSA (Use Group B)

31A

Rated voltage CSA (Use Group B)

600V

Rated current UL (Use Group C)

31A

Rated voltage UL (Use Group C)

600V

Rated current UL (Use Group B)

31A

Rated voltage UL (Use Group B)

600V

Approvals per

CSA

Legend (ratings)

(III / 2) ? Overvoltage category III / Pollution degree 2

Rated surge voltage (II/2)

8kV

Nominal voltage (II/2)

1000V

Rated surge voltage (III/2)

8kV

Rated voltage (III/2)

1000V

Rated impulse voltage (III / 3)

8kV

Rated voltage (III / 3)

800V

Ratings per

IEC/EN 60664-1

RoHS Compliance Status

Compliant,No Exemption

Customs tariff number

85369010000

GTIN

4066966428629

Country of origin

PL

Packaging type

Box

PU (SPU)

9 pcs

ECCN

NO US CLASSIFICATION

ETIM 8.0

EC002643

ETIM 9.0

EC002643

Continuous operating temperature

-60 … +105 °C

Processing temperature

-35 … +60 °C

Limit temperature range

-60 … +105 °C

ActuatorColor

orange

Fire load

0.934MJ

Contact Materials

Electrolytic copper (ECu)

Clamping spring material

Chrome-nickel spring steel (CrNi)

Flammability class per UL94

V0

Insulation material (main housing)

Polyamide (PA66)

Material group

I

Note (material data)

Information on material specifications can be found here

Number of solder pins per potential

1

Solder pin arrangement

over the entire terminal strip (staggered)

PCB contact

THT

Drilled hole diameter with tolerance

2(+0.1)mm

Solder pin dimensions

1.5 x 1.2 mm

Solder pin length

4mm

Height from the surface

24 mm / 0.945 inches

Fine-stranded conductor; with uninsulated ferrule

0.25 … 6 mm2

Fine-stranded conductor; with twin ferrule

0.25 … 2.5 mm2

Strip length

11 … 13 mm / 0.43 … 0.51 inches

Conductor connection direction to PCB

0°

颜色

gray

深度

24.3 mm / 0.957 inches

Number of levels

1

Number of poles

15

Rated current

41A

高度

28 mm / 1.102 inches

宽度

91.5 mm / 3.602 inches
