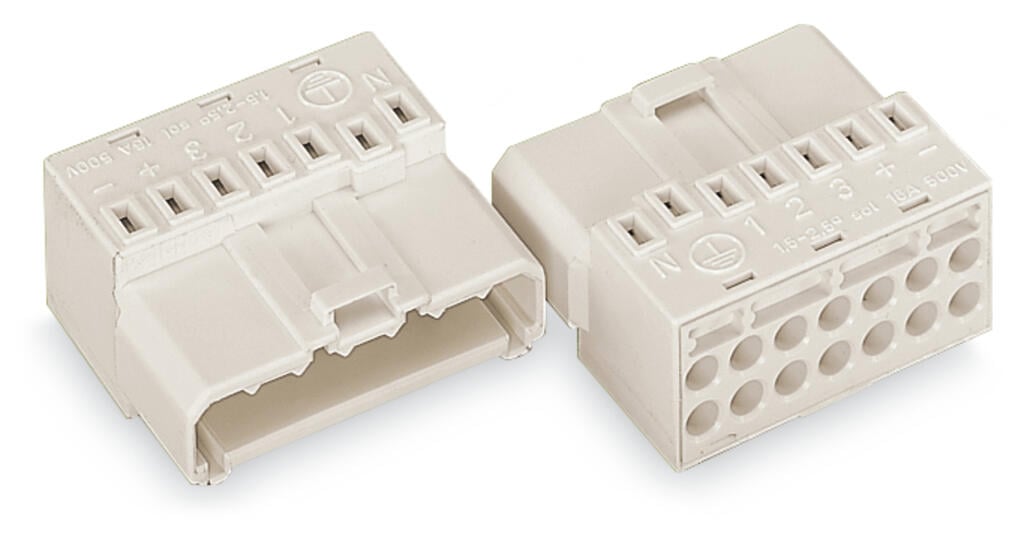

wago 267-516/002-000

Contact plating

Tin

质量

19.5g

Number of connection types

1

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Clamping spring material

Chrome-nickel spring steel (CrNi)

Contact Materials

Electrolytic copper (ECu)

Fire load

0.306MJ

Processing temperature

-35 … +85 °C

Continuous operating temperature

-60 … +105 °C

Temperature stability

105°C

ETIM 9.0

EC002560

ETIM 8.0

EC000458

ECCN

NO US CLASSIFICATION

PU (SPU)

50?pcs

Packaging type

Box

Country of origin

PL

GTIN

4066966288940

Customs tariff number

85366990990

RoHS Compliance Status

Compliant,No Exemption

Ratings per

IEC/EN 61984

Rated voltage (III/2)

500V

Rated surge voltage (III/2)

4kV

Legend (ratings)

(III / 2) ? Overvoltage category III / Pollution degree 2

颜色

white

Number of poles

7

Rated current

16A
