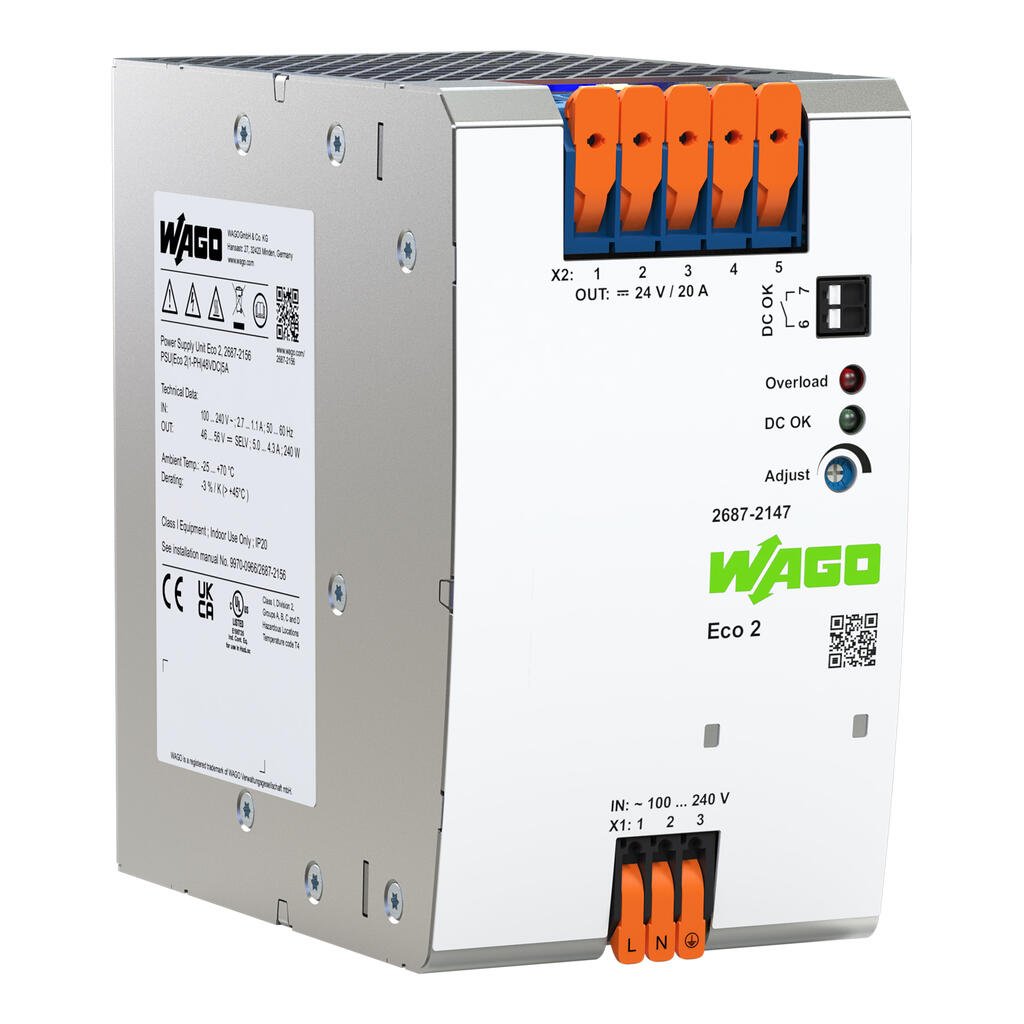

wago 2687-2147

Mounting type

DIN-35 rail

Isolation voltage (pri.-sec., AC)

3,510V

Isolation voltage (pri.-PE, AC)

2,200V

Isolation voltage (sec.-PE)

DC 0.5?kV

Isolation voltage (sec.-signal)

DC 0.5?kV

Protection class

I

Pollution degree

2

Transient suppression (primary)

有

GTIN

4066966433074

Customs tariff number

85044083900

RoHS Compliance Status

Compliant,No Exemption

Phases

1

Nominal input voltage [V]

1 x AC?100 … 240?V

Input voltage range

1 x AC?90 … 264?V

Nominal mains frequency range

47 … 63?Hz

Inrush current

≤?20?A (after 1 ms)

Power factor

≥?0.9? (230?VAC)

Nominal output voltage [V]

DC?24?V (SELV/PELV)

Nominal output current I_{o nom}

20?A

Nominal output power

480W

Deviation

≤?1?%

Residual ripple

≤?75?mV (peak-to-peak)

Overload behavior

Constant power up to 125 %; shutdown and automatic restart in the event of a short circuit

Signaling

Optical status indication (overload)

Power loss P_l

≤?3?W (230 VAC; no load)

Efficiency (typ.)

92?%

ETIM 8.0

EC002540

ETIM 9.0

EC002540

Standards/specifications

EN 61010-1

Conformity marking

CE

Operating altitude (max.)

3000m

Climatic category

3K3 (per EN 60721)

Derating

≤ ?3 %/K

Relative humidity

5 … 96?% (no condensation permissible)

Ambient temperature (storage)

-40 … +85 °C

Ambient temperature (operation)

-25 … +70 °C

Depth from upper-edge of DIN-rail

130?mm?/ 5.118?inches

Strip length 2

11 … 13?mm?/ 0.43 … 0.51?inches

Fine-stranded conductor; with uninsulated ferrule 2

0.25 … 6?mm2

Fine-stranded conductor; with insulated ferrule 2

0.25 … 6?mm2

Fine-stranded conductor 2

0.2 … 10?mm2?/ 24 … 8?AWG

Solid conductor 2

0.2 … 10?mm2?/ 24 … 8?AWG

WAGO connector 2

WAGO 2606 Series

Connection technology 2

Push-in CAGE CLAMP?

Connection type 2

Output

Strip length

9 … 11?mm?/ 0.35 … 0.43?inches

Fine-stranded conductor; with uninsulated ferrule

0.25 … 2.5?mm2

Fine-stranded conductor; with insulated ferrule

0.25 … 2.5?mm2

Fine-stranded conductor

0.2 … 4?mm2?/ 24?AWG

Solid conductor

0.2 … 4?mm2?/ 24 … 12?AWG

WAGO connector

WAGO 2604 Series

Connection technology

Push-in CAGE CLAMP?

Connection type 1

Input

MTBF

> 500,000 h (at 25 °C per IEC 61709)

Series operation

有

Parallel operation

有

Open-circuit-proof

有

ECCN

NO US CLASSIFICATION

PU (SPU)

1 pcs

Packaging type

Box

Country of origin

CN

Output voltage range

DC 24 … 26.4?V

高度

130?mm?/ 5.118?inches

宽度

75?mm?/ 2.95?inches
