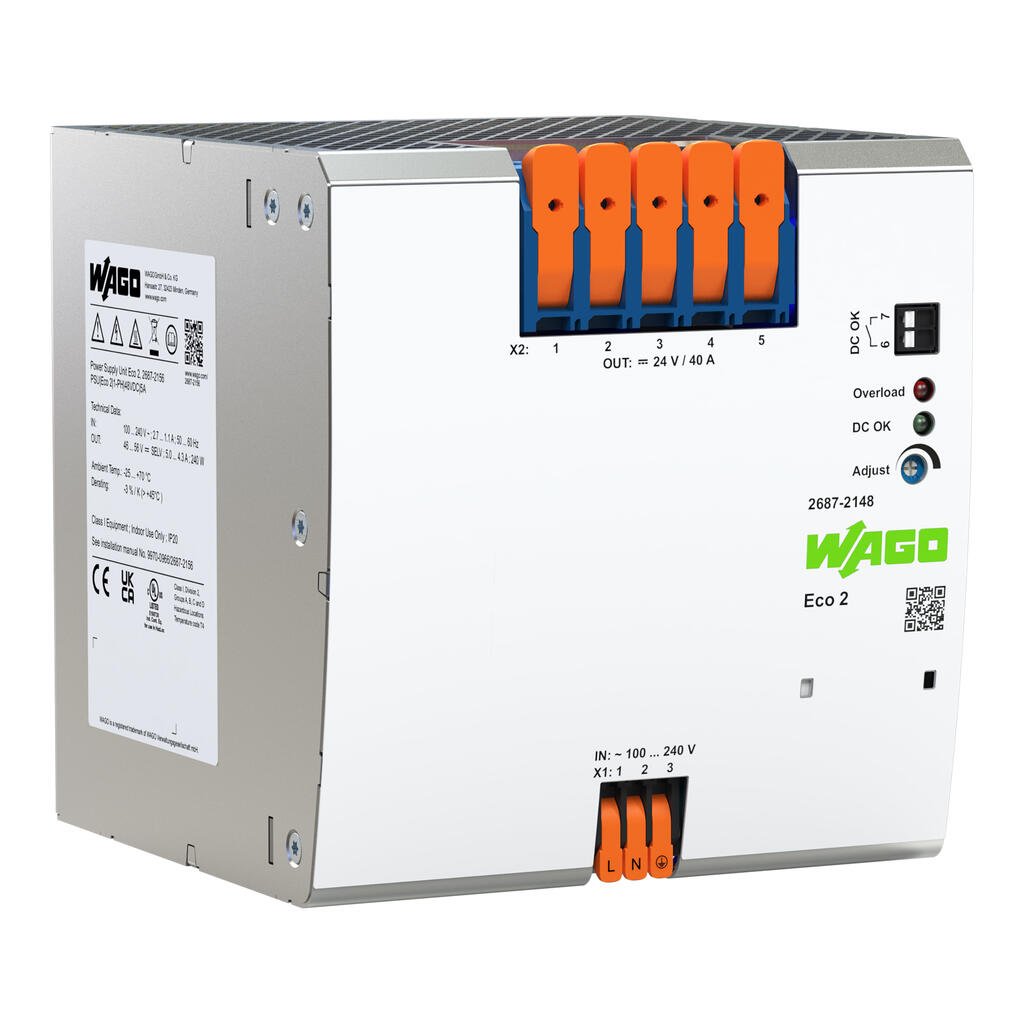

wago 2687-2148

Mounting type

DIN-35 rail

质量

2000g

Isolation voltage (pri.-sec., AC)

3,510V

Isolation voltage (pri.-PE, AC)

2,200V

Isolation voltage (sec.-PE)

DC 0.5 kV

Isolation voltage (sec.-signal)

DC 0.5 kV

Protection class

I

Pollution degree

2

Transient suppression (primary)

有

Open-circuit-proof

有

Parallel operation

有

Series operation

有

Connection type 1

Input

Connection technology

Push-in CAGE CLAMP?

WAGO connector

WAGO 2604 Series

Solid conductor

0.2 … 4 mm2 / 24 … 12 AWG

Fine-stranded conductor

0.2 … 4 mm2 / 24 … 12 AWG

Fine-stranded conductor; with insulated ferrule

0.25 … 2.5 mm2

Fine-stranded conductor; with uninsulated ferrule

0.25 … 2.5 mm2

Strip length

9 … 11 mm / 0.35 … 0.43 inches

Connection type 2

Output

Connection technology 2

Push-in CAGE CLAMP?

WAGO connector 2

WAGO 2616 Series

Solid conductor 2

0.75 … 16 mm2 / 18 … 4 AWG

Fine-stranded conductor 2

0.75 … 25 mm2 / 18 … 4 AWG

Fine-stranded conductor; with insulated ferrule 2

0.75 … 16 mm2

Fine-stranded conductor; with uninsulated ferrule 2

0.75 … 16 mm2

Strip length 2

18 … 20 mm / 0.71 … 0.79 inches

Connection type 3

Signaling

Connection technology 3

Push-in CAGE CLAMP?

Solid conductor 3

0.14 … 1.5 mm2 / 28 … 16 AWG

Fine-stranded conductor 3

0.14 … 1.5 mm2 / 26 … 14 AWG

Depth from upper-edge of DIN-rail

130 mm / 5.118 inches

Ambient temperature (operation)

-25 … +70 °C

Ambient temperature (storage)

-40 … +85 °C

Relative humidity

5 … 96 % (no condensation permissible)

Derating

≤ ?3 %/K

Climatic category

3K3 (per EN 60721)

Operating altitude (max.)

3000m

Conformity marking

CE

Standards/specifications

EN 61010-1

ETIM 9.0

EC002540

ETIM 8.0

EC002540

ECCN

NO US CLASSIFICATION

PU (SPU)

1 pcs

Packaging type

Box

Country of origin

CN

GTIN

4066966433081

Customs tariff number

85044083900

RoHS Compliance Status

Compliant,No Exemption

Phases

1

Nominal input voltage [V]

1 x AC 100 … 240 V

Input voltage range

1 x AC 90 … 264 V

Nominal mains frequency range

47 … 63 Hz

Input current I_i

≤ 4.4 A (230 VAC; nominal load); ≤ 10.5 A (100 VAC; nominal load)

Inrush current

≤ 25 A (after 1 ms)

Power factor

≥ 0.9 (230 VAC)

Nominal output voltage [V]

DC 24 V (SELV/PELV)

Nominal output current I_{o nom}

40 A

Nominal output power

960W

Deviation

≤ 1 %

Residual ripple

≤ 75 mV (peak-to-peak)

Overload behavior

Constant power up to 120 % for 3 s, then 100 % constant current up to boost available again; shutdown and automatic restart in the event of a short circuit

Signaling

Optical status indication (DC OK, green LED)

Power loss P_l

≤ 3 W; ≤ 53 W (nominal load)

Efficiency (typ.)

94.8 %

Internal fuse

T 20 A / 250 VAC

Output voltage range

DC 24 … 26.4 V

宽度

125 mm / 4.92 inches

高度

130 mm / 5.118 inches
