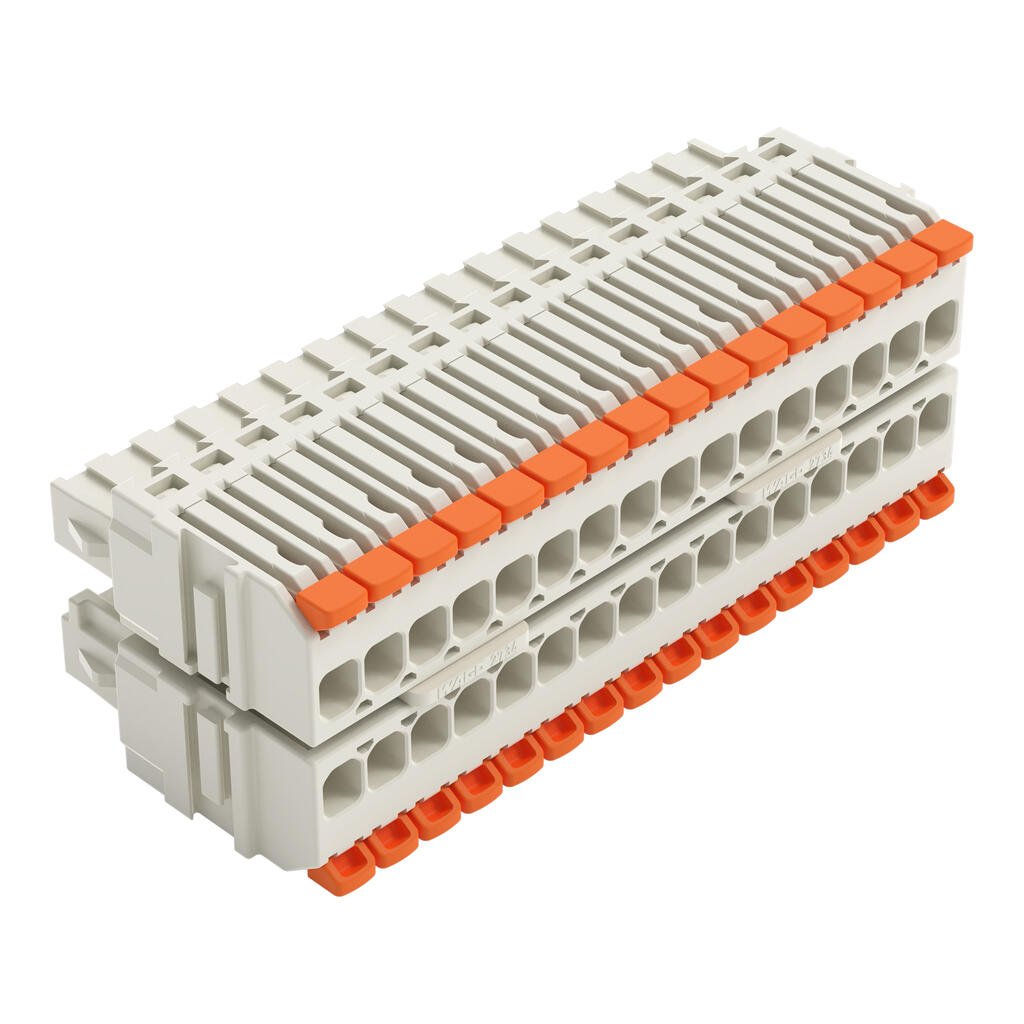

wago 2734-1516/310-000

Contact plating

Tin

质量

26.1g

Safety information

TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.

Variants

Other pole numbers

Clamping units

32

Total number of potentials

32

Number of connection types

1

Pin spacing

3.5 mm / 0.138 inches

Contact type (pluggable connector)

Female connector/socket

Connector (connection type)

for conductor

Mismating protection

有

Plugging without loss of pin spacing

无

Note (material data)

Information on material specifications can be found here

Material group

I

Solid conductor

0.14 … 1.5 mm2 / 26 … 14 AWG

Solid conductor; push-in termination

0.34 … 1.5 mm2 / 22 … 14 AWG

Fine-stranded conductor

0.14 … 1.5 mm2 / 26 … 14 AWG

Fine-stranded conductor; with insulated ferrule

0.14 … 0.75 mm2

Fine-stranded conductor; with uninsulated ferrule

0.14 … 1 mm2

Strip length

9 … 10 mm / 0.35 … 0.39 inches

Conductor entry direction to mating direction

0°

Actuation type

Lever

Connection technology

Push-in CAGE CLAMP?

Rated current CSA (Use Group D)

10A

Rated voltage CSA (Use Group D)

300V

Rated current CSA (Use Group B)

10A

Rated voltage CSA (Use Group B)

300V

Rated current UL (Use Group D)

10A

Rated voltage UL (Use Group D)

300V

Rated current UL (Use Group B)

10A

Rated voltage UL (Use Group B)

300V

Approvals per

CSA

Legend (ratings)

(III / 2) ? Overvoltage category III / Pollution degree 2

Rated surge voltage (II/2)

2.5kV

Nominal voltage (II/2)

320V

Rated surge voltage (III/2)

2.5kV

Rated voltage (III/2)

160V

Rated impulse voltage (III / 3)

2.5kV

Rated voltage (III / 3)

160V

Ratings per

IEC/EN 60664-1

RoHS Compliance Status

Compliant,No Exemption

Customs tariff number

85366990990

GTIN

4066966463088

Country of origin

PL

Packaging type

Box

PU (SPU)

25 pcs

ECCN

NO US CLASSIFICATION

ETIM 8.0

EC002638

ETIM 9.0

EC002638

Processing temperature

-35 … +60 °C

Limit temperature range

-60 … +100 °C

Fire load

0.4MJ

Contact Materials

Copper alloy

Clamping spring material

Chrome-nickel spring steel (CrNi)

Flammability class per UL94

V0

Insulation material (main housing)

Polyamide (PA66)

颜色

light gray

深度

24.6 mm / 0.969 inches

Number of levels

2

Number of poles

32

Rated current

10A

宽度

58.4 mm / 2.299 inches

高度

21 mm / 0.827 inches
