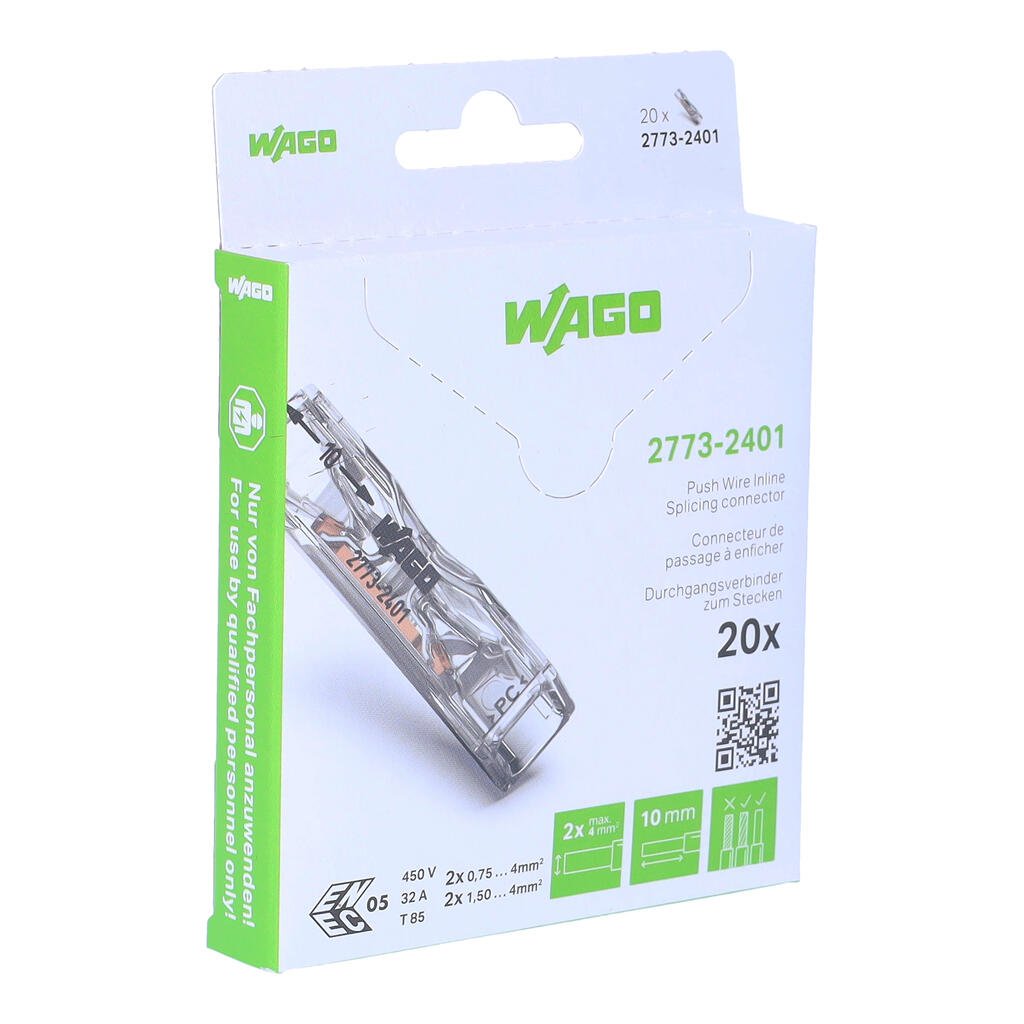

wago 2773-2401/995-020

Name: 2773-2401/995-020
Brand: wago
SKU: 2685-2773-2401/995-020
Availability: InStock
Rating: 5 (1 reviews)

收藏
对比

型号

2773-2401/995-020

品牌

wago

utmel 编号

2685-2773-2401/995-020

商品类别

无类别的

封装

交货地

大陆

交期（工作日）

立即发货

ROHS

ECAD

简介

PUSH WIRE? Inline Splicing Connector; for solid and stranded conductors; max. 4 mm2; 2-conductor; transparent housing; Transparent cover; Surrounding air temperature: max 85°C (T85); 4,00 mm2; transparent

起订量

1最小包装量--

添加到询价列表

2773-2401/995-020 wago PUSH WIRE? Inline Splicing Connector; for solid and stranded conductors; max. 4 mm2; 2-conductor; transparent housing; Transparent cover; Surrounding air temperature: max 85°C (T85); 4,00 mm2; transparent

请发送询价，我们将立即回复。

库存:

请发送询价，我们将立即回复。

* 联系人姓名

* 电话

* 邮箱

* 公司名称

* 数量

在线咨询

2773-2401/995-020详情

技术参数

wago 2773-2401/995-020重要参数规格及、参数值，及相似型号如下：

参数名

参数值

全选
参数名

参数值

全选
Contact plating

Tin
质量

1.5g
Safety management note

NOTICE: Observe installation and safety instructions!Only to be used by electricians!Do not work under voltage/load!Use only for proper use!Observe national regulations/standards/guidelines!Observe technical specifications for the products!Observe the number of permissible potentials!Do not use damaged/dirty components!Observe conductor types, cross-sections and strip lengths!Insert conductor until it hits the product‘s backstop!Use original accessories!To be sold only with installation instructions!
Clamping units

2
Total number of potentials

1
Note (material data)

Information on material specifications can be found here
Cover color

transparent
Material group

IIIa
Insulation material (main housing)

Polycarbonate (PC)
Flammability class per UL94

V2
Clamping spring material

Chrome-nickel spring steel (CrNi)
Contact Materials

Electrolytic copper (ECu)
Fire load

0.038MJ
Weight of insulation material

0.8g
Ambient temperature (operation)

+85 °C
Processing temperature

-35 … +60 °C
Continuous operating temperature

105 °C
ETIM 9.0

EC000446
ETIM 8.0

EC000446
ECCN

NO US CLASSIFICATION
PU (SPU)

360 (20) pcs
Packaging type

Blister foil
Country of origin

DE
GTIN

4066966349115
Customs tariff number

85369010000
RoHS Compliance Status

Compliant,No Exemption
Ratings per

EN 60664
Nominal voltage (II/2)

450V
Rated surge voltage (II/2)

4kV
Legend (ratings)

(II / 2) ? Overvoltage category II / Pollution degree 2
Approvals per

UL 486C
Rated voltage UL (Use Group C)

600V
Rated current UL (Use Group C)

20A
Connection technology

PUSH WIRE?
Actuation type

Push-in
Solid conductor

0.75 … 4 mm2 / 18 … 12 AWG
Stranded conductor

1.5 … 4 mm2
Fine-stranded conductor; with insulated ferrule

0.75 … 1.5 mm2 / 18 … 16 AWG
Fine-stranded conductor; with uninsulated ferrule

1 … 1.5 mm2 / 16 AWG
Strip length

10 … 11 mm / 0.39 … 0.43 inches
Wiring direction

Side-entry wiring
颜色

transparent
深度

29.5 mm / 1.161 inches
Rated current

32A
Conductor diameter

1.6 … 2 mm / 18 … 12 AWG
宽度

6.15 mm / 0.242 inches
高度

6.8 mm / 0.268 inches
