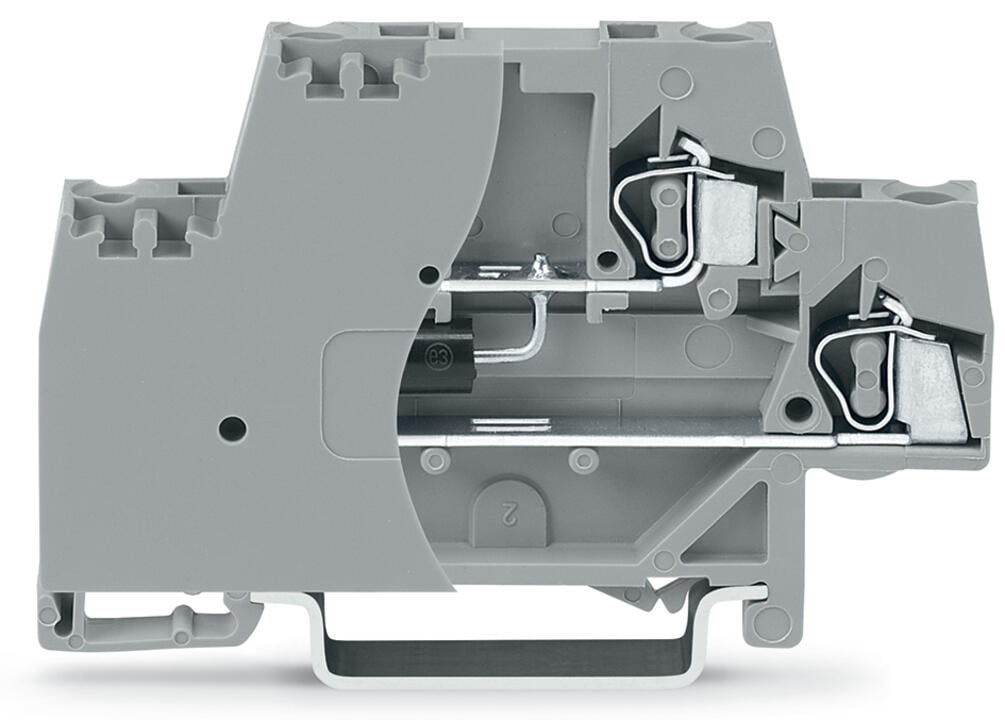

wago 280-944/281-595

Mounting type

DIN-35 rail

质量

14.1g

Nominal operating voltage

AC?230?V

Maximum continuous voltage

AC?253?V

Rated continuous current

20A

Nominal discharge current (8/20?µs) (line)

14?A

Protection level (8/20?µs)

≤?AC 706?V

Connections (number)

4

Connection technology

CAGE CLAMP?

Solid conductor

0.08 … 2.5?mm2?/ 28 … 14?AWG

Fine-stranded conductor

0.08 … 2.5?mm2?/ 28 … 14?AWG

Strip length

8 … 9?mm?/ 0.31 … 0.35?inches

Depth from upper-edge of DIN-rail

39.5 mm / 1.555 inches

Insulation material (main housing)

Polyamide (PA66)

Material group

I

Flammability class per UL94

V0

Fire load

0.348MJ

Processing temperature

-35 … +85?°C

Product Group

1 (Rail Mounted Terminal Blocks)

eCl@ss 10.0

27-14-11-27

eCl@ss 9.0

27-14-11-27

ETIM 9.0

EC000903

ETIM 8.0

EC000903

ECCN

NO US CLASSIFICATION

PU (SPU)

50?(1)?pcs

Packaging type

box

Country of origin

DE

GTIN

4050821515005

Customs tariff number

85369010000

CAS-No.

7439-92-1

REACH Candidate List Substance

Lead

RoHS Compliance Status

Compliant,With Exemption

RoHS Exemption

7(a)

SCIP notification number (Bulgaria)

277da625-f723-4c5d-b11d-166bcd7c05c0

SCIP notification number (Czech Republic)

92585115-3cee-41e6-82d7-bdc10b723737

颜色

gray

电容量

≤?400?pF

设计

with end plate

宽度

10?mm?/ 0.394?inches

高度

64 mm / 2.52 inches
