首页 未分类 无类别的 285-147/999-950
285-147/999-950
285-147/999-950

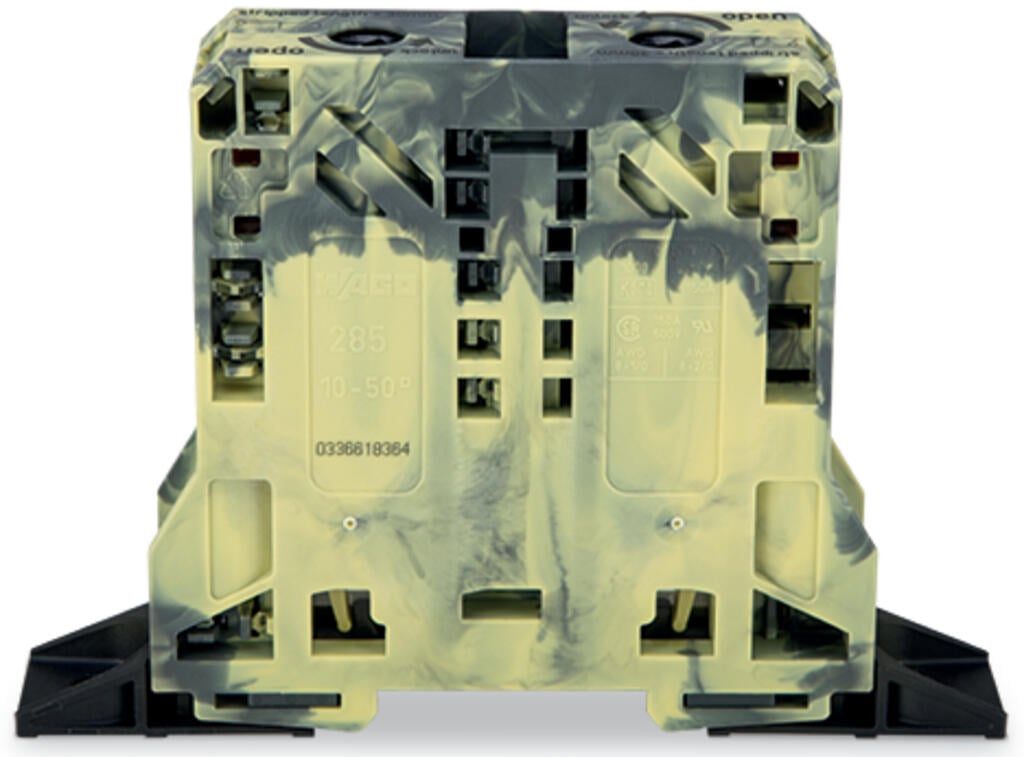

注：图像仅供参考，请参阅产品规格

技术文档 技术文档

PDF列表 PDF文档列表
免费送样

wago 285-147/999-950

  • 收藏
  • 对比

型号

285-147/999-950

品牌

wago

utmel 编号

2685-285-147/999-950

商品类别

无类别的

封装

--

交货地

大陆

交期（工作日）

立即发货

ROHS

ECAD

简介

2-conductor through terminal block; 50 mm2; suitable for Ex e II applications; lateral marker slots; with fixing flanges; POWER CAGE CLAMP; 50,00 mm2; dark gray-yellow

起订量

1最小包装量--

添加到询价列表
285-147/999-950
285-147/999-950 wago 2-conductor through terminal block; 50 mm2; suitable for Ex e II applications; lateral marker slots; with fixing flanges; POWER CAGE CLAMP; 50,00 mm2; dark gray-yellow

请发送询价，我们将立即回复。

库存:

请发送询价，我们将立即回复。

*
验证码
在线咨询

285-147/999-950详情

技术参数

wago 285-147/999-950重要参数规格及、参数值，及相似型号如下：

  • 参数名
    参数值
    全选
  • 参数名
    参数值
    全选

  • Mounting type

    Mounting flanges

  • 质量

    164.6g

  • Clamping units

    2

  • Total number of potentials

    1

  • Number of jumper slots

    2

  • Height from the surface

    94 mm / 3.7 inches

  • Marking level

    Side marking

  • Note (material data)

    Information on material specifications can be found here

  • Material group

    I

  • Insulation material (main housing)

    Polyamide (PA66)

  • Flammability class per UL94

    V0

  • Fire load

    2.07MJ

  • Processing temperature

    -35 … +85 °C

  • Continuous operating temperature

    -60 … +105 °C

  • ETIM 9.0

    EC000897

  • ETIM 8.0

    EC000897

  • ECCN

    NO US CLASSIFICATION

  • PU (SPU)

    5 pcs

  • Packaging type

    Box

  • Country of origin

    PL

  • GTIN

    4066966490541

  • Customs tariff number

    85369010000

  • RoHS Compliance Status

    Compliant,No Exemption

  • Ratings per

    ATEX: PTB 98 ATEX 3134 U (Ex eb IIC Gb)

  • Rated voltage (III / 3)

    1000V

  • Rated impulse voltage (III / 3)

    8kV

  • Legend (ratings)

    (III / 3) ? Overvoltage category III / Pollution degree 3

  • Approvals per

    CSA 22.2 No 158

  • Rated voltage UL (Use Group B)

    600V

  • Rated current UL (Use Group B)

    150A

  • Rated voltage UL (Use Group C)

    600V

  • Rated current UL (Use Group C)

    150A

  • Rated voltage CSA (Use Group B)

    600V

  • Rated current CSA (Use Group B)

    150A

  • Rated voltage CSA (Use Group C)

    600V

  • Rated current CSA (Use Group D)

    150A

  • Reference hazardous areas

    See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”

  • Rated voltage EN (Ex e II)

    880V

  • Rated current (Ex e II)

    134A

  • Rated current (Ex e II) with jumper

    109A

  • Power loss, per pole (potential)

    4.725W

  • Rated current I<sub>N</sub> for specified power loss

    150A

  • Resistance value for specified, current-dependent power loss

    0Ω

  • Connection technology

    POWER CAGE CLAMP

  • Actuation type

    T-wrench; 8 mm

  • Connectable conductor materials

    Copper

  • Nominal cross-section

    50 mm2

  • Solid conductor

    10 … 50 mm2 / 8 … 1/0 AWG

  • Stranded conductor

    10 … 70 mm2 / 8 … 2/0 AWG

  • Fine-stranded conductor

    10 … 70 mm2 / 8 … 2/0 AWG

  • Fine-stranded conductor; with insulated ferrule

    10 … 50 mm2 / 8 … 1/0 AWG

  • Fine-stranded conductor; with uninsulated ferrule

    10 … 50 mm2 / 8 … 1/0 AWG

  • Strip length

    30 mm / 1.18 inches

  • Wiring direction

    Side-entry wiring

  • 颜色

    dark gray/yellow

  • 深度

    130 mm / 5.118 inches

  • Number of levels

    1

  • Rated current

    150A

  • 宽度

    20 mm / 0.787 inches

0个相似型号
