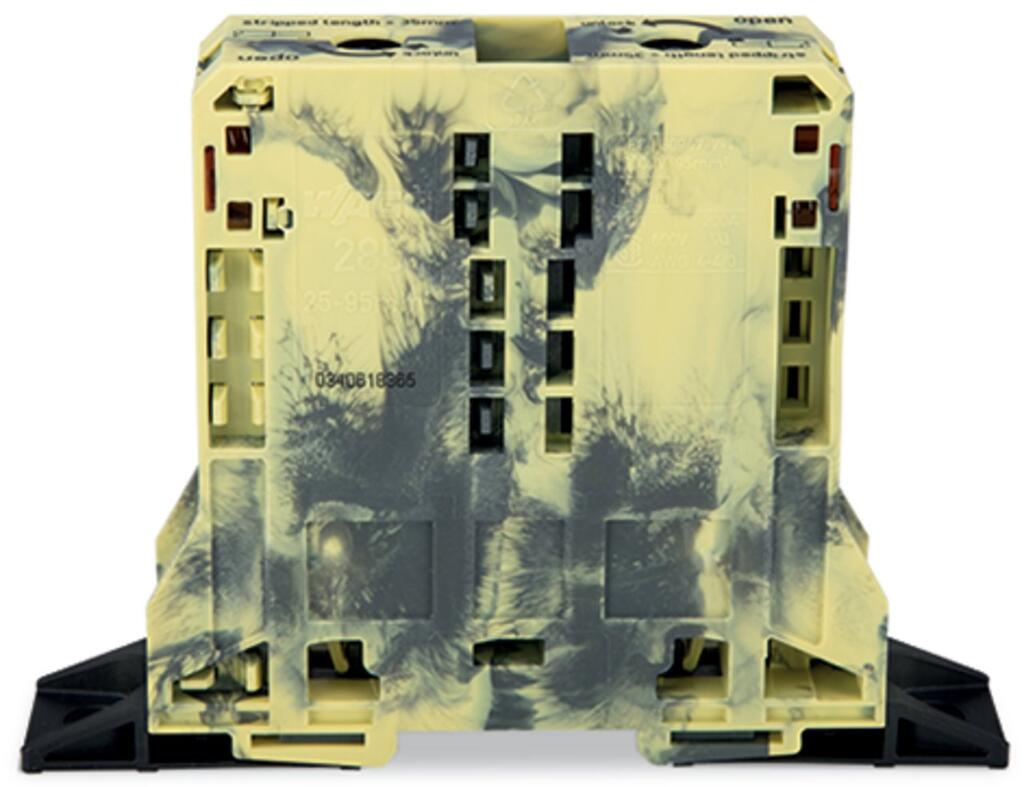

wago 285-187/999-950

Mounting type

Panel mounting

质量

268.2g

Clamping units

2

Total number of potentials

1

Number of jumper slots

2

Depth from upper-edge of DIN-rail

101 mm / 3.976 inches

Marking level

Side marking

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Fire load

0.956MJ

Processing temperature

-35 … +85 °C

Continuous operating temperature

-60 … +105 °C

ECCN

NO US CLASSIFICATION

PU (SPU)

5 pcs

Packaging type

Box

Country of origin

PL

GTIN

4066966620047

Customs tariff number

85369010000

RoHS Compliance Status

Compliant,No Exemption

Ratings per

IEC/EN 60947-7-2

Reference hazardous areas

See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”

Connection technology

POWER CAGE CLAMP

Actuation type

T-wrench; 8 mm

Connectable conductor materials

Copper

Nominal cross-section

95 mm2

Solid conductor

35 … 70 mm2 / 2 … 2/0 AWG

Stranded conductor

25 … 95 mm2 / 4 … 4/0 AWG

Fine-stranded conductor

35 … 70 mm2 / 2 … 2/0 AWG

Fine-stranded conductor; with insulated ferrule

25 … 95 mm2 / 4 … 4/0 AWG

Fine-stranded conductor; with uninsulated ferrule

25 … 95 mm2 / 4 … 4/0 AWG

Strip length

35 mm / 1.38 inches

Wiring direction

Side-entry wiring

颜色

dark gray/yellow

Number of levels

1

宽度

25 mm / 0.984 inches

高度

107 mm / 4.213 inches
