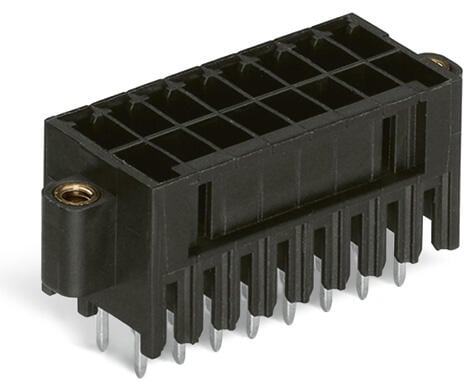

wago 713-1402/107-000

Contact plating

Tin

质量

2g

Drilled hole diameter with tolerance

1.2(+0.1)mm

Anti-rotation protection

有

Contact type (pluggable connector)

Male connector/plug

Connector (connection type)

for PCB

Contact Materials

Electrolytic copper (ECu)

ECCN

NO US CLASSIFICATION

Country of origin

PL

Customs tariff number

85366930000

CAS-No.

7439-92-1

Approvals per

CSA

Safety information

TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.

Variants

Other pole numbers

Total number of potentials

4

Number of connection types

1

Pin spacing

3.5?mm?/ 0.138?inches

Height from the surface

13.5?mm?/ 0.531?inches

Solder pin length

3.8mm

Solder pin dimensions

0.8 x 0.8?mm

Variable coding

有

Mismating protection

有

Plugging without loss of pin spacing

无

Mating direction to the PCB

90°

Locking of plug-in connection

Threaded flange

PCB contact

THT

Solder pin arrangement

over the entire male connector (in-line)

Number of solder pins per potential

1

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyphthalamide (PPA GF)

Flammability class per UL94

V0

Fire load

0.038MJ

Limit temperature range

-60 … +100?°C

Processing temperature

-35 … +60?°C

ETIM 9.0

EC002637

ETIM 8.0

EC002637

PU (SPU)

80?pcs

Packaging type

Box

GTIN

4066966230185

REACH Candidate List Substance

Lead

RoHS Compliance Status

Compliant,With Exemption

RoHS Exemption

6(c)

SCIP notification number (Austria)

525c10ec-aa4d-4886-8f86-b2ae9089f299

SCIP notification number (Belgium)

6e3765fa-09b5-4837-9c9a-6c3646e7e292

SCIP notification number (Bulgaria)

8fb153a0-e809-4086-a67f-600b761d7e4e

SCIP notification number (Czech Republic)

9b17b98a-0849-40e2-9082-cde4fc5f87b8

SCIP notification number (Denmark)

7190eb92-9263-40e0-b7bf-20b1b7e0031c

SCIP notification number (Finland)

f50bd494-18b7-4437-a68a-e4c2d9cdef24

SCIP notification number (France)

9b62b2af-5ea7-445c-a40f-c16f5fb8b4c8

SCIP notification number (Germany)

fc3be8f5-ccbe-41d4-aeb9-0300f2455ea2

SCIP notification number (Hungary)

6162c822-fae7-46f4-b123-1641858f7d4a

SCIP notification number (Italy)

27555cd3-c95e-4665-aa13-b7170818d44b

SCIP notification number (Netherlands)

968ec515-4aa7-4ae0-a066-ea8363fd21f1

SCIP notification number (Poland)

0211063b-2bcd-4b8d-b71e-6a3437e2f54b

SCIP notification number (Romania)

75406408-0f11-48c0-861c-278b83f44a9e

SCIP notification number (Sweden)

25e006ff-030a-49ef-a6fa-6e4b02686217

Ratings per

IEC/EN 60664-1

Rated voltage (III / 3)

80V

Rated impulse voltage (III / 3)

2.5kV

Rated voltage (III/2)

160V

Rated surge voltage (III/2)

2.5kV

Nominal voltage (II/2)

250V

Rated surge voltage (II/2)

2.5kV

Legend (ratings)

(III / 2) ? Overvoltage category III / Pollution degree 2

Rated voltage UL (Use Group B)

150V

Rated current UL (Use Group B)

10A

Rated voltage UL (Use Group C)

50V

Rated current UL (Use Group C)

10A

Rated voltage CSA (Use Group B)

150V

Rated current CSA (Use Group B)

12A

颜色

black

深度

13.3?mm?/ 0.524?inches

Number of levels

2

Number of poles

4

Rated current

10A

宽度

17.1?mm?/ 0.673?inches

高度

17.3?mm?/ 0.681?inches
