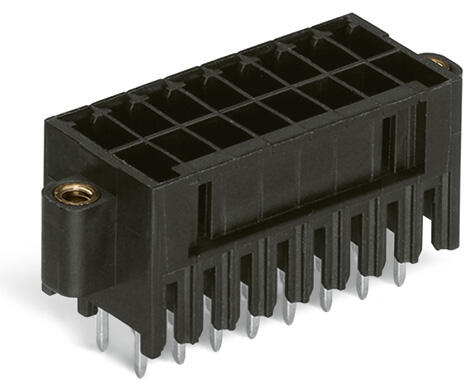

wago 713-1402/117-000

Contact plating

Tin

质量

1.9g

Solder pin length

3.8mm

Solder pin dimensions

0.8 x 0.8?mm

Plated through-hole diameter (THR)

1.3(+0.1)mm

Variable coding

有

Anti-rotation protection

有

Contact type (pluggable connector)

Male connector/plug

Connector (connection type)

for PCB

Mismating protection

有

Plugging without loss of pin spacing

无

Mating direction to the PCB

90°

Locking of plug-in connection

Threaded flange

PCB contact

THR

Solder pin arrangement

over the entire male connector (in-line)

Number of solder pins per potential

1

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyphthalamide (PPA GF)

Flammability class per UL94

V0

Contact Materials

Electrolytic copper (ECu)

Fire load

0.038MJ

MSL per J-STD 020D

1

Limit temperature range

-60 … +100?°C

Processing temperature

-35 … +60?°C

ETIM 9.0

EC002637

ETIM 8.0

EC002637

Rated voltage CSA (Use Group B)

150V

Rated current CSA (Use Group B)

12A

Safety information

TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.

Variants

Other pole numbers

Total number of potentials

4

Number of connection types

1

Pin spacing

3.5?mm?/ 0.138?inches

Height from the surface

13.5?mm?/ 0.531?inches

ECCN

NO US CLASSIFICATION

PU (SPU)

80?pcs

Packaging type

Box

Country of origin

PL

GTIN

4066966230437

Customs tariff number

85366930000

CAS-No.

7439-92-1

REACH Candidate List Substance

Lead

RoHS Compliance Status

Compliant,With Exemption

RoHS Exemption

6(c)

SCIP notification number (Austria)

2124c8de-dd90-434e-a0e6-68d7b180df8c

SCIP notification number (Belgium)

593c5c71-d1f0-41a4-bee5-e8617556dbd0

SCIP notification number (Bulgaria)

b0dc85ce-37c7-447a-b6f6-8cb02c73d8b4

SCIP notification number (Czech Republic)

19dff2aa-c6af-4800-b173-40fc6a1de312

SCIP notification number (Denmark)

aa87950c-c5d4-42d8-951a-fbffbf74dbce

SCIP notification number (Finland)

7e1294dc-170d-4f15-9638-90e97e423def

SCIP notification number (France)

52c7306b-6d15-4d8b-a19e-033bd3a40610

SCIP notification number (Germany)

d1f20275-f8de-45f5-aa9a-71031b442f02

SCIP notification number (Hungary)

83bb96c7-d079-44f7-8250-ee4d71c96b77

SCIP notification number (Italy)

b7fc25c6-fb03-4dbb-a6ca-09eb8b5d1655

SCIP notification number (Netherlands)

d606b1b3-673a-4177-88d2-0829ff79cc51

SCIP notification number (Poland)

2697f649-1d47-430a-ad85-c84ec925f383

SCIP notification number (Romania)

5838f562-0a73-40b3-af2c-3bdd7a1938e8

SCIP notification number (Sweden)

dc0e854f-b1ac-4b4c-93e4-fda602291039

Ratings per

IEC/EN 60664-1

Rated voltage (III / 3)

80V

Rated impulse voltage (III / 3)

2.5kV

Rated voltage (III/2)

160V

Rated surge voltage (III/2)

2.5kV

Nominal voltage (II/2)

250V

Rated surge voltage (II/2)

2.5kV

Legend (ratings)

(III / 2) ? Overvoltage category III / Pollution degree 2

Approvals per

CSA

Rated voltage UL (Use Group B)

150V

Rated current UL (Use Group B)

10A

Rated voltage UL (Use Group C)

50V

Rated current UL (Use Group C)

10A

颜色

black

深度

13.3?mm?/ 0.524?inches

Number of levels

2

Number of poles

4

Rated current

10A

宽度

17.1?mm?/ 0.673?inches

高度

15.9?mm?/ 0.626?inches
