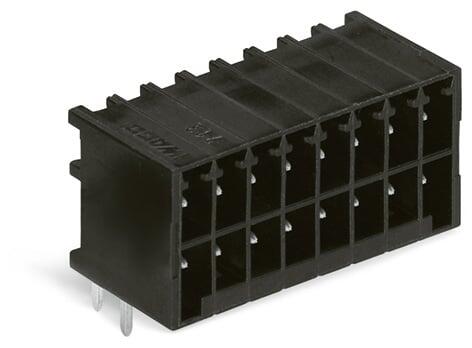

wago 713-1422/105-000

Contact plating

Tin

质量

1.5g

Height from the surface

13.3?mm?/ 0.524?inches

Solder pin length

2.4mm

Solder pin dimensions

0.8 x 0.8?mm

Plated through-hole diameter (THR)

1.3(+0.1)mm

Variable coding

有

Anti-rotation protection

有

Contact type (pluggable connector)

Male connector/plug

Connector (connection type)

for PCB

Mismating protection

有

Plugging without loss of pin spacing

无

Mating direction to the PCB

0°

Locking of plug-in connection

none

PCB contact

THR

Solder pin arrangement

over the entire male connector (in-line)

Number of solder pins per potential

1

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyphthalamide (PPA GF)

Flammability class per UL94

V0

Contact Materials

Electrolytic copper (ECu)

Fire load

0.032MJ

MSL per J-STD 020D

1

Limit temperature range

-60 … +100?°C

Processing temperature

-35 … +60?°C

ETIM 9.0

EC002637

ETIM 8.0

EC002637

ECCN

NO US CLASSIFICATION

Pin spacing

3.5?mm?/ 0.138?inches

Number of connection types

1

Total number of potentials

4

Variants

Other pole numbers

Safety information

TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.

PU (SPU)

160?pcs

Packaging type

Box

Country of origin

PL

GTIN

4066966229998

Customs tariff number

85366930000

RoHS Compliance Status

Compliant,No Exemption

Ratings per

IEC/EN 60664-1

Rated voltage (III / 3)

80V

Rated impulse voltage (III / 3)

2.5kV

Rated voltage (III/2)

160V

Rated surge voltage (III/2)

2.5kV

Nominal voltage (II/2)

250V

Rated surge voltage (II/2)

2.5kV

Legend (ratings)

(III / 2) ? Overvoltage category III / Pollution degree 2

Approvals per

CSA

Rated voltage UL (Use Group B)

150V

Rated current UL (Use Group B)

10A

Rated voltage UL (Use Group C)

50V

Rated current UL (Use Group C)

10A

Rated voltage CSA (Use Group B)

150V

Rated current CSA (Use Group B)

12A

颜色

black

深度

13.5?mm?/ 0.531?inches

Number of levels

2

Number of poles

4

Rated current

10A

高度

15.7?mm?/ 0.618?inches

宽度

8.7?mm?/ 0.343?inches
