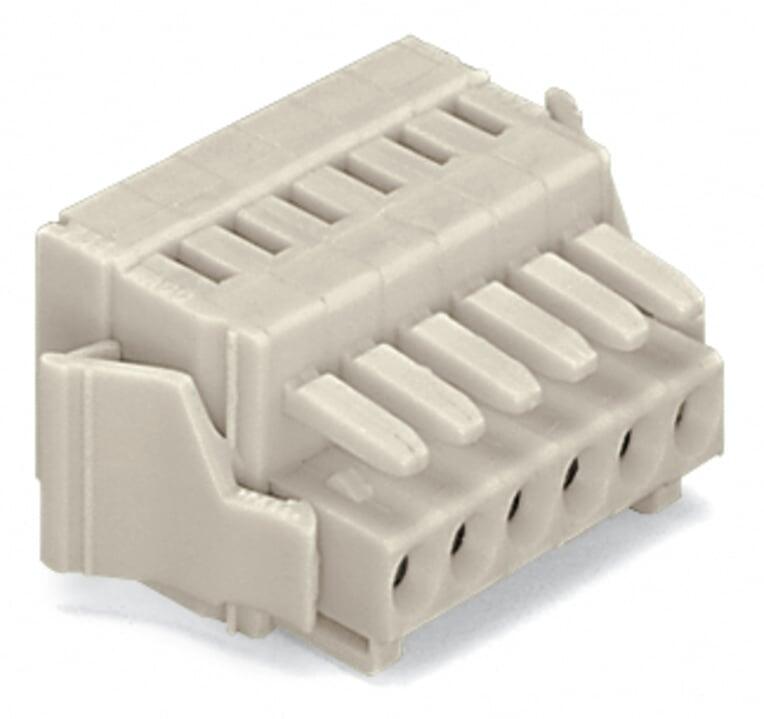

wago 734-105/037-004

Contact plating

Tin

质量

4.5g

Safety information

TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.

Variants

Other pole numbers

Clamping units

5

Total number of potentials

5

Number of connection types

1

Pin spacing

3.5 mm / 0.138 inches

Contact type (pluggable connector)

Female connector/socket

Connector (connection type)

for conductor

Locking of plug-in connection

Locking lever

Note (material data)

Information on material specifications can be found here

Clamping spring material

Chrome-nickel spring steel (CrNi)

Contact Materials

Copper alloy

Fire load

0.116MJ

Limit temperature range

-60 … +100 °C

ECCN

NO US CLASSIFICATION

PU (SPU)

50 pcs

Packaging type

Box

Country of origin

DE

GTIN

4066966533828

Customs tariff number

85366990990

RoHS Compliance Status

Compliant,No Exemption

Ratings per

IEC/EN 60664-1

Rated voltage (III / 3)

160V

Rated impulse voltage (III / 3)

2.5kV

Rated voltage (III/2)

160V

Rated surge voltage (III/2)

2.5kV

Nominal voltage (II/2)

320V

Rated surge voltage (II/2)

2.5kV

Legend (ratings)

(III / 2) ? Overvoltage category III / Pollution degree 2

Approvals per

CSA

Conductor entry direction to mating direction

0°

Strip length

6 … 7 mm / 0.24 … 0.28 inches

Note (conductor cross-section)

Terminating 1.5 mm2 conductors is possible; however insulation diameter does not allow clamping units to be terminated in a row.

Fine-stranded conductor; with uninsulated ferrule

0.25 … 1.5 mm2

Fine-stranded conductor; with insulated ferrule

0.25 … 1.5 mm2

Fine-stranded conductor

0.08 … 1.5 mm2 / 28 … 14 AWG

Solid conductor

0.08 … 1.5 mm2 / 28 … 14 AWG

Actuation direction 2

Operation perpendicular to conductor entry

Actuation direction 1

Operation parallel to conductor entry

Actuation type

Operating tool

Connection technology

CAGE CLAMP?

Rated current CSA (Use Group D)

10A

Rated voltage CSA (Use Group D)

300V

Rated current CSA (Use Group B)

10A

Rated voltage CSA (Use Group B)

300V

Rated current UL (Use Group D)

10A

Rated voltage UL (Use Group D)

300V

Rated current UL (Use Group B)

10A

Rated voltage UL (Use Group B)

300V

深度

18.6 mm / 0.732 inches

Number of levels

1

Number of poles

5

Rated current

10A

宽度

29.3 mm / 1.154 inches

高度

13.4 mm / 0.528 inches
