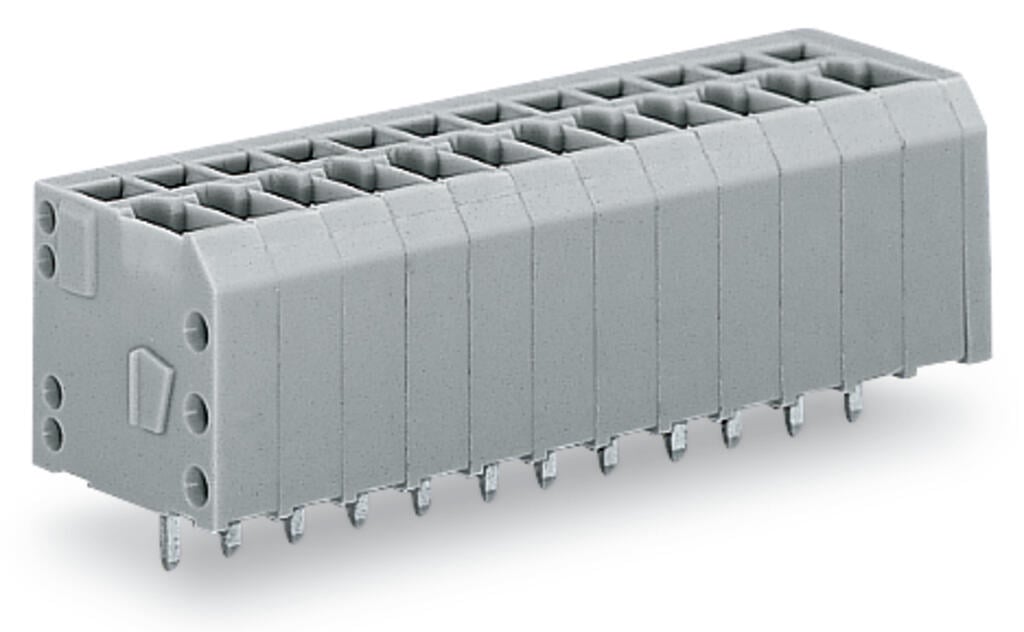

wago 739-317

Contact plating

Tin

质量

10.9g

Variants

Other pole numbers

Clamping units

17

Total number of potentials

17

Number of connection types

1

Pin spacing

3.5 mm / 0.138 inches

Height from the surface

12.3 mm / 0.484 inches

Solder pin length

3.4mm

Solder pin dimensions

0.6 x 0.8 mm

Drilled hole diameter with tolerance

1.1(+0.1)mm

PCB contact

THT

Solder pin arrangement

over the entire terminal strip (in-line)

Number of solder pins per potential

1

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Clamping spring material

Chrome-nickel spring steel (CrNi)

Contact Materials

Electrolytic copper (ECu)

Fire load

0.193MJ

Limit temperature range

-60 … +105 °C

Product Group

4 (Printed Circuit Connectors)

ETIM 9.0

EC002643

ETIM 8.0

EC002643

ECCN

NO US CLASSIFICATION

PU (SPU)

60 (15) pcs

Packaging type

Box

Country of origin

PL

GTIN

4044918301558

Customs tariff number

85369010000

RoHS Compliance Status

Compliant,No Exemption

Ratings per

IEC/EN 60664-1

Rated voltage (III / 3)

160V

Rated impulse voltage (III / 3)

2.5kV

Rated voltage (III/2)

160V

Rated surge voltage (III/2)

2.5kV

Nominal voltage (II/2)

320V

Rated surge voltage (II/2)

2.5kV

Legend (ratings)

(III / 2) ? Overvoltage category III / Pollution degree 2

Approvals per

UL 1059

Rated voltage UL (Use Group B)

300V

Rated current UL (Use Group B)

15A

Rated voltage UL (Use Group D)

300V

Rated current UL (Use Group D)

10A

Connection technology

CAGE CLAMP?

Actuation type

Operating tool

Solid conductor

0.08 … 1.5 mm2 / 28 … 14 AWG

Fine-stranded conductor

0.08 … 1.5 mm2 / 28 … 14 AWG

Fine-stranded conductor; with insulated ferrule

0.25 … 1 mm2

Fine-stranded conductor; with uninsulated ferrule

0.25 … 1.5 mm2

Note (conductor cross-section)

14 AWG: THHN, THWN

Strip length

5 … 6 mm / 0.2 … 0.24 inches

Conductor connection direction to PCB

90°

颜色

gray

深度

13.4 mm / 0.528 inches

Number of levels

1

Number of poles

17

Rated current

17.5A

宽度

43.5 mm / 1.713 inches

高度

15.7 mm / 0.618 inches
