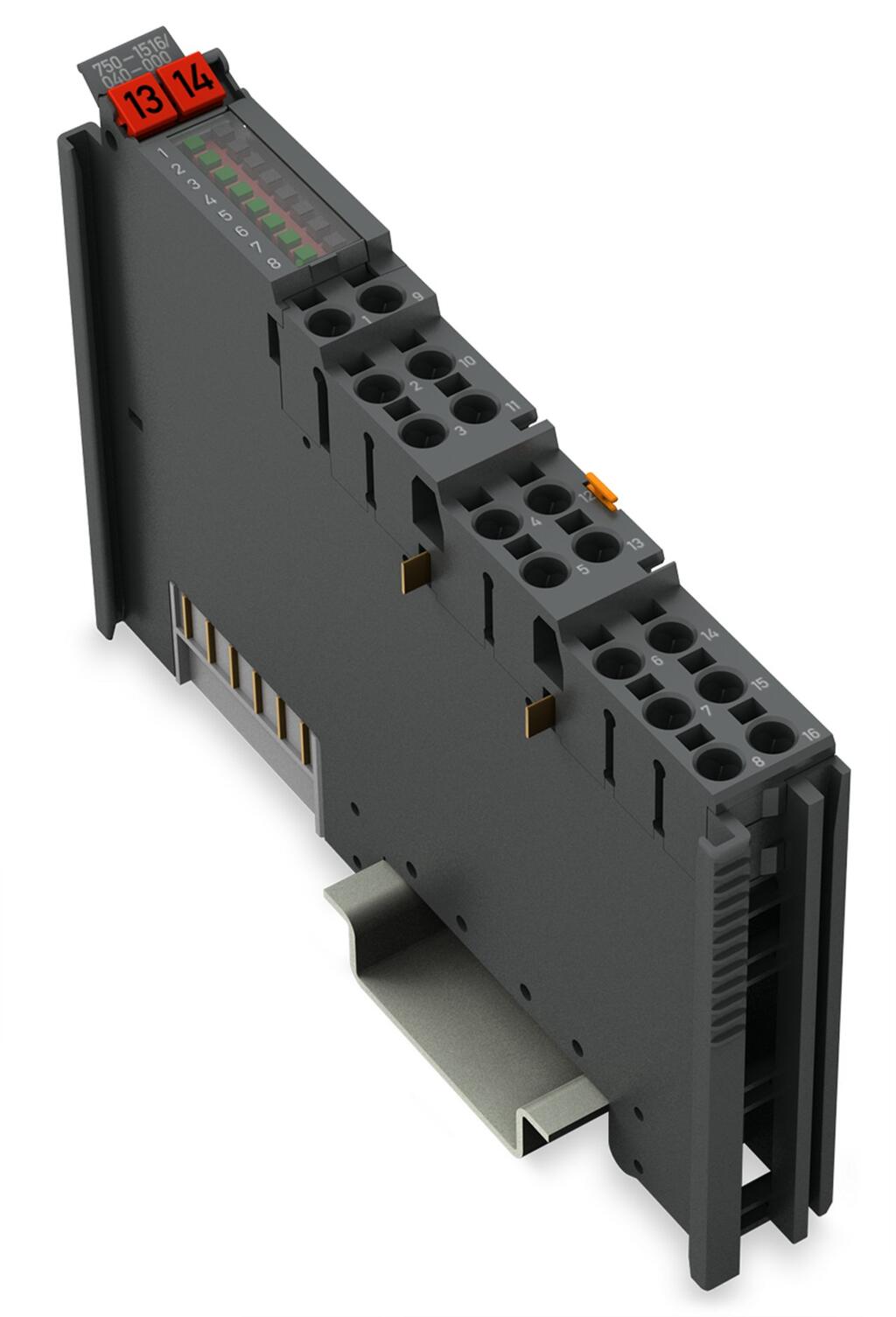

wago 750-1516/040-000

Mounting type

DIN-35 rail

Housing material

Polycarbonate; polyamide 6.6

质量

59.8g

Number of digital outputs

8

Signal type

Voltage

Signal type (voltage)

24 VDC

Actuator connection

8 x (2-wire)

Output characteristic

low-side switching

Switching frequency (max.)

1 kHz

Output data width (internal) max.

8bits

Supply voltage (system)

5 VDC; via data contacts

Current consumption (5 V system supply)

20mA

Supply voltage (field)

24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact); Derating must be observed!

Current consumption, field supply (module with no external load)

8mA

Dielectric strength

510 VAC / 775 VDC; per EN 60870-2-1

Indicators

LED (1-8) green: Status DO 1 … DO 8

Number of incoming power jumper contacts

2

Number of outgoing power jumper contacts

2

Current carrying capacity (power jumper contacts)

10A

Rated surge voltage

1 kV

Derating

Derating (supply voltage):Ambient temperatures under laboratory conditions: (?25 … +30°%);for ?40 … +55°°C: 24°V (?25 … +20°%);for +55 … +70°°C: 24°V (?25 … +10°%);Lower limit in all temperature ranges: ?27.5°% (including 15°% residual ripple)

Connection technology: inputs / outputs

16 x Push-in CAGE CLAMP?(outputs)

Connection type 1

Output

Solid conductor

0.25 … 1.5 mm2 / 24 … 16 AWG

Fine-stranded conductor

0.25 … 1.5 mm2 / 24 … 16 AWG

Strip length

8 … 9 mm / 0.31 … 0.35 inches

Depth from upper-edge of DIN-rail

61.8 mm / 2.433 inches

Fire load

0.835MJ

Conformity marking

CE

Ambient temperature (operation)

-40 … +70 °C

Ambient temperature (storage)

-40 … +85 °C

Protection type

IP20

Pollution degree

2 per IEC 61131-2

Operating altitude

without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)

Mounting position

Horizontal left, horizontal up, vertical top and vertical bottom

Relative humidity (without condensation)

95%

Relative humidity (with condensation)

Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)

Vibration resistance

per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373

EMC immunity to interference

per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26;EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994

EMC emission of interference

per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5

Exposure to pollutants

per IEC 60068-2-42 and IEC 60068-2-43

Permissible pollutant concentration H₂S at a relative humidity < 75%

10ppm

Permissible pollutant concentration SO ₂ at a relative humidity < 75%

25ppm

ETIM 9.0

EC001599

ETIM 8.0

EC001599

ECCN

NO US CLASSIFICATION

PU (SPU)

1 pcs

Packaging type

Box

Country of origin

DE

Customs tariff number

85371098990

CAS-No.

1303-86-2

REACH Candidate List Substance

Diboron trioxide

RoHS Compliance Status

Compliant,With Exemption

RoHS Exemption

6(c)

SCIP notification number (Austria)

a2e38d05-f161-4a8a-bea8-38a23c75f607

SCIP notification number (Belgium)

96dcdb60-04c3-48a7-9ba3-d476cda0d2dd

SCIP notification number (Bulgaria)

627028bd-0610-45e3-90ff-de2bc294ef85

SCIP notification number (Czech Republic)

d59f93da-e58f-4f07-83bb-2b4454a76156

SCIP notification number (Denmark)

44ef81cc-ed4c-483b-a962-67dead30efad

SCIP notification number (Finland)

25331460-9499-4453-ae08-4ae88882e96c

SCIP notification number (France)

a37ab232-b2cf-43f7-b014-32f14ba921bf

SCIP notification number (Germany)

551ac087-c181-4b2f-87f0-5e0a3a512d9c

SCIP notification number (Hungary)

903a1d98-ba90-49be-8b56-412fe4944b6c

SCIP notification number (Italy)

5ba2c376-e8ba-43f0-9908-c3ff504eef90

SCIP notification number (Netherlands)

5102b7f3-dcf8-4e99-a061-25f1574bcaff

SCIP notification number (Poland)

225d7dd0-4b38-4da8-b304-c1d15cc9a89f

SCIP notification number (Romania)

03bc65e3-57f9-4452-988e-1e67288de85a

SCIP notification number (Sweden)

002b21b6-23bc-4bb2-a64a-9c4bcf731a93

深度

69 mm / 2.717 inches

通道数量

8

Output current

short-circuit-protected

Output current per channel

0.5A

Load type

Resistive, inductive, lamp load

Shock resistance

per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 50155, EN 61373

宽度

12 mm / 0.472 inches

高度

100 mm / 3.937 inches
