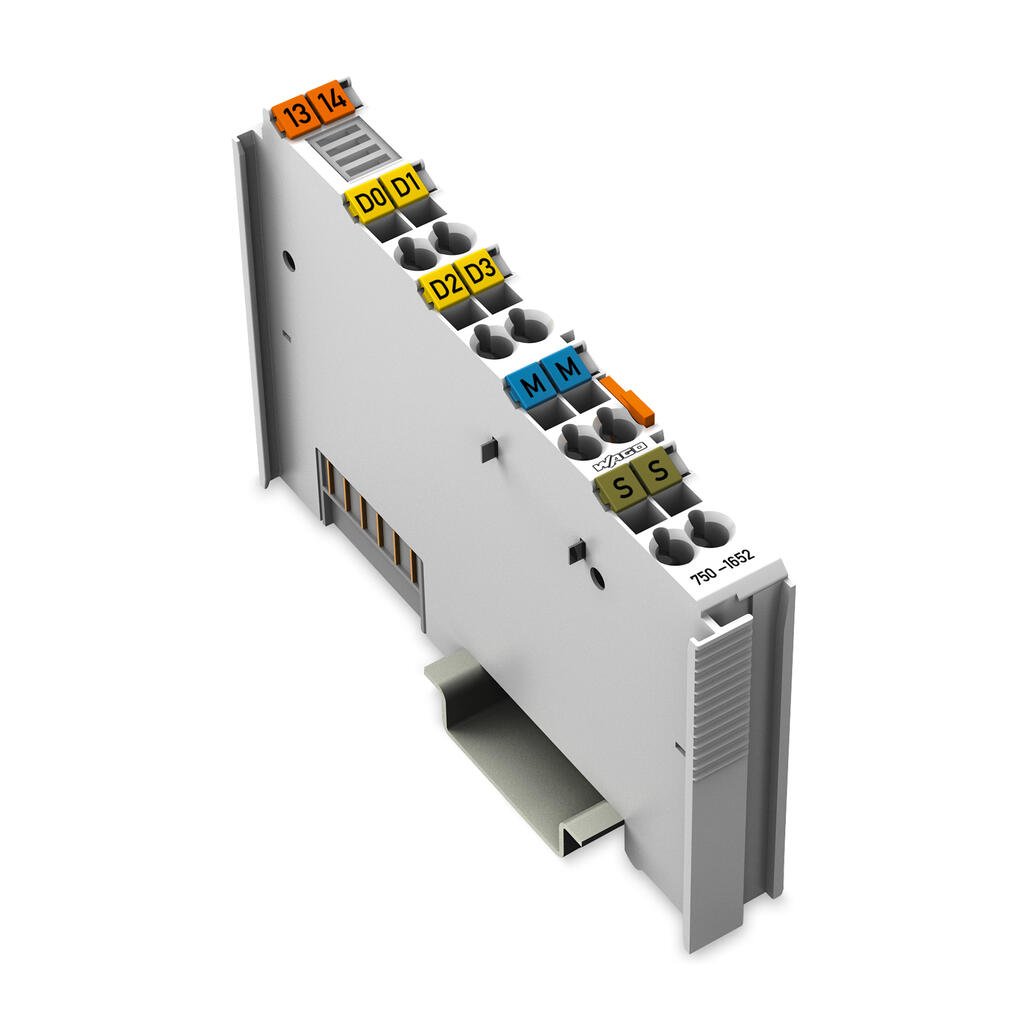

wago 750-1652

Mounting type

DIN-35 rail

Housing material

Polycarbonate; polyamide 6.6

质量

53.3g

Signal type

RS-232

Transmission rate

150/250 kBd

Bit transfer

RS-485/-422: ISO 8482 / DIN 66259 - 4; RS-232: EIA/TIA-232-F

Transmission channels

1 TxD / 1 RxD, full-duplex, half-duplex

Line length

RS-485/-422: approx. 1000 m (max.) twisted pair, RS-232: 40 m (max.)

Level adjustment

Bias network 1 approx. 620°Ohm (connectable); Bias network 2 approx. 1210°Ohm (connectable)

Data width

Serial operating modes: 1 x 46/1 x 22/1 x 6-byte input/output (parameterizable), 2-byte control/status

Terminating resistor

Approx. 120 Ohm (switchable)

Parity

None/Odd/Even/Mark/Space

Number of data bits

7 … 8, adjustable

Number of stop bits

1/2, adjustable

Buffer

8192-byte input / 2048-byte output

Supply voltage (system)

5?VDC;?via data contacts

Current consumption (5 V system supply)

120mA

Current consumption (note)

120 mA at RS-232, Xon/Xoff 115.2 kBaud; 90 mA at RS-485 full-duplex 115.2 kBaud

Supply voltage (field)

24 VDC; via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)

Indicators

LED (A-H) green/yellow/red: function, TxD (send), RxD (receive), buffer status, 3 x operating mode, data flow control

Number of incoming power jumper contacts

2

Number of outgoing power jumper contacts

2

Current carrying capacity (power jumper contacts)

10A

Connection technology: inputs / outputs

8 x CAGE CLAMP?

Connection type 1

Inputs/outputs

Solid conductor

0.08 … 2.5?mm2?/ 28 … 14?AWG

Fine-stranded conductor

0.08 … 2.5?mm2?/ 28 … 14?AWG

Strip length

8 … 9?mm?/ 0.31 … 0.35?inches

Depth from upper-edge of DIN-rail

60.6?mm?/ 2.386?inches

Fire load

0.967MJ

Conformity marking

CE

Ambient temperature (operation)

0 … +55 °C

Ambient temperature (storage)

-40 … +85 °C

Protection type

IP20

Pollution degree

2 per IEC 61131-2

Operating altitude

0 … 2000?m / 0 … 6562 ft

Mounting position

Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom

Relative humidity (without condensation)

95%

Vibration resistance

4g per IEC 60068-2-6

EMC immunity to interference

per EN 61000-6-2, marine applications

EMC emission of interference

per EN 61000-6-3, marine applications

Exposure to pollutants

per IEC 60068-2-42 and IEC 60068-2-43

Permissible pollutant concentration H₂S at a relative humidity < 75%

10ppm

Permissible pollutant concentration SO ₂ at a relative humidity < 75%

25ppm

ETIM 9.0

EC001604

ETIM 8.0

EC001604

ECCN

NO US CLASSIFICATION

PU (SPU)

1?pcs

Packaging type

Box

Country of origin

DE

GTIN

4066966371253

Customs tariff number

85389099990

CAS-No.

1303-86-2

REACH Candidate List Substance

2-methylimidazole

RoHS Compliance Status

Compliant,With Exemption

RoHS Exemption

6(c)

SCIP notification number (Austria)

a78b29be-4883-45a2-a1de-fa0d374dfa62

SCIP notification number (Belgium)

ac2eb67e-85bb-41e4-ae51-164544d79105

SCIP notification number (Bulgaria)

0d81b52f-b65b-4b44-9db5-deff700c1ca8

SCIP notification number (Czech Republic)

4cc20f41-5e3a-4596-9503-896739d0e2b0

SCIP notification number (Denmark)

bc98fe69-7024-4844-abf5-b282da07430a

SCIP notification number (Finland)

1832355f-9395-4004-b51b-90bb37a942ef

SCIP notification number (France)

eb9b2269-a5c0-4a6c-a33b-947a60a22d7d

SCIP notification number (Germany)

dfd08081-39ba-4304-9102-8f82a16471e8

SCIP notification number (Hungary)

6efba538-bfa4-4df8-beca-09400b6a846c

SCIP notification number (Italy)

80140f7a-00bb-4b7a-a0a9-20ee8acb6788

SCIP notification number (Netherlands)

7706470d-a5d8-4842-af0c-a37372428f85

SCIP notification number (Poland)

7f9b5780-290e-4213-8579-df22283270a7

SCIP notification number (Romania)

8a7d8abc-7b7b-4c10-b7fc-aeafb81c26af

SCIP notification number (Sweden)

4027092b-72dd-44a2-a6d3-bbc7d21ddaee

深度

67.8?mm?/ 2.669?inches

隔离

500?V system/field

Shock resistance

15g per IEC 60068-2-27

宽度

12?mm?/ 0.472?inches

高度

100?mm?/ 3.937?inches
