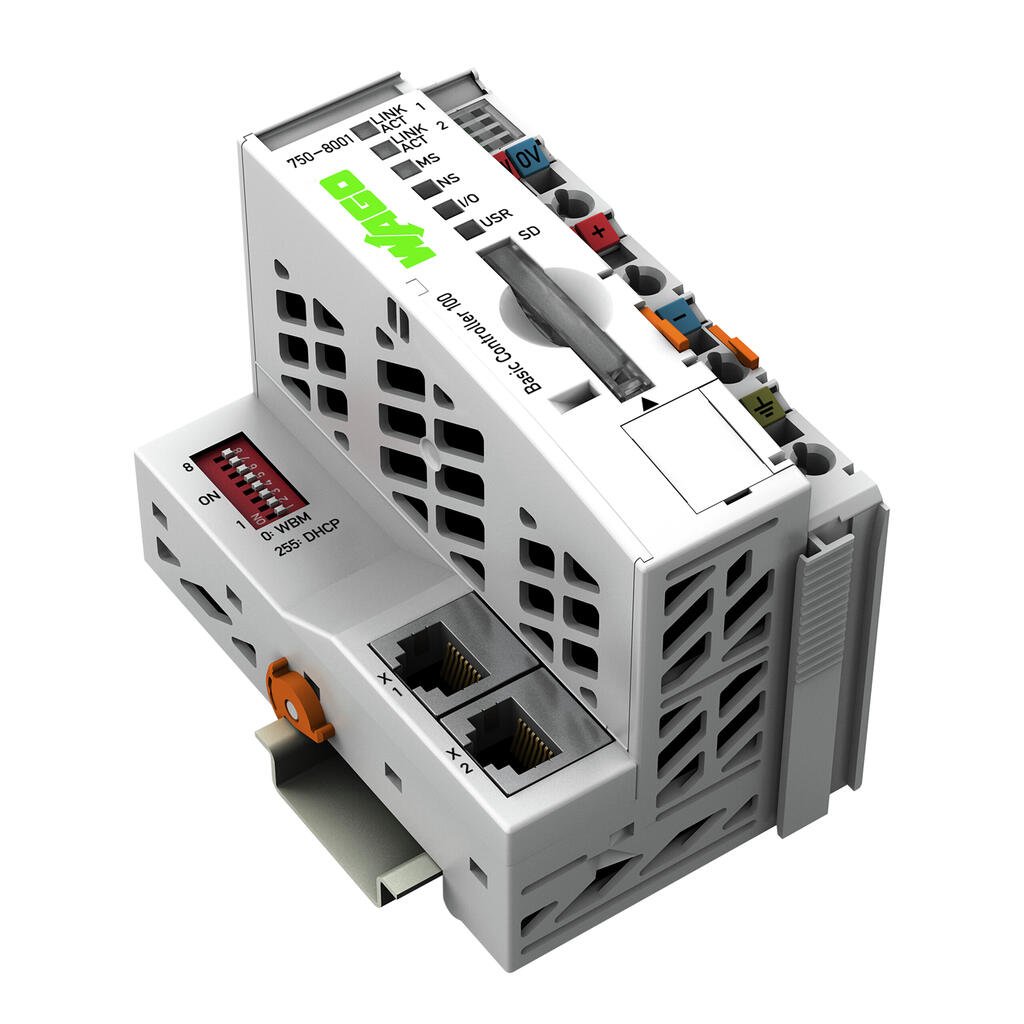

wago 750-8001

Mounting type

DIN-35 rail

Housing material

Polycarbonate; polyamide 6.6

质量

154.4g

ETHERNET protocols

HTTP(S)

Visualization

Webserver with integrated RBAC (Role-Based Access Control)

Programming languages per IEC 61131-3

Instruction List (IL)

Programming environment

CODESYS V3.5

Configuration options

WAGO-I/O-CHECK

Transmission rate

10/100?Mbit/s

Transmission medium (communication/fieldbus)

Twisted pair S-UTP; 100?Ω; Cat.?5; 100?m maximum cable length

Transmission performance

Class D per EN 50173

Program memory

16?MB

Data memory

32?MB

Non-volatile software memory

128Kbytes

ETIM 9.0

EC000236

ETIM 8.0

EC000236

ECCN

NO US CLASSIFICATION

PU (SPU)

1?pcs

Packaging type

Box

Country of origin

DE

GTIN

4066966361902

Customs tariff number

85371091990

CAS-No.

1303-86-2

REACH Candidate List Substance

2,2'',6,6''-tetrabromo-4,4''-isopropylidenediphenol

RoHS Compliance Status

Compliant,With Exemption

SCIP notification number (Sweden)

4228030b-7777-4e37-b006-6ec1f601c762

SCIP notification number (Romania)

5278ff5c-504e-479b-bcd1-047a83af8ac0

SCIP notification number (Poland)

8a26fee3-e09a-409d-8e12-81ac409dd62e

SCIP notification number (Netherlands)

dd972ea5-1f96-42ac-a170-90642984f705

SCIP notification number (Italy)

e31f30ac-645f-40af-8d9d-941892a1ef13

SCIP notification number (Hungary)

85765840-ce7f-42d3-942b-0ec273454a4b

SCIP notification number (Germany)

41cb42de-4ff4-4459-b10d-4ab37213a6b8

SCIP notification number (France)

549b616e-e528-4813-9c5c-50ebd556ff2d

SCIP notification number (Finland)

c6ebc103-bec0-4056-bb22-0fcad1280913

SCIP notification number (Denmark)

f457f258-9930-4fbd-bda6-dc91e02bbcfc

SCIP notification number (Czech Republic)

43ba3f7f-2e75-428f-9aac-6d5fda8a5ac9

SCIP notification number (Bulgaria)

be381a95-8372-4917-999a-0350f1e2c3c8

SCIP notification number (Belgium)

35246927-d874-4df3-a823-416c3e51faf2

SCIP notification number (Austria)

c860baa6-a8d5-4d64-b517-c6b06bb7ec08

RoHS Exemption

6(c)

Permissible pollutant concentration SO ₂ at a relative humidity < 75%

25ppm

Permissible pollutant concentration H₂S at a relative humidity < 75%

10ppm

Fire load

2.47MJ

Exposure to pollutants

per IEC 60068-2-42 and IEC 60068-2-43

EMC emission of interference

per EN 61000-6-3, marine applications

EMC immunity to interference

per EN 61000-6-2, marine applications

Vibration resistance

4g per IEC 60068-2-6

Mounting position

Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom

Relative humidity (without condensation)

95%

Operating altitude

without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.)

Pollution degree

2 per IEC 61131-2

Protection type

IP20

Ambient temperature (storage)

-25 … +85 °C

Ambient temperature (operation)

0 … +55 °C

Conformity marking

CE

Depth from upper-edge of DIN-rail

64.7?mm?/ 2.547?inches

Strip length

8 … 9?mm?/ 0.31 … 0.35?inches

Fine-stranded conductor

0.08 … 2.5?mm2?/ 28 … 14?AWG

Solid conductor

0.08 … 2.5?mm2?/ 28 … 14?AWG

Connection type 1

System/field supply

Connection technology: communication/fieldbus

Modbus (TCP, UDP):?2 x RJ-45

Number of outgoing power jumper contacts

3

Current carrying capacity (power jumper contacts)

10A

Supply voltage (field)

24?VDC?(-25 … +30?%);?via power jumper contacts

Total current (system supply)

1,700mA

Current consumption (5 V system supply)

440mA

Power supply efficiency (typ.) at nominal load (24 V)

90%

Input current (typ.) at nominal load (24?V)

500mA

Supply voltage (system)

24?VDC (-25 … +30?%);?via pluggable connector (CAGE CLAMP?connection)

Indicators

LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS, NS) red/green: Status of node, network; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user; LED (A, B) green: System power supply status, field supply

Input and output process image (fieldbus) max.

1020?words/1020?words

Number of modules without a bus extension (max.)

64

Number of modules per node (max.)

250

Memory card slot

Push-push mechanism; cover lid (sealable)

Type of memory card

SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO''s memory card)

深度

71.9?mm?/ 2.831?inches

隔离

500 VAC system/field

通信协议

Modbus (TCP, UDP)

Shock resistance

15g per IEC 60068-2-27

中央处理器

32 bits

高度

100?mm?/ 3.937?inches

宽度

61.5?mm?/ 2.421?inches
