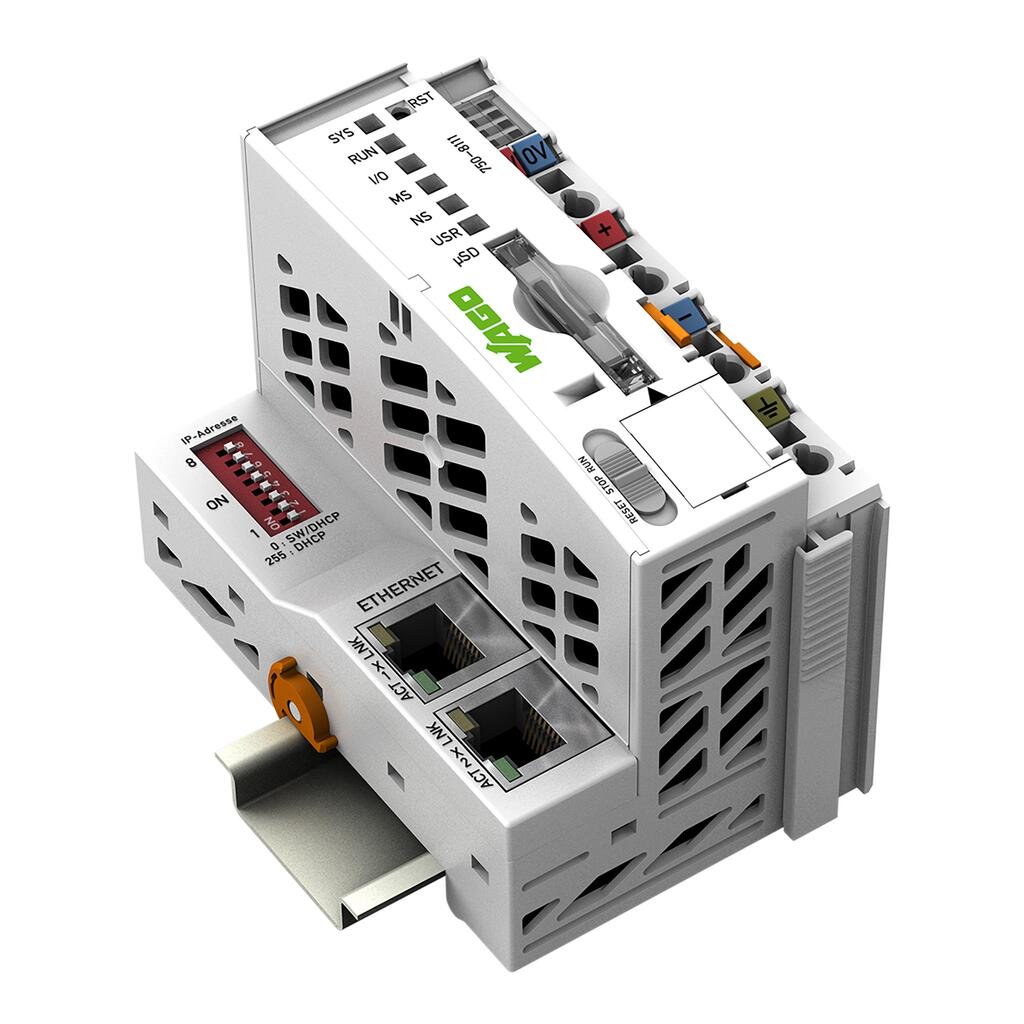

wago 750-8111

Mounting type

DIN-35 rail

Housing material

Polycarbonate; polyamide 6.6

质量

154.3g

ETHERNET protocols

DHCP

Visualization

Web-Visu

Operating Systems

Real-time Linux (with PREEMPT_RT patch)

Programming languages per IEC 61131-3

Instruction List (IL)

Programming environment

CODESYS V3.5

Configuration options

CODESYS V3

Transmission rate

ETHERNET: 10/100 Mbit/s

Transmission medium (communication/fieldbus)

ETHERNET: Twisted pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length

Main memory (RAM)

512MB

Internal memory (flash)

4096MB

Non-volatile hardware memory

128Kbytes

Program memory

32 MB (Program and data memory (dynamically distributed))

Data memory

128 MB Program and data memory (dynamically distributed)

Non-volatile software memory

128.Kbytes

Type of memory card

microSD up to 32 GB (all guaranteed properties only valid with WAGO''s memory card)

Memory card slot

Push-push mechanism; cover lid (sealable)

Number of modules per node (max.)

250

Number of modules without a bus extension (max.)

64

Input and output process image (internal) max.

1000 words/1000 words

Input and output process image (Modbus?) max.

CODESYS V3: 32000 words/32000 words

Indicators

LED (SYS, RUN, I/O, USR) red/green/orange: Status of system, program, local data bus, status programmable by user (can be used via CODESYS library); LED (A, B) green: Status of system power supply, field supply

Supply voltage (system)

24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP?connection)

Input current (typ.) at nominal load (24?V)

550mA

Total current (system supply)

1,700mA

Supply voltage (field)

24 VDC (-25 … +30 %); via power jumper contacts

Current carrying capacity (power jumper contacts)

10A

Number of outgoing power jumper contacts

3

Connection technology: communication/fieldbus

Modbus (TCP, UDP): 2 x RJ-45

Connection technology: system supply

2 x CAGE CLAMP?

Connection technology: field supply

6 x CAGE CLAMP?

Connection type 1

System/field supply

Solid conductor

0.08 … 2.5 mm2 / 28 … 14 AWG

Fine-stranded conductor

0.08 … 2.5 mm2 / 28 … 14 AWG

Strip length

8 … 9 mm / 0.31 … 0.35 inches

Connection technology: device configuration

1 x Male connector; 4-pole

Depth from upper-edge of DIN-rail

64.7 mm / 2.547 inches

Conformity marking

CE

Ambient temperature (operation)

0 … +55 °C

Ambient temperature (storage)

-25 … +85 °C

Protection type

IP20

Pollution degree

2 per IEC 61131-2

Operating altitude

0 … 2000 m / 0 … 6562 ft

Relative humidity (without condensation)

95%

Mounting position

Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom

Vibration resistance

4g per IEC 60068-2-6

EMC immunity to interference

per EN 61000-6-2, marine applications

EMC emission of interference

per EN 61000-6-3, marine applications

Exposure to pollutants

per IEC 60068-2-42 and IEC 60068-2-43

Fire load

2.466MJ

Permissible pollutant concentration H₂S at a relative humidity < 75%

10ppm

Permissible pollutant concentration SO ₂ at a relative humidity < 75%

25ppm

ETIM 9.0

EC000236

ETIM 8.0

EC000236

ECCN

NO US CLASSIFICATION

PU (SPU)

1 pcs

Packaging type

Box

Country of origin

DE

GTIN

4066966460858

Customs tariff number

85371091990

RoHS Compliance Status

Compliant,With Exemption

RoHS Exemption

6(c)

深度

71.9 mm / 2.831 inches

隔离

500 V system/field

通信协议

Modbus TCP master/slave

Shock resistance

15g per IEC 60068-2-27

中央处理器

Cortex A8; 600 MHz

宽度

61.5 mm / 2.421 inches

高度

100 mm / 3.937 inches
