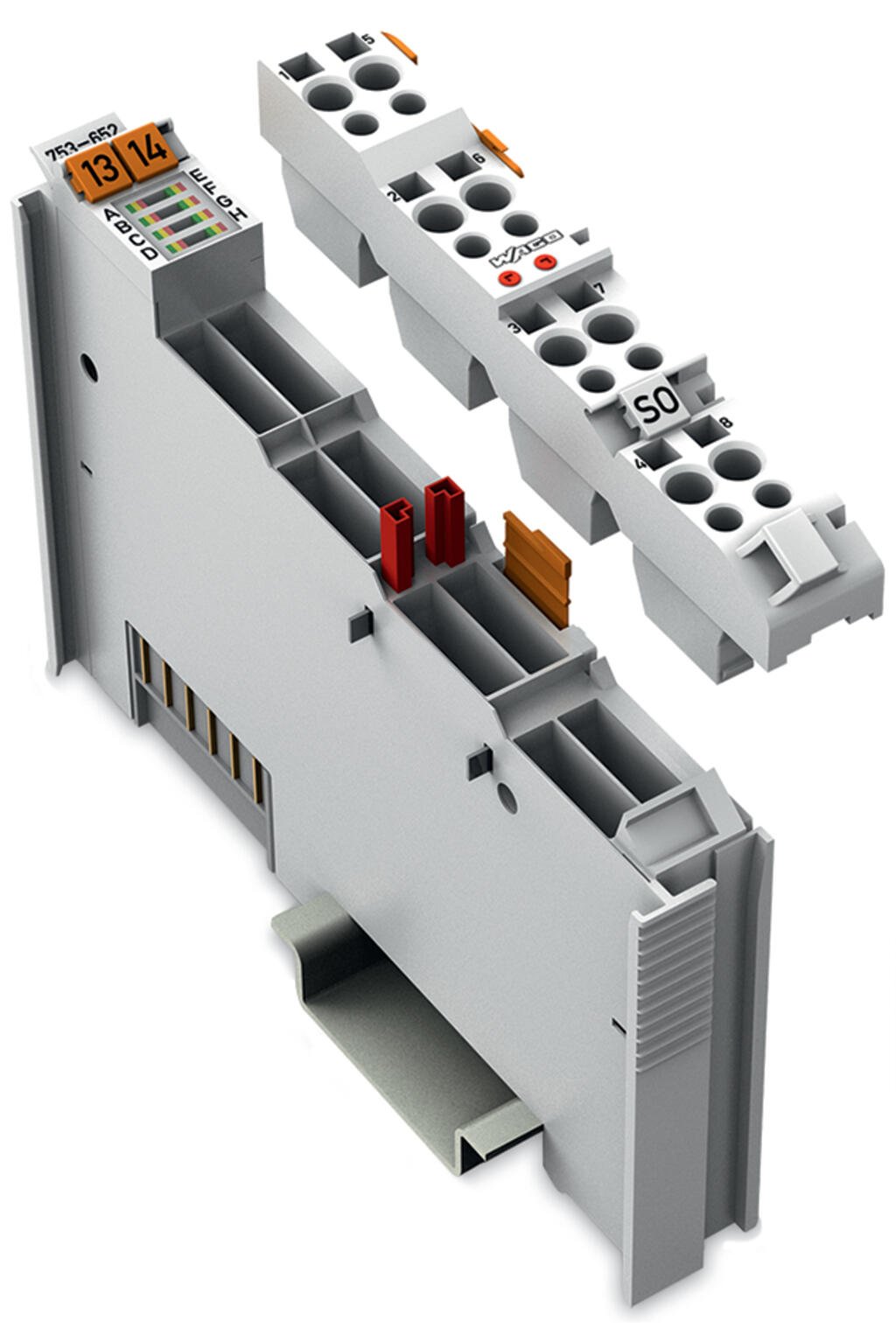

wago 753-1652

Mounting type

DIN-35 rail

Housing material

Polycarbonate; polyamide 6.6

质量

45g

Signal type

RS-232

Transmission rate

150/250 kBd

Bit transfer

RS-485/-422: ISO 8482 / DIN 66259 - 4; RS-232: EIA/TIA-232-F

Transmission channels

1 TxD / 1 RxD, full-duplex, half-duplex

Line length

RS-485/-422: approx. 1000 m (max.) twisted pair, RS-232: 40 m (max.)

Level adjustment

Bias network 1 approx. 620°Ohm (connectable); Bias network 2 approx. 1210°Ohm (connectable)

Data width

Serial operating modes: 1 x 46/1 x 22/1 x 6-byte input/output (parameterizable), 2-byte control/status

Terminating resistor

Approx. 120 Ohm (switchable)

Parity

None/Odd/Even/Mark/Space

Number of data bits

7 … 8, adjustable

Number of stop bits

1/2, adjustable

Buffer

8192-byte input / 2048-byte output

Supply voltage (system)

5?VDC;?via data contacts

Current consumption (5 V system supply)

120mA

Current consumption (note)

120 mA at RS-232, Xon/Xoff 115.2 kBaud; 90 mA at RS-485 full-duplex 115.2 kBaud

Supply voltage (field)

24 VDC; via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)

Indicators

LED (A-H) green/yellow/red: function, TxD (send), RxD (receive), buffer status, 3 x operating mode, data flow control

Number of incoming power jumper contacts

2

Number of outgoing power jumper contacts

2

Current carrying capacity (power jumper contacts)

10A

Connection technology: inputs / outputs

8 x CAGE CLAMP?

Connection type 1

Inputs/outputs

Solid conductor

0.08 … 2.5?mm2?/ 28 … 14?AWG

Fine-stranded conductor

0.08 … 2.5?mm2?/ 28 … 14?AWG

Strip length

9 … 10?mm?/ 0.35 … 0.39?inches

Depth from upper-edge of DIN-rail

61.8?mm?/ 2.386?inches

Fire load

0.836MJ

Conformity marking

CE

Ambient temperature (operation)

0 … +55 °C

Ambient temperature (storage)

-40 … +85 °C

Protection type

IP20

Pollution degree

2 per IEC 61131-2

Operating altitude

0 … 2000?m / 0 … 6562 ft

Mounting position

Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom

Relative humidity (without condensation)

95%

Vibration resistance

4g per IEC 60068-2-6

EMC immunity to interference

per EN 61000-6-1, -2; marine applications

EMC emission of interference

per EN 61000-6-3, -4; marine applications

Exposure to pollutants

per IEC 60068-2-42 and IEC 60068-2-43

Permissible pollutant concentration H₂S at a relative humidity < 75%

10ppm

Permissible pollutant concentration SO ₂ at a relative humidity < 75%

25ppm

ETIM 9.0

EC001604

ETIM 8.0

EC001604

ECCN

NO US CLASSIFICATION

PU (SPU)

1?pcs

Packaging type

Box

Country of origin

DE

GTIN

4066966371291

Customs tariff number

85389099990

CAS-No.

1303-86-2

REACH Candidate List Substance

2-methylimidazole

RoHS Compliance Status

Compliant,With Exemption

RoHS Exemption

6(c)

SCIP notification number (Austria)

882a6563-8982-4ea1-ab92-ba7757ffc872

SCIP notification number (Belgium)

9b02d0fa-fe9b-4728-a38e-0e6d50d04def

SCIP notification number (Bulgaria)

be131613-e79a-4a44-98b3-b9fe70d6ecdc

SCIP notification number (Czech Republic)

99db4c6d-bdd4-4ddf-a469-66640fcd5f46

SCIP notification number (Denmark)

629da6da-a5d8-4445-9fc2-8d379904db61

SCIP notification number (Finland)

4fe9700b-d684-4c1c-892c-375247caef79

SCIP notification number (France)

f6995935-d325-4ea2-805e-bce356b82a62

SCIP notification number (Germany)

f6d1412b-a6ff-4b63-8a62-5d9abd043253

SCIP notification number (Hungary)

3feb767b-8b53-4779-a4a8-2dbe14add2f4

SCIP notification number (Italy)

2359fee9-e2eb-4eb5-b56c-1ee2a46c9cc8

SCIP notification number (Netherlands)

eb9e95e7-e308-4519-a079-759ceb120133

SCIP notification number (Poland)

126f323d-1bb6-451a-9f9e-cd4b7b6484e2

SCIP notification number (Romania)

7a138254-ce7a-4717-89a0-ffca9b517dfb

SCIP notification number (Sweden)

de2c8b9b-bf0d-40c6-ab94-a8ce59678268

深度

69?mm?/ 2.717?inches

隔离

500?V system/field

Shock resistance

15g per IEC 60068-2-27

宽度

12?mm?/ 0.472?inches

高度

100?mm?/ 3.937?inches
