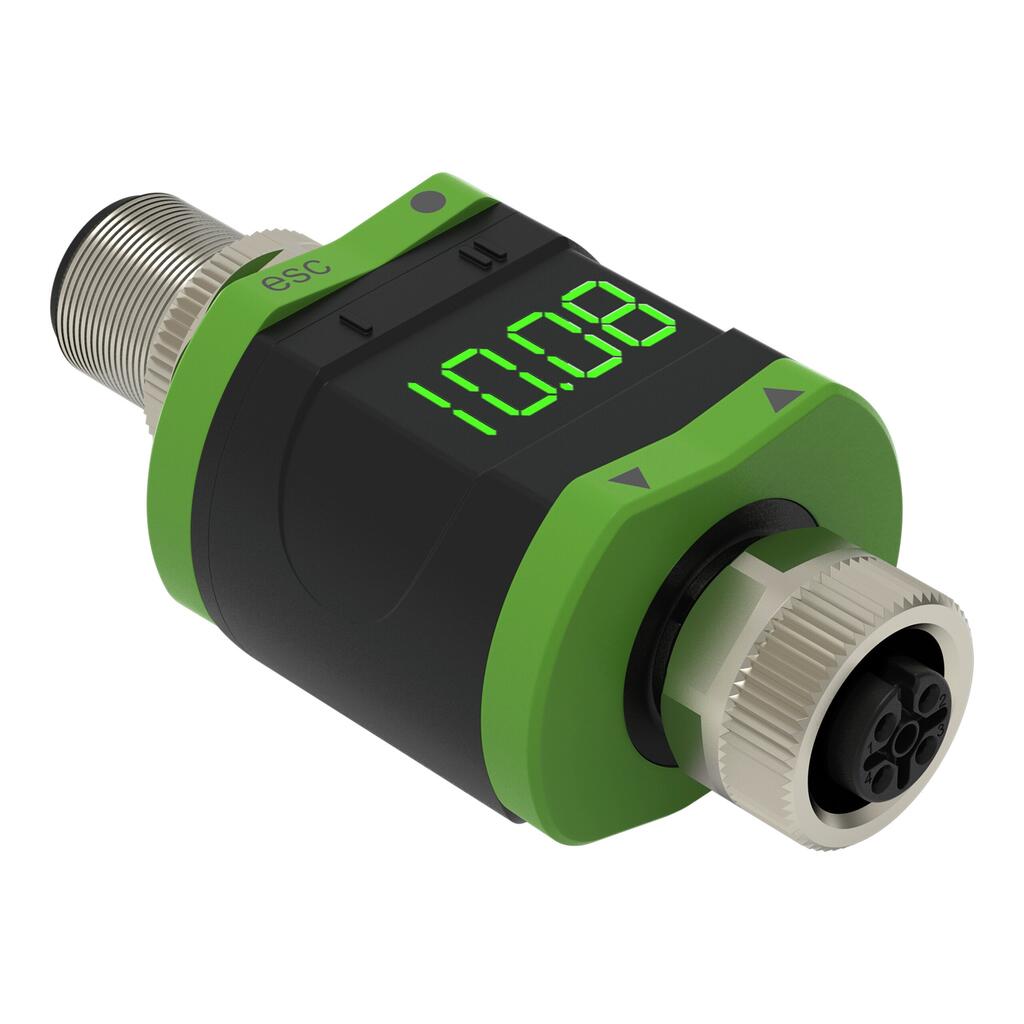

wago 765-2701/200-000

Housing material

PA

质量

108g

Connection technology: inputs / outputs

1 x M12-A socket; 5-pole (inputs); 1 x M12-A plug; 4-pole (outputs, IO-Link)

Ambient temperature (operation)

-20 … +60 °C (70 °C with display switched off)

Ambient temperature (storage)

-25 … +70 °C

Protection type

IP67

Operating altitude

0 … 2000 m / 0 … 6562 ft

Pollution degree

3

Conformity marking

CE; UKCA

MTTF

373years

ETIM 9.0

EC001596

ETIM 8.0

EC001596

ECCN

NO US CLASSIFICATION

PU (SPU)

1 pcs

Packaging type

Bag

Country of origin

TW

Customs tariff number

85176200000

RoHS Compliance Status

Compliant,No Exemption

Power consumption (typ.) (24 V)

1W

Accuracy (+25 °C)

Analog input/analog output: 0.5 % of the upper-range value

Indicators

Digital output: 1 x yellow LED; Power: 1 x green LED; Display: 7-segment red/green LED

Input signal (A)

4 … 20 mA

Sensor supply

24 VDC

Sensor current (per channel) max.

0.8A

Number of digital outputs

1

Signal type (voltage)

10 … 30 VDC

Signal type (current)

4 … 20 mA

Current carrying capacity per output

50mA

Output circuit design

Make/break contact; parameterizable

Resolution of analog outputs

10bits

Transmission modes

COM2 (38.4 kBaud)

IO-Link version

1.1

Process data

1 x 16-bit IN (analog); 1 x 16-bit IN (digital)

Parameterizable functions

Operating mode, switching point, delay, scaling, etc.

Supply voltage

24 VDC (18 … 30 V)

深度

24 mm

注意

Length of connection cables: 30 m without IO-Link on each side; 20 m with IO-Link on the master side

Operating mode

SIO; IO-Link

Cycle time

3.2 ms (min.)

Number of analog inputs

1

通信协议

IO-Link Class A

Number of analog outputs

1

宽度

30 mm

高度

63 mm
