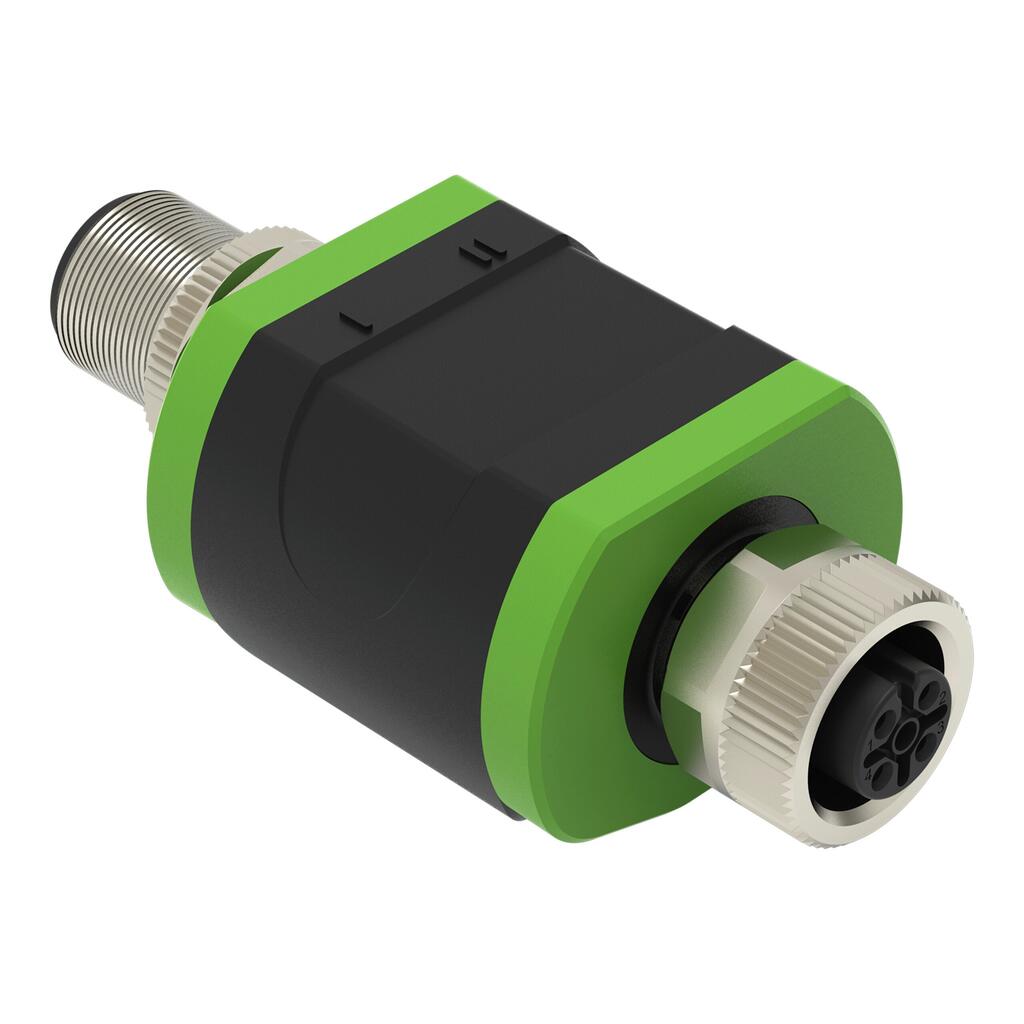

wago 765-2703/200-000

Housing material

PA

质量

91.5g

Connection technology: inputs / outputs

1 x M12-A socket; 5-pole (outputs, double assignment); 1 x M12-A plug; 4-pole (IO-Link)

Ambient temperature (operation)

-25 … +70 °C

Ambient temperature (storage)

-25 … +70 °C

Protection type

IP67

Operating altitude

0 … 4000 m

Pollution degree

2

Conformity marking

CE; UKCA

MTTF

352years

ETIM 9.0

EC001596

ETIM 8.0

EC001596

ECCN

NO US CLASSIFICATION

PU (SPU)

1 pcs

Packaging type

Box

Country of origin

DE

Customs tariff number

85176200000

RoHS Compliance Status

Compliant,No Exemption

Signal type

Current

Parameterizable functions

Application-specific identifier; system identifier; location identifier

Current consumption (max.)

300mA

Accuracy (+25 °C)

0.25 % of output range end value

Indicators

Analog output: 2 x yellow LED; Power: 1 x green LED

Signal type (current)

4 … 20 mA

Load impedance (current output)

≤ 300 Ω

Transmission modes

COM2 (38.4 kBaud)

IO-Link version

1.1

Process data

2 x 16-bit OUT (analog)

Supply voltage

24 VDC (18 … 30 V)

深度

24 mm

注意

Length of connection cables: 20 m

Operating mode

IO-Link

Cycle time

3.6 ms (min.)

通信协议

IO-Link Class A/B

Number of analog outputs

2

宽度

30 mm

高度

63 mm
