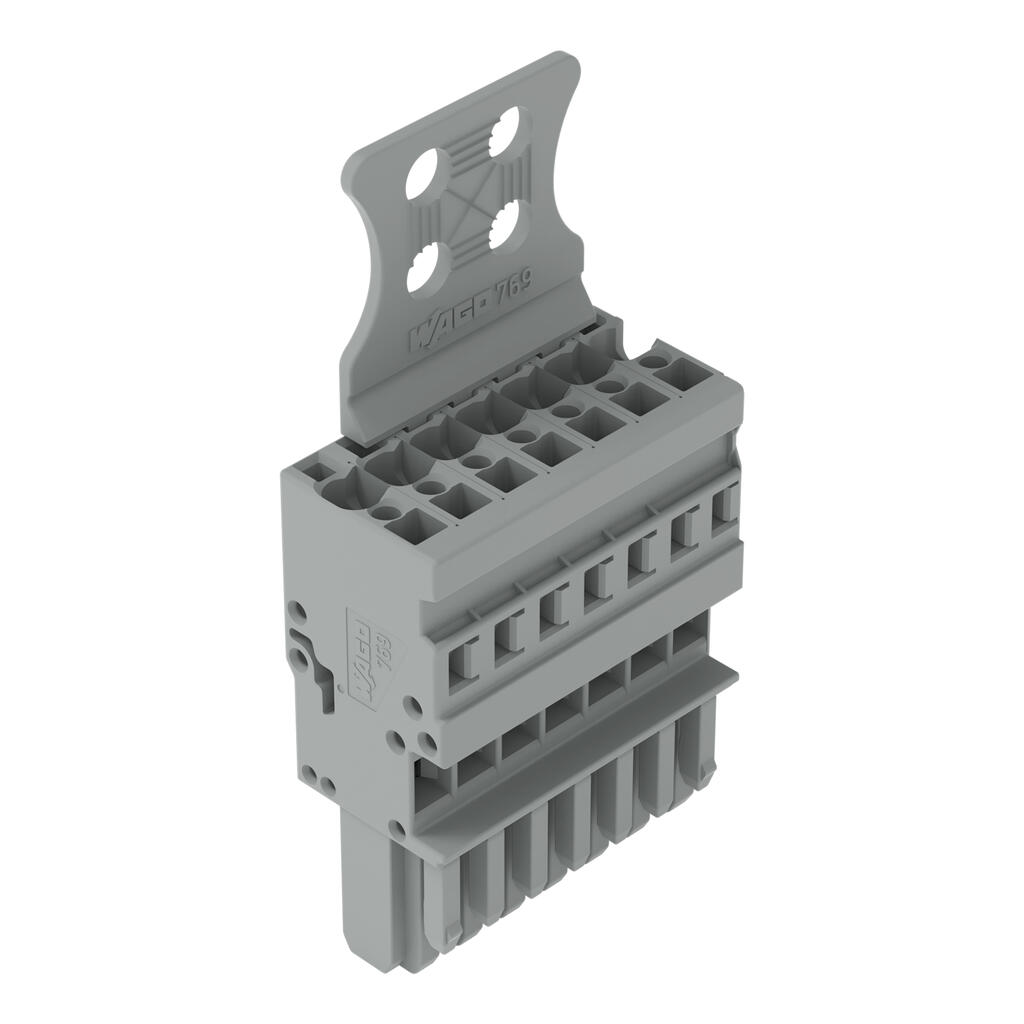

wago 769-107/144-000

质量

23.5g

Wiring direction

Front-entry wiring

Strip length

8 … 9 mm / 0.31 … 0.35 inches

Fine-stranded conductor

0.08 … 4 mm2 / 28 … 12 AWG

Solid conductor

0.08 … 4 mm2 / 28 … 12 AWG

Nominal cross-section

4 mm2 / 12 AWG

Connectable conductor materials

Copper

Actuation type

Operating tool

Connection technology

CAGE CLAMP?

Legend (ratings)

(III / 3) ? Overvoltage category III / Pollution degree 3

Rated impulse voltage (III / 3)

6kV

Rated voltage (III / 3)

500V

Ratings per

IEC/EN 61984

RoHS Compliance Status

Compliant,No Exemption

Customs tariff number

85366990990

GTIN

4066966467642

Country of origin

DE

Packaging type

Box

PU (SPU)

10 pcs

ECCN

NO US CLASSIFICATION

ETIM 8.0

EC001284

ETIM 9.0

EC001284

Continuous operating temperature

-60 … +105 °C

Processing temperature

-35 … +85 °C

Halogen-free

有

Fire load

0.569MJ

Flammability class per UL94

V0

Insulation material (main housing)

Polyamide (PA66)

Material group

I

Note (material data)

Information on material specifications can be found here

Locking lever

有

Mismating protection

无

Connector (connection type)

for conductor

Contact type (pluggable connector)

Female connector/socket

Anti-rotation protection

有

Marking level

Side marking

Direct ground contact to DIN-rail/drilled hole/housing

无

Variable coding

有

Module width

5 mm / 0.197 inches

Height from the surface

55 mm / 2.164 inches

Total number of potentials

7

Clamping units

7

Safety information

According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.

颜色

gray

深度

18.5 mm / 0.728 inches

Number of poles

7

Rated current

32A

Strain relief

Strain relief plate

高度

70 mm / 2.756 inches

宽度

35 mm / 1.378 inches
