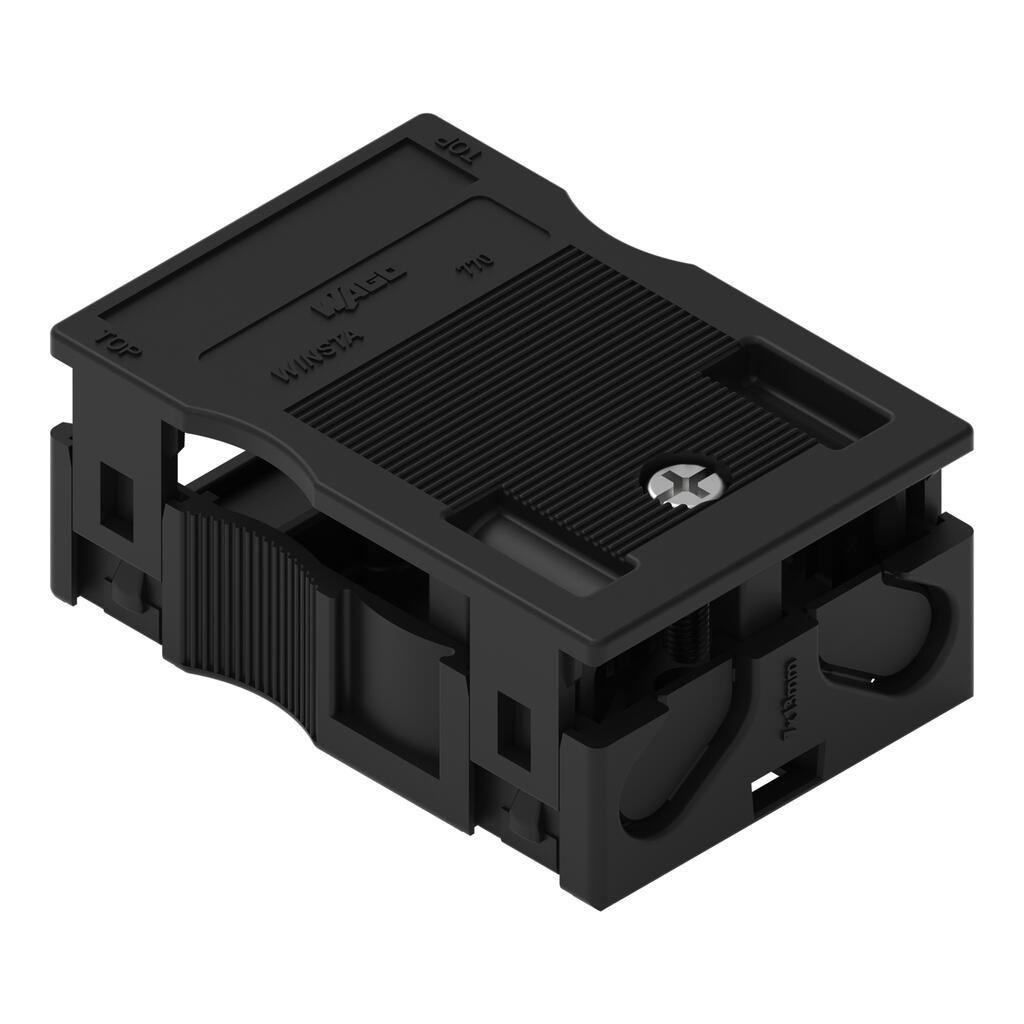

wago 770-503/325-000

质量

10.6g

Packaging type

Box

Country of origin

DE

GTIN

4066966144147

Customs tariff number

85366990990

RoHS Compliance Status

Compliant,No Exemption

Strip length (outer insulation)

55mm

Pin spacing

10 mm / 0.394 inches

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Fire load

0.314MJ

Processing temperature

-5 … +40?°C

Continuous operating temperature

-35 … +85?°C

Note on continuous operating temperature

Insulating parts for temperatures ≤ 105 °C

ECCN

NO US CLASSIFICATION

PU (SPU)

50?pcs

颜色

black

深度

50?mm?/ 1.969?inches

Number of poles

3

宽度

34.6?mm?/ 1.362?inches

高度

15?mm?/ 0.591?inches
