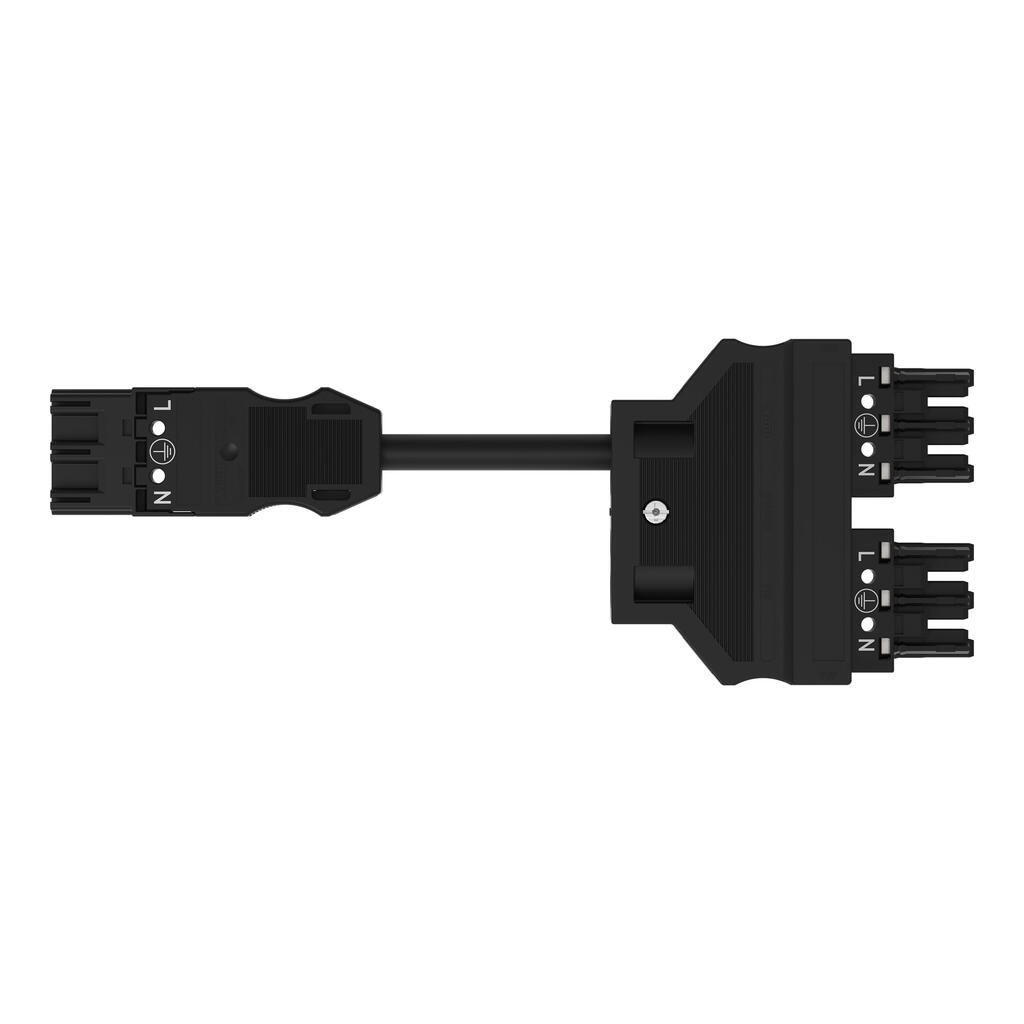

wago 771-5001/296-000

Contact plating

Tin

质量

129.7g

Pin spacing

10?mm?/ 0.394?inches

Coding

A

Variable coding

有

Mating force of a plug-in connection

approx. 20 … 70 N (depending on pole number)

Retention force of a plug-in connection

when locked: > 80N

Unmating force of a plug-in connection

when unlocked: approx. 20 … 70 N (depending on pole number)

Number of mating cycles

200, without resistive load

Type of pre-assembled cable

Y-cable

Cable Types

H05VV-F 3G2.5

Protection type

IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)

Mismating protection

有

Note on mismating protection

AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole

Locking lever

Can be retrofitted

Locking of plug-in connection

Locking lever

Note on locking system

All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).

Note (material data)

Information on material specifications can be found here

Fire class per EN 50575

Eca

Contact Materials

Copper or copper alloy; surface-treated

Fire load

22.421MJ

Printing color of strain relief

white

Sheathed cable color

black

Printing color of sheathed cable

white

Halogen-free

无

Silicon-free

有

Total number of potentials

3

Wire cross-section

2.5mm2

Note on contact resistance

approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket

Legend (ratings)

(III / 3) ? Overvoltage category III / Pollution degree 3

Ratings per

IEC/EN 60664-1

RoHS Compliance Status

Compliant,No Exemption

Customs tariff number

85444290900

GTIN

4066966301991

Country of origin

DE

Packaging type

unpacked

PU (SPU)

1?pcs

ECCN

NO US CLASSIFICATION

ETIM 8.0

EC002587

ETIM 9.0

EC002587

Note on continuous operating temperature

Cable for temperatures ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C

Continuous operating temperature

-35 … +85 °C

Processing temperature

-5 … +40 °C

Rubber cable

无

Sheath material

Halogen-free

颜色

black

注意

Cables with a different fire class can be found in the eShop.

Rated current

20A

Total length

0.5m

宽度

72?mm?/ 2.835?inches

高度

16.8?mm?/ 0.661?inches
