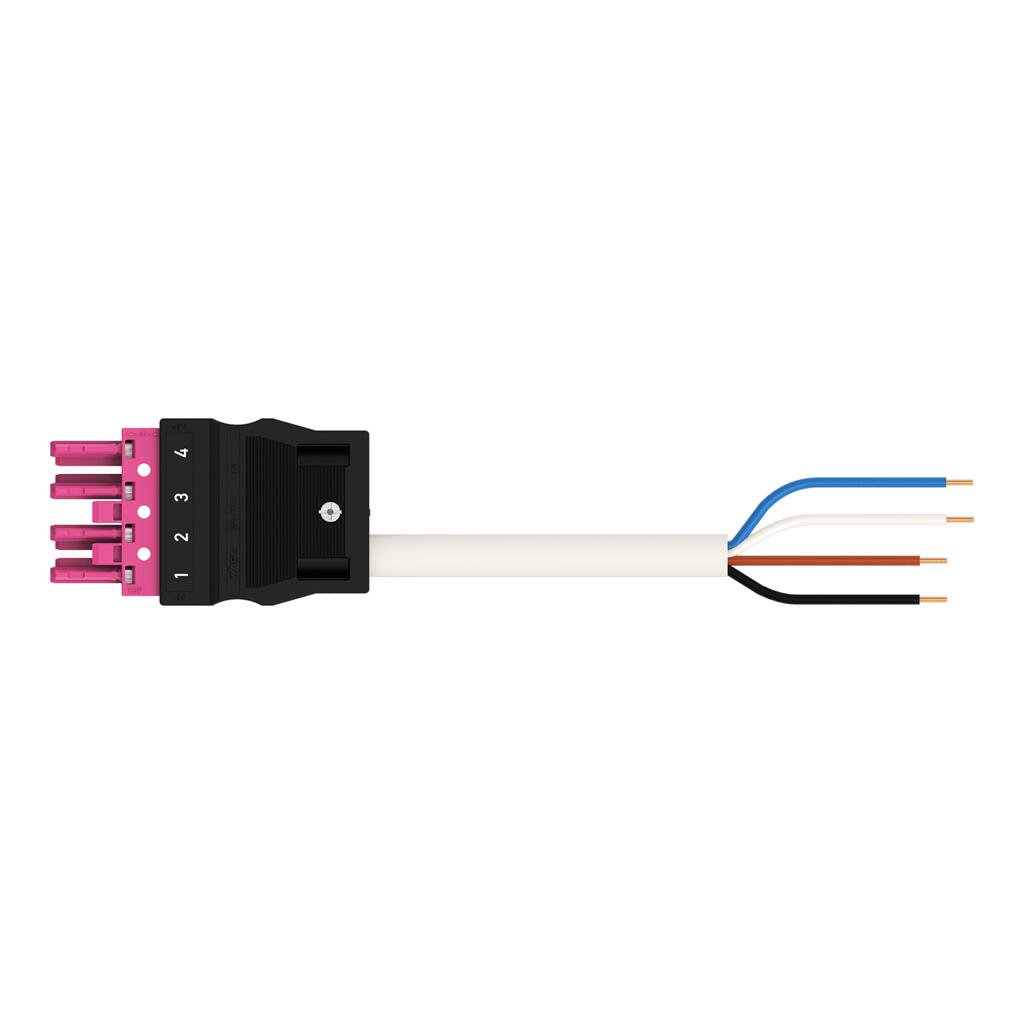

wago 771-5002/2023-401

Contact plating

Tin

质量

384.8g

Variants

Other pole markings

Total number of potentials

4

Conductor preparation

ultrasonically tip-bonded

Pin spacing

10 mm / 0.394 inches

Use

Control technology

Coding

B

Variable coding

有

Marking

1 2 3 4

Potential Marking

1 2 3 4

Mating force of a plug-in connection

approx. 20 … 70 N (depending on pole number)

Retention force of a plug-in connection

when locked: > 80N

Continuous operating temperature

-35 … +85 °C

Note on continuous operating temperature

Cable for temperatures ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C

ETIM 9.0

EC002587

ETIM 8.0

EC002587

ECCN

NO US CLASSIFICATION

PU (SPU)

1 pcs

Packaging type

unpacked

Country of origin

DE

GTIN

4066966432671

Customs tariff number

85444290900

RoHS Compliance Status

Compliant,No Exemption

Ratings per

IEC/EN 60664-1

Rated voltage (III / 3)

400V

Rated impulse voltage (III / 3)

6kV

Legend (ratings)

(III / 3) ? Overvoltage category III / Pollution degree 3

Note on contact resistance

approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket

Strip length

9 mm / 0.35 inches

Wire cross-section

1.5mm2

Strip length (outer insulation)

55mm

Processing temperature

-5 … +40 °C

Copper weight of the pipe

0.058kg/m

Rubber cable

无

Sheath material

PVC

Silicon-free

有

Halogen-free

无

Printing color of sheathed cable

black

Sheathed cable color

white

Strain relief color

black

Connector color

pink

Fire load

0.613MJ

Contact Materials

Copper or copper alloy; surface-treated

Fire class per EN 50575

Cca

Note (material data)

Information on material specifications can be found here

Note on locking system

All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).

Locking of plug-in connection

Locking lever

Locking lever

Can be retrofitted

Note on mismating protection

AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole

Mismating protection

有

Protection type

IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)

Cable Types

Control line 4x1.5

Type of pre-assembled cable

Connecting cable

Number of mating cycles

200, without resistive load

Unmating force of a plug-in connection

when unlocked: approx. 20 … 70 N (depending on pole number)

注意

Cables with a different fire class can be found in the eShop.

Number of poles

4

Rated current

16A

Connection type

Plug - free end

Total length

4m

宽度

44.6 mm / 1.756 inches

高度

17 mm / 0.669 inches
