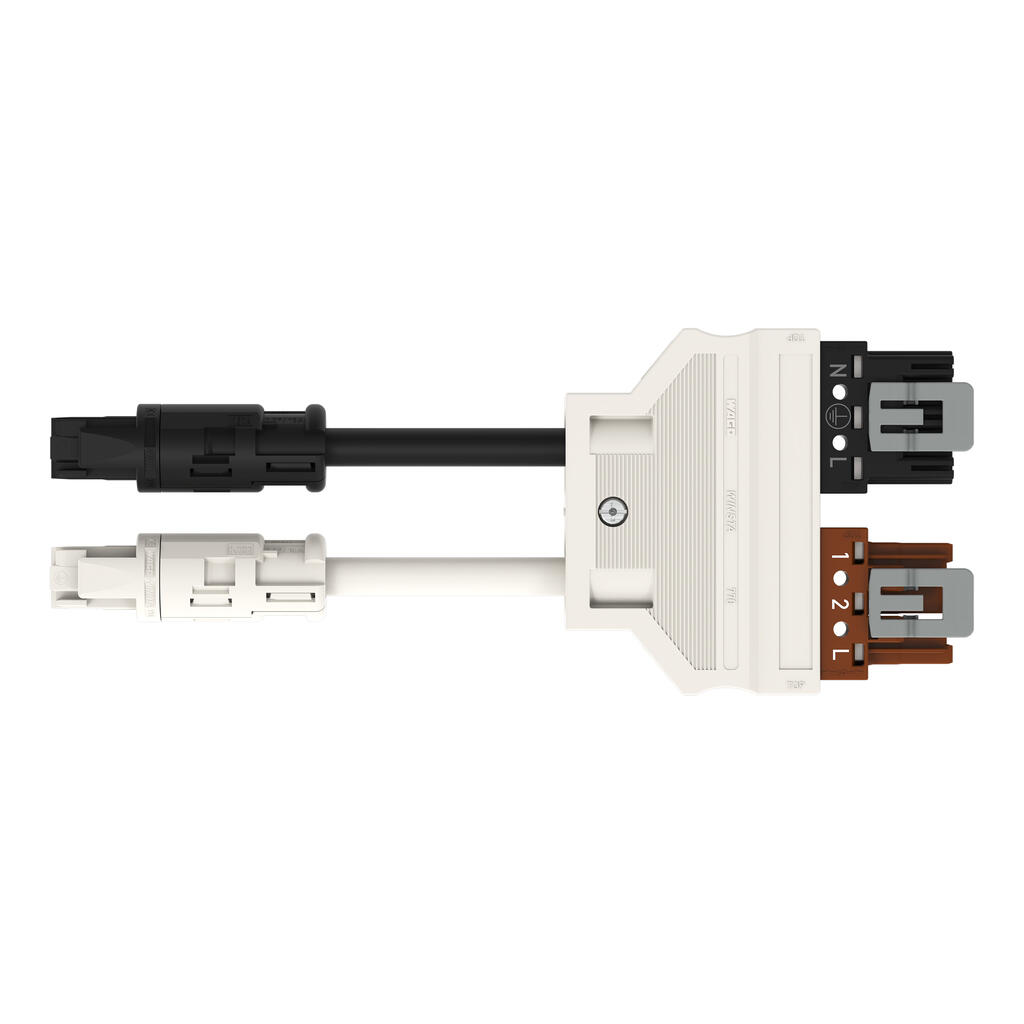

wago 774-5001/102-000

Contact plating

Tin

质量

150.3g

Total number of potentials

4

Pin spacing

10?mm?/ 0.394?inches

Use

General mains applications

Coding

A

Coding 2

A

Variable coding

有

Marking

L ? N

Mating force of a plug-in connection

Approx. 30 … 70 N (depending on pole number)

Retention force of a plug-in connection

when locked: > 80N

Unmating force of a plug-in connection

Unlocked: approx. 30 … 70 N (depending on pole number)

Number of mating cycles

200, without resistive load

Type of pre-assembled cable

Y-cable

Cable Types

H05VV-F 3G2.5

Cable type 2

H05VV-F 3G1.5

Protection type

IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)

Mismating protection

有

Note on mismating protection

AllWINSTA?components are 100% protected against mismating ?when:a.) plugging different numbers of polesb.) plugging while incorrectly rotatedc.) plugging while laterally staggered

Locking of plug-in connection

Locking lever

Note (material data)

Information on material specifications can be found here

Fire class per EN 50575

Eca

Contact Materials

Copper or copper alloy; surface-treated

Fire load

25.722MJ

Connector color

black

Printing color of mating face

white

Strain relief color

black

Connector color 2

white

Strain relief color 2

white

Connector color 3

black

Strain relief color 3

black

Connector color 4

brown

Sheathed cable color

black

Printing color of sheathed cable

white

Sheathed cable color 2

white

Printing color of sheathed cable 2

black

Halogen-free

无

Silicon-free

有

Sheath material

PVC

Rubber cable

无

Copper weight of the pipe

0.043kg/m

Processing temperature

-5 … +40 °C

Continuous operating temperature

-35 … +85 °C

Note on continuous operating temperature

Cable for temperatures ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C

ETIM 9.0

EC002587

ETIM 8.0

EC002587

ECCN

NO US CLASSIFICATION

PU (SPU)

1?pcs

Packaging type

unpacked

Country of origin

DE

GTIN

4066966302264

Customs tariff number

85444290900

RoHS Compliance Status

Compliant,No Exemption

Ratings per

IEC/EN 60664-1

Rated voltage (III / 3)

250V

Rated impulse voltage (III / 3)

4kV

Legend (ratings)

(III / 3) ? Overvoltage category III / Pollution degree 3

Note on contact resistance

approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket

Wire cross-section

2.5mm2

Pole number (2)

3

Sheathed cable diameter 2

7.4 … 9.4?mm

Wire cross-section (2)

1.5mm2

Pole number (3)

3

Pole number (4)

3

注意

Cables with a different fire class can be found in the eShop.

Number of poles

3

Rated current

16A

Connection type

RD socket;?RD socket - MIDI plug;?MIDI socket

Total length

0.4m

宽度

72?mm?/ 2.835?inches

高度

17.5?mm?/ 0.689?inches
