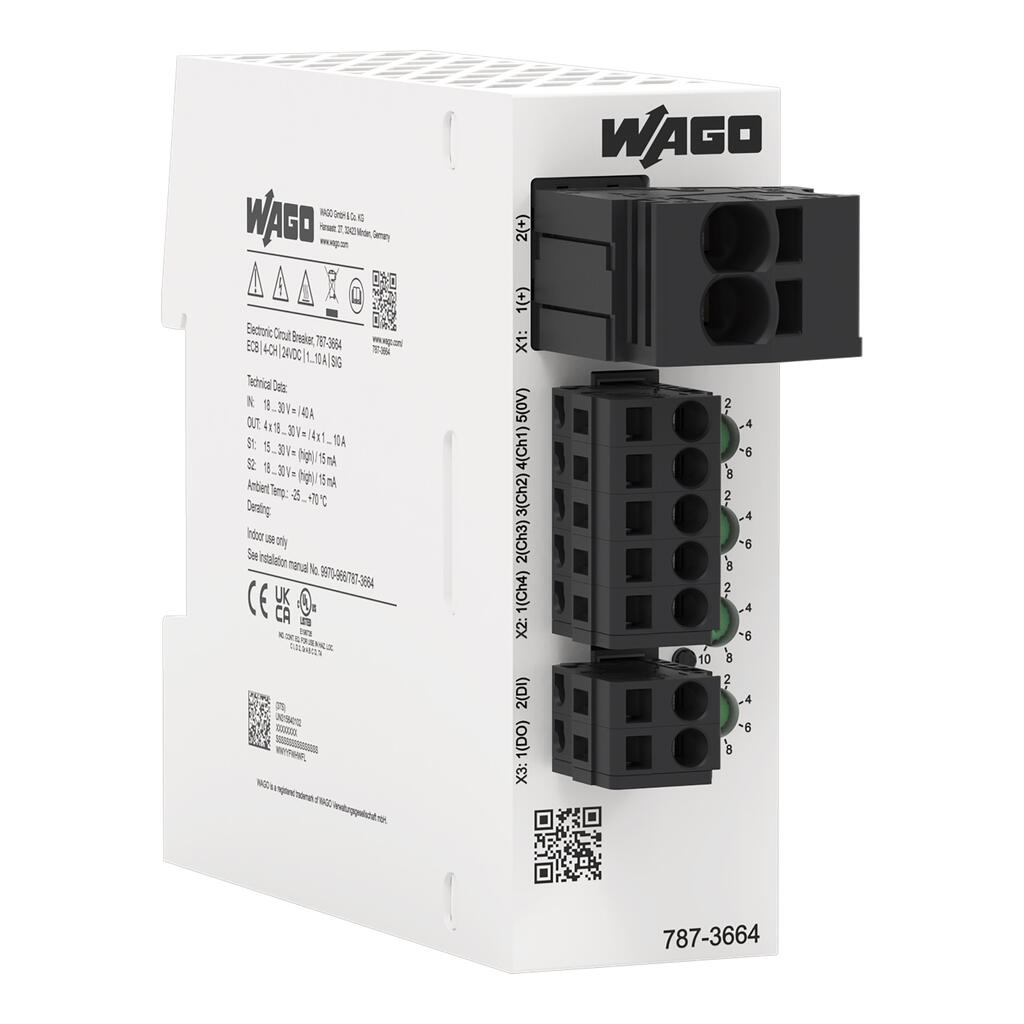

wago 787-3664

Mounting type

DIN-35 rail

质量

152.2g

Isolation voltage (connectors – housing)

DC 0.5 kV

Protection class

III

Protection type

IP20; per EN 60529

Reverse voltage protection

无

Resistance to reverse feed

≤ DC 35 V

Pollution degree

2

Transient suppression (primary)

Suppressor diode (33 V)

Parallel operation of single channels

Permissible

Series operation

无

Connection type 1

Input (+)

Connection technology

Push-in CAGE CLAMP?

WAGO connector

WAGO 831 Series

Solid conductor

0.5 … 10 mm2 / 20 … 8 AWG

Fine-stranded conductor

0.5 … 10 mm2 / 20 … 8 AWG

Strip length

13 … 15 mm / 0.51 … 0.59 inches

Connection type 2

Input (–); output; signaling

Connection technology 2

CAGE CLAMP?

WAGO connector 2

WAGO 231 Series

Solid conductor 2

0.08 … 2.5 mm2 / 28 … 12 AWG

Fine-stranded conductor 2

0.08 … 2.5 mm2 / 28 … 12 AWG

Strip length 2

8 … 9 mm / 0.31 … 0.35 inches

Depth from upper-edge of DIN-rail

117.5 mm / 4.626 inches

Fire load

2.444MJ

Ambient temperature (operation)

-25 … +70 °C

Ambient temperature (storage)

-25 … +85 °C

Relative humidity

5 … 96 % (no condensation permissible)

Derating

≥ 50 °C (see instruction manual)

Conformity marking

CE

Standards/specifications

EN 61000-6-2

ETIM 9.0

EC001440

ETIM 8.0

EC001440

ECCN

NO US CLASSIFICATION

PU (SPU)

1 pcs

Packaging type

Box

Country of origin

IN

Customs tariff number

85363010900

CAS-No.

11120-22-2

REACH Candidate List Substance

Diboron trioxide

RoHS Compliance Status

Compliant,With Exemption

RoHS Exemption

6(c)

SCIP notification number (Austria)

770d0258-4fab-4b14-9c3b-8c07d2a2de62

SCIP notification number (Belgium)

808de5c5-bfd4-463b-a91a-1d79bdd2a549

SCIP notification number (Bulgaria)

fd5ee284-c087-4d01-b003-b36bc59328d9

SCIP notification number (Czech Republic)

086b0409-eaf9-4fa5-9cfc-8fa3f2633649

SCIP notification number (Denmark)

ccd5ad61-d492-409c-838b-006109b18149

SCIP notification number (Finland)

03978a26-1fb5-4c30-ba89-22c9c9249c5a

SCIP notification number (France)

89cbabec-d00c-4dfc-9803-bb5c106334f0

SCIP notification number (Germany)

06760d83-7273-42a9-9ce9-07ddd1817cc1

SCIP notification number (Hungary)

01a51be0-50c4-48ef-8dd7-25d668e6ac5f

SCIP notification number (Italy)

a0f3a029-f535-4074-b652-0920bdb89b42

SCIP notification number (Netherlands)

7f04007f-93e7-47a7-8896-cb44a0762e97

SCIP notification number (Poland)

d9c6557a-34e9-431c-8ea4-73801fdf7ed0

SCIP notification number (Romania)

376f4cf4-ede3-498d-9624-ae3494364574

SCIP notification number (Sweden)

68a94c82-e3c9-4324-87cb-112be317bd67

Nominal input voltage [V]

DC 24 V

Input voltage range

DC 18 … 30 V

Nominal output voltage [V]

4 x DC 24 V

Voltage drop

≤ 250 mV (Input (+))

Nominal output current I_{o nom}

4 x 1 / 2 / 4 / 6 / 8 / 10 A (adjustable for each channel via selector switch)

Default setting

DC 1 A; switched off

Trip time

16 ms … 100 s (load-dependent)

Switch-on capacity

> 50000 μF per channel

Switch-on behavior

Time-delayed channel switching (load-dependent, min. 50 ms / max. 10 s)

Active current limitation

无

Current limitation

无

Signaling

4 x LED (green/red/orange)

Operation status indicator

Green LED (channel OK)

Remote input

Reactivation of all tripped channels via 15 … 30 VDC pulse for min. 500 ms

Power loss P_l

≤ 0.84 W; ≤ 10 W (4 x 10 A)

Efficiency (typ.)

98 %

Internal fuse

T 12 A per channel

通道数量

4

Output voltage range

DC 18 … 30 V (Ue? voltage drop)

宽度

32 mm / 1.26 inches

高度

95 mm / 3.74 inches
