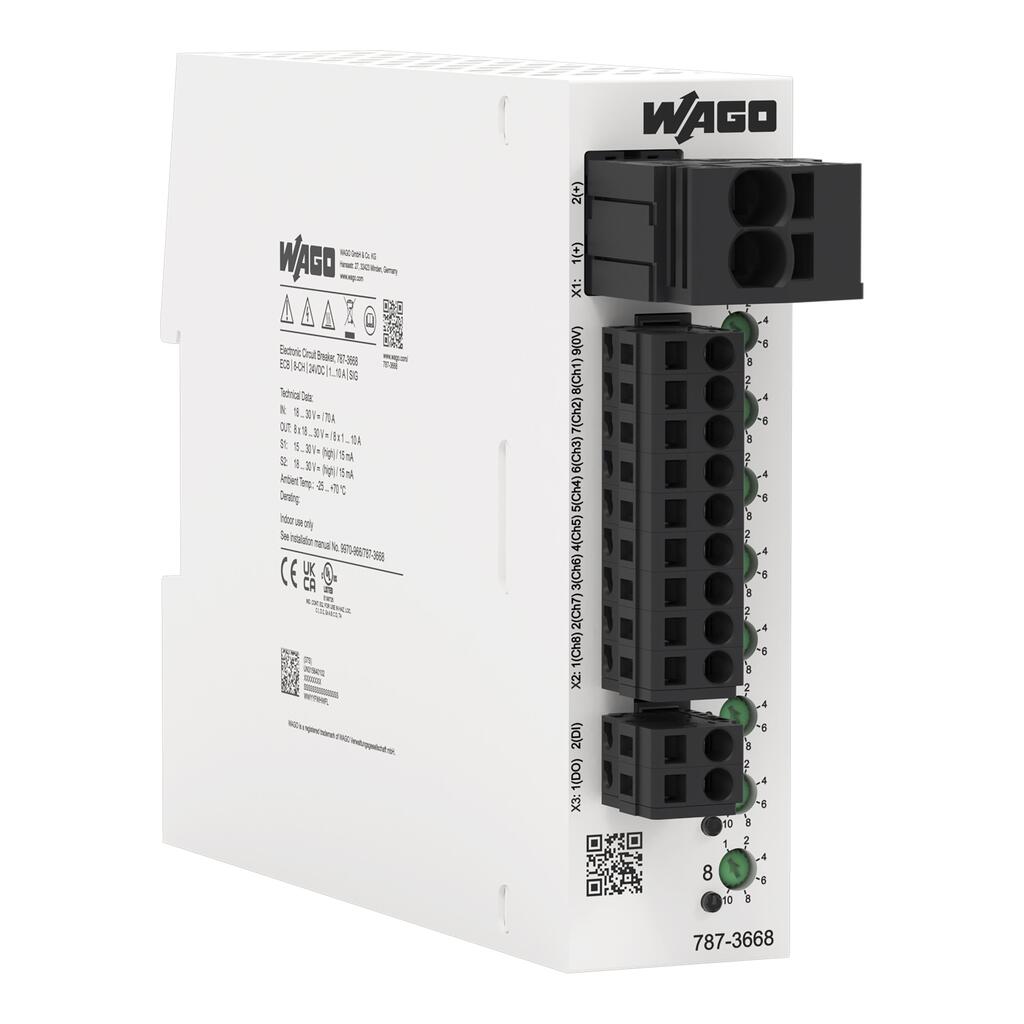

wago 787-3668

Mounting type

DIN-35 rail

质量

250.3g

Isolation voltage (connectors – housing)

DC 0.5 kV

Protection class

III

Protection type

IP20; per EN 60529

Reverse voltage protection

无

Resistance to reverse feed

≤ DC 35 V

Pollution degree

2

Transient suppression (primary)

Suppressor diode (33 V)

Parallel operation of single channels

Permissible

Series operation

无

Connection type 1

Input (+)

Connection technology

Push-in CAGE CLAMP?

WAGO connector

WAGO 831 Series

Solid conductor

0.5 … 10 mm2 / 20 … 8 AWG

Fine-stranded conductor

0.5 … 10 mm2 / 20 … 8 AWG

Strip length

13 … 15 mm / 0.51 … 0.59 inches

Connection type 2

Input (–); output; signaling

Connection technology 2

CAGE CLAMP?

WAGO connector 2

WAGO 231 Series

Solid conductor 2

0.08 … 2.5 mm2 / 28 … 12 AWG

Fine-stranded conductor 2

0.08 … 2.5 mm2 / 28 … 12 AWG

Strip length 2

8 … 9 mm / 0.31 … 0.35 inches

Depth from upper-edge of DIN-rail

157.5 mm / 6.2 inches

Fire load

4.018MJ

Ambient temperature (operation)

-25 … +70 °C

Ambient temperature (storage)

-25 … +85 °C

Relative humidity

5 … 96 % (no condensation permissible)

Derating

≥ 50 °C (see instruction manual)

Conformity marking

CE

Standards/specifications

EN 61000-6-2

ETIM 9.0

EC001440

ETIM 8.0

EC001440

ECCN

NO US CLASSIFICATION

PU (SPU)

1 pcs

Packaging type

Box

Country of origin

IN

Customs tariff number

85363010900

CAS-No.

11120-22-2

REACH Candidate List Substance

Diboron trioxide

RoHS Compliance Status

Compliant,With Exemption

RoHS Exemption

6(c)

SCIP notification number (Austria)

1b096b43-55d6-42ac-9e27-a729b6c0f24a

SCIP notification number (Belgium)

0e72ed8b-ad22-44d0-bc63-2ccf12256009

SCIP notification number (Bulgaria)

129ec3e7-f34c-488e-88a9-23d5952da89d

SCIP notification number (Czech Republic)

c261144b-a59d-4439-b19b-452377eabd1f

SCIP notification number (Denmark)

2298a4f3-869c-43c3-a0cb-9b1424c4be1f

SCIP notification number (Finland)

6bbd5b85-da4c-40a0-bb96-ceb614172ee8

SCIP notification number (France)

7ac1a503-2246-4ca5-b5f5-00c27a0a8304

SCIP notification number (Germany)

505b9f67-7fd3-4b05-9418-2d3f2e18513b

SCIP notification number (Hungary)

5201706a-78d1-44ca-b7ba-4feaddb56194

SCIP notification number (Italy)

82097060-cc58-46c7-98d3-0e3ea1a7dd78

SCIP notification number (Netherlands)

ccc2cd1c-27b1-4300-957f-61c13a6e0243

SCIP notification number (Poland)

ca9ae455-3a43-453c-a133-f7eec5b3449f

SCIP notification number (Romania)

6159b594-e5c2-4f48-9bb8-2ff4e8d4b6e0

SCIP notification number (Sweden)

840aee4b-fc81-4c48-8cbb-dde2a9cab069

Nominal input voltage [V]

DC 24 V

Input voltage range

DC 18 … 30 V

Nominal output voltage [V]

8 x DC 24 V

Voltage drop

≤ 250 mV (Input (+))

Nominal output current I_{o nom}

8 x 1 / 2 / 4 / 6 / 8 / 10 A (adjustable for each channel via selector switch)

Default setting

DC 1 A; switched on

Trip time

16 ms … 100 s (load-dependent)

Switch-on capacity

> 50000 μF per channel

Switch-on behavior

Time-delayed channel switching (load-dependent, min. 50 ms / max. 10 s)

Active current limitation

无

Current limitation

无

Signaling

8 x LED (green/red/orange)

Operation status indicator

Green LED (channel OK)

Remote input

Reactivation of all tripped channels via 15 … 30 VDC pulse for min. 500 ms

Power loss P_l

≤ 1.6 W; ≤ 20 W (8 x 10 A)

Efficiency (typ.)

98 %

Internal fuse

T 12 A per channel

通道数量

8

Output voltage range

DC 18 … 30 V (Ue? voltage drop)

宽度

32 mm / 1.26 inches

高度

115 mm / 4.527 inches
