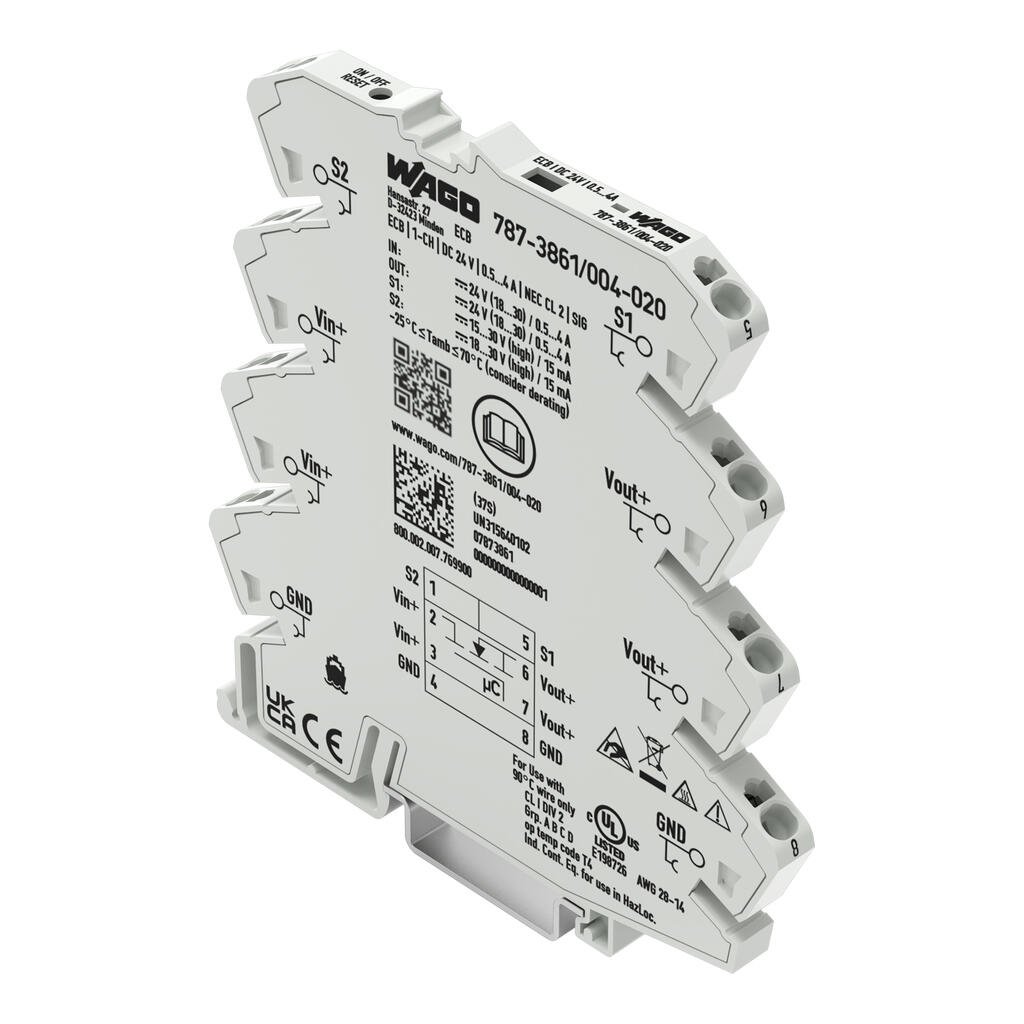

wago 787-3861/004-020

Mounting type

DIN-35 rail

质量

55.7g

Isolation voltage (connectors – housing)

DC 1.5?kV

Protection class

III

Protection type

IP20; per EN 60529

Reverse voltage protection

无

Transient suppression (primary)

Suppressor diode (33 V)

Parallel operation of single channels

Not permitted

Series operation

无

MTBF

807,840 h

Number of jumper slots

8

Connection technology

Push-in CAGE CLAMP?

WAGO connector

WAGO 857 Series

Solid conductor

0.08 … 2.5?mm2?/ 26 … 14?AWG

Fine-stranded conductor

0.34 … 2.5?mm2?/ 22 … 14?AWG

Strip length

9 … 10?mm?/ 0.35 … 0.39?inches

Note (conductor cross-section)

Depending on the output current, use the conductor cross-sections tested and approved by UL:26 … 14 AWG (0.5 A);24 … 14 AWG (1 A / 1.5 A);22 … 14 AWG (2 A / 2.5 A);20 … 14 AWG (3 A / 3.5 A / 4 A)

Depth from upper-edge of DIN-rail

97.8 mm / 3.85 inches

Fire load

0.634MJ

Ambient temperature (operation)

-25 … +70 °C

Ambient temperature (storage)

-40 … +85 °C

Relative humidity

10 … 95?% (no condensation permissible)

Derating

No derating

Operating altitude

≤ 2000 m (a.s.l.)

Conformity marking

CE; UKCA

Standards/specifications

EN 61000-6-2

ETIM 9.0

EC001440

ETIM 8.0

EC001440

ECCN

NO US CLASSIFICATION

PU (SPU)

1 pcs

Packaging type

Bag

Country of origin

IN

Customs tariff number

85363010900

CAS-No.

11120-22-2

REACH Candidate List Substance

Diboron trioxide

RoHS Compliance Status

Compliant,With Exemption

RoHS Exemption

6(c)

SCIP notification number (Austria)

182a37ec-835c-4398-8a34-26201cdd647d

SCIP notification number (Belgium)

7be3cd1c-81db-4697-a0e7-4510af4b0fd3

SCIP notification number (Bulgaria)

ace2344b-cece-40e9-838e-5420ff7f06d3

SCIP notification number (Czech Republic)

eb7d500a-09ae-4c68-b0e6-cf5de11bb5a3

SCIP notification number (Denmark)

2fe76880-4391-4e7f-b43f-312ea576f7ac

SCIP notification number (Finland)

5412f2c7-19e9-475b-820c-724a74597644

SCIP notification number (France)

1b5214de-93ad-4cba-819d-9eeab6e2f665

SCIP notification number (Germany)

eaba3ebe-87e7-4c03-b934-cf6d6de9d5ad

SCIP notification number (Hungary)

b81f3d60-9a87-43f6-9087-58886bf6fc11

SCIP notification number (Italy)

80f1784f-8ca8-4cda-914f-12cbdee804ee

SCIP notification number (Netherlands)

d630cf8b-2fe9-47a8-80dd-96dd379b2c2d

SCIP notification number (Poland)

efb9155f-9a6d-451d-9a46-a31631f587ae

SCIP notification number (Romania)

a2c30a36-126b-4e67-a159-9409a10010f4

SCIP notification number (Sweden)

585b6e14-60b3-4a80-b3b2-05e4b69c9b39

Nominal input voltage [V]

DC?24?V

Input voltage range

DC 18 … 30 V

Nominal output voltage [V]

1 x DC?24?V

Voltage drop

≤ 40 mV (0.5 A); ≤ 80 mV (1 A); ≤ 120 mV (1.5 A); ≤ 160 mV (2 A); ≤ 200 mV (2.5 A); ≤ 240 mV (3 A); ≤ 280 mV (3.5 A); ≤ 320 mV (4 A)

Nominal output current I_{o nom}

1 x 0.5 / 1 / 1.5 / 2 / 2.5 / 3 / 3.5 / 4?A (adjustable)

Default setting

DC?0.5?A;?switched off

Trip time

10 ms … 90 s (load-dependent)

Switch-on capacity

>?50000?μF?(see instruction manual)

Switch-on behavior

Time-delayed channel switching (load-dependent, min. 0 ms/max. 500 ms)

Current limitation

无

Signaling

1 x Status LED (green/yellow/red)

Operation status indicator

Green LED (channel OK)

Remote input

1 x Control input (15 … 30 VDC (active high); 0 … 5 VDC (active low); max. 0.015 A)

Power loss P_l

≤ 0.4 W (no load)

Efficiency (typ.)

98?%

Internal fuse

T 8 A

Overvoltage category

II

Pollution degree

2

注意

The device is designed for use in SELV circuits.

通道数量

1

Output voltage range

DC 18 … 30?V?(Ue? voltage drop)

宽度

6?mm?/ 0.236?inches

高度

94 mm / 3.701 inches
